Model 94 carrier
Avatar
OverUnder725
Member
WACA Guest
Forum Posts: 7
Member Since:
March 26, 2015
sp_UserOfflineSmall Offline
1
April 10, 2015 - 1:11 am
sp_Permalink sp_Print

I have just acquired a model 94 in .30 WCF manufactured in 1898.  I had noticed when looking at the rifle before I bought it that when the action was cycled the shell carrier would sometimes not lift.  I attributed this to years of crud and neglect.  Now that every thing has been cleaned up, the carrier lifts but requires a fairly firm cycle of the action to get it to pop up.  If you cycle the action slowly, it will stop before the carrier pops up and you have to give the lever a bump to make it actuate.  Is this consistent with this model or should I be looking for a specific worn component?

Avatar
1892takedown
South Texas
Member
WACA Member
Forum Posts: 1099
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
2
April 10, 2015 - 4:38 am
sp_Permalink sp_Print sp_EditHistory

It sounds like it could be one or two things:  1) the carrier spring is worn out, 2) the carrier, where the carrier spring engages the carrier, is worn (or it could be both the carrier spring and carrier that are worn out).  Most likely will be the carrier spring is worn or weak.  Ive had this happen before and replaced with original parts.  You can find a carrier or carrier spring on gunbroker.com or ebay.


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
1892takedown
South Texas
Member
WACA Member
Forum Posts: 1099
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
3
April 10, 2015 - 4:46 am
sp_Permalink sp_Print sp_EditHistory

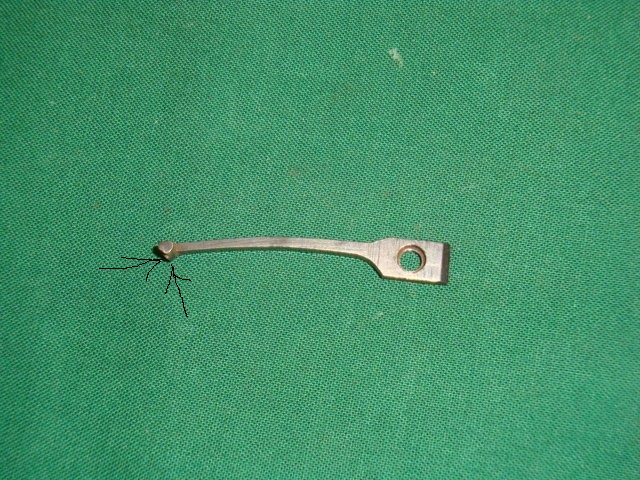

Here is a pic of a carrier spring for sale online but this one has some wear on it (see arrows pointing to wear).  The area indicated should form a sharp triangular shaped face across its length. (Click on the image to view)


sp_PlupAttachments Attachments


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
OverUnder725
Member
WACA Guest
Forum Posts: 7
Member Since:
March 26, 2015
sp_UserOfflineSmall Offline
4
April 10, 2015 - 5:48 am
sp_Permalink sp_Print

That is one of the pieces I did not remove from the receiver.  I will take a it our tomorrow and see how it looks.  Thanks!

Avatar
OverUnder725
Member
WACA Guest
Forum Posts: 7
Member Since:
March 26, 2015
sp_UserOfflineSmall Offline
5
April 10, 2015 - 5:57 pm
sp_Permalink sp_Print sp_EditHistory

Here is a picture of the carrier spring.  It does show wear.  There is a gun show this weekend and I will be on the look out for one in better condition.



http://i986.photobucket.com/albums/ae347/BDomney/Model%201894/carrier%20spring.jpg

Avatar
1892takedown
South Texas
Member
WACA Member
Forum Posts: 1099
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
6
April 11, 2015 - 3:50 am
sp_Permalink sp_Print

That one doesnt look too bad from what I can see.  Most, if not all, that you find will be used.  For $10-15 its worth a shot (at least that is what I think they are bringing these days, maybe a little more if the screw is included)

Chris


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
OverUnder725
Member
WACA Guest
Forum Posts: 7
Member Since:
March 26, 2015
sp_UserOfflineSmall Offline
7
April 11, 2015 - 4:57 am
sp_Permalink sp_Print

After I took the picture I put it back together and loaded some snap caps in it and cycled it a few times. I guess it’s naybe not as bad as I had thought. I have nothing to compare it to. I was expecting it to be effortless I suppose. I will still keep an eye out for one tomorrow at the show I’m going to. I may even look for another carbine to bring home.
