Special order stamping numbers
Avatar
rogertherelic
Santa Clara, CA
Member
WACA Member
Forum Posts: 926
Member Since:
January 27, 1992
sp_UserOfflineSmall Offline
1
February 10, 2023 - 7:46 pm
sp_Permalink sp_Print sp_EditHistory

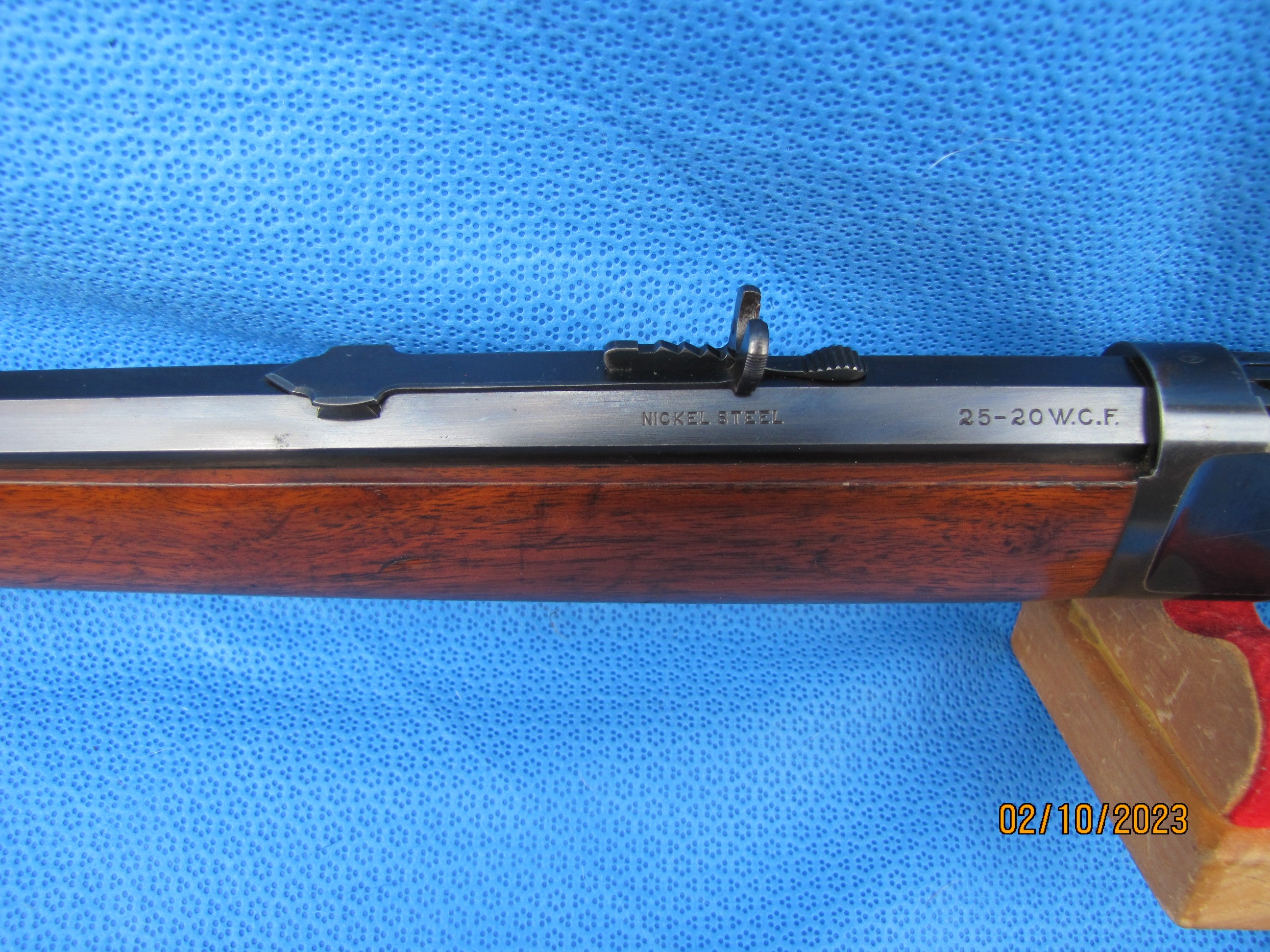

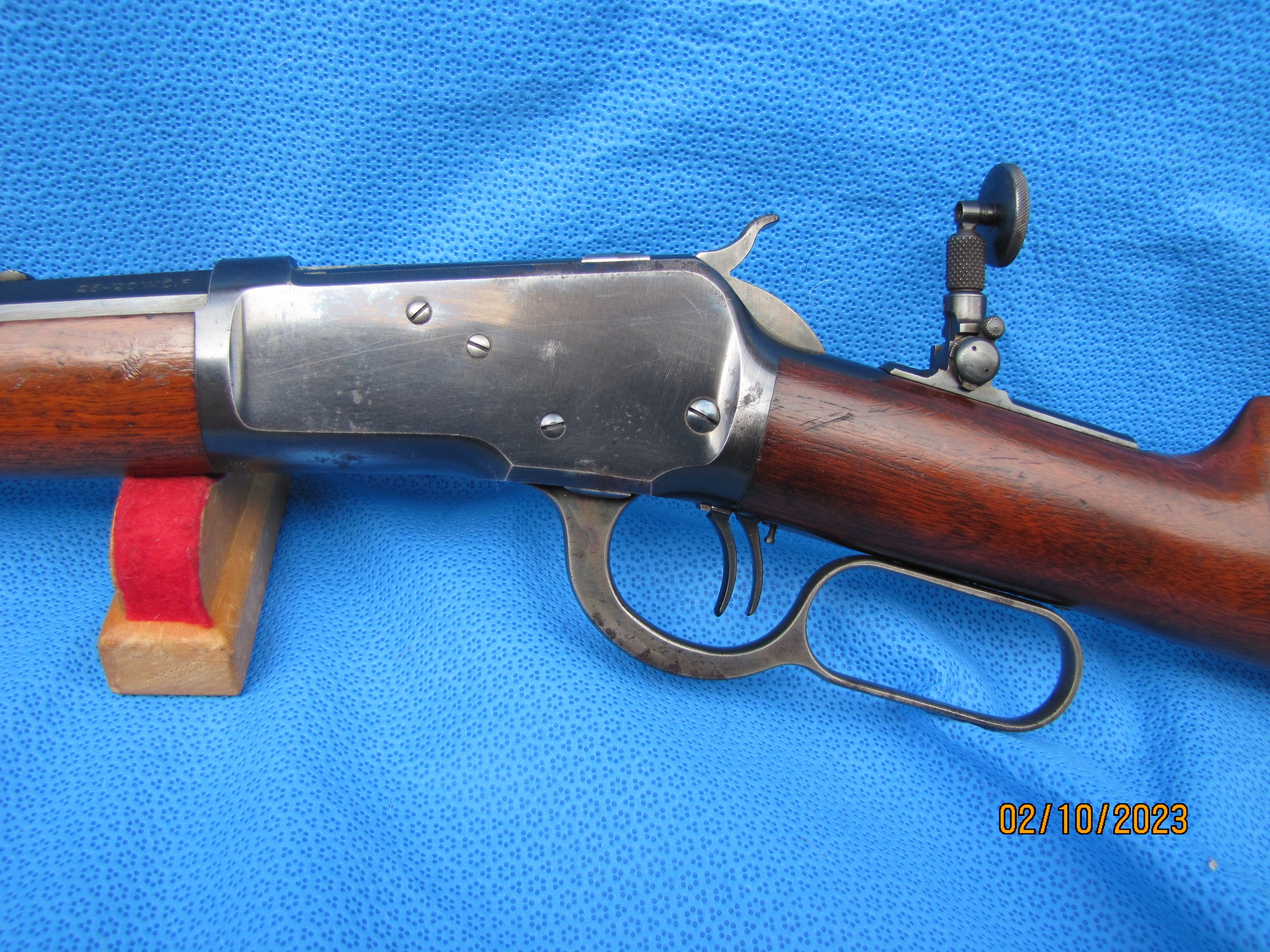

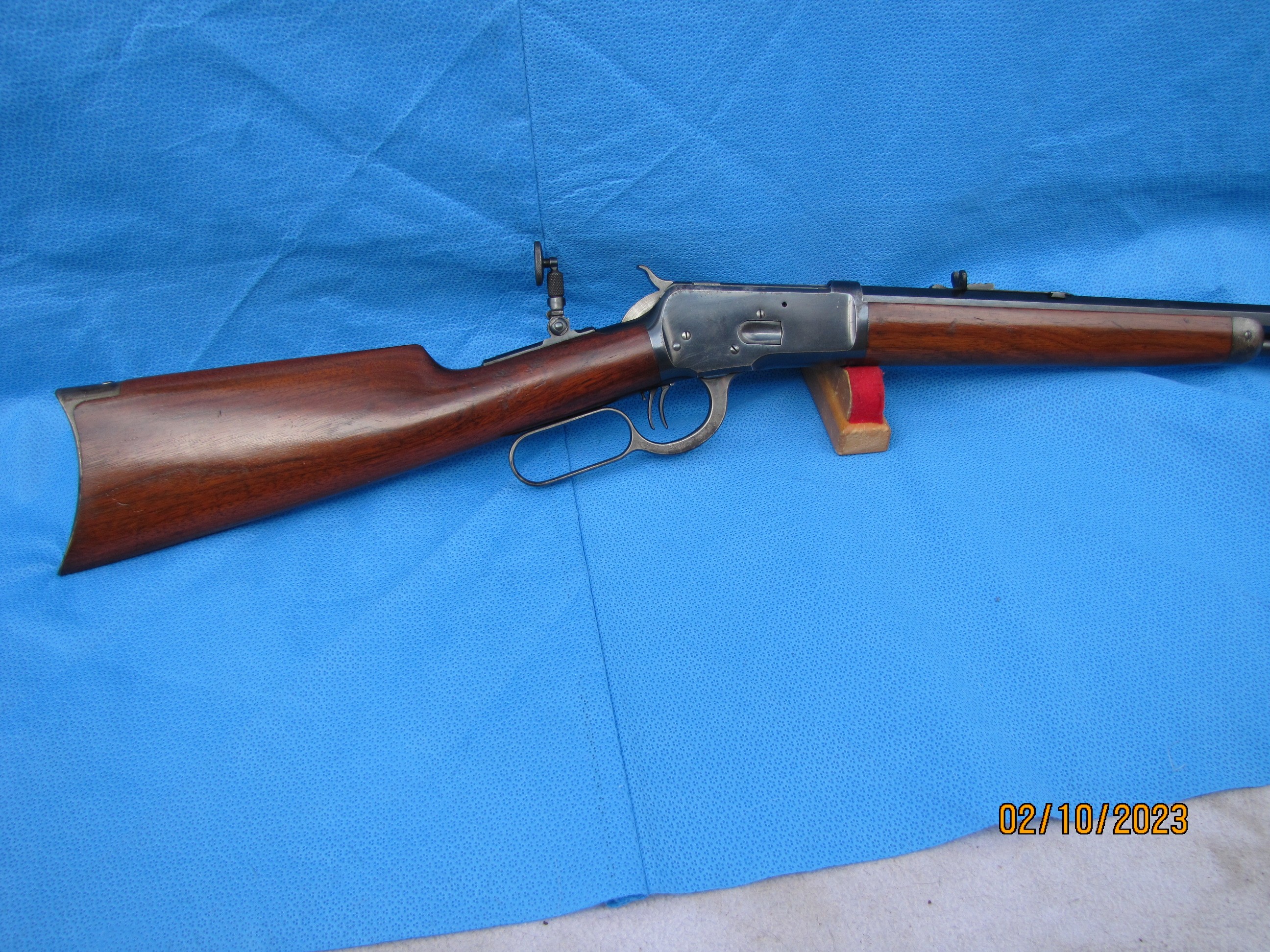

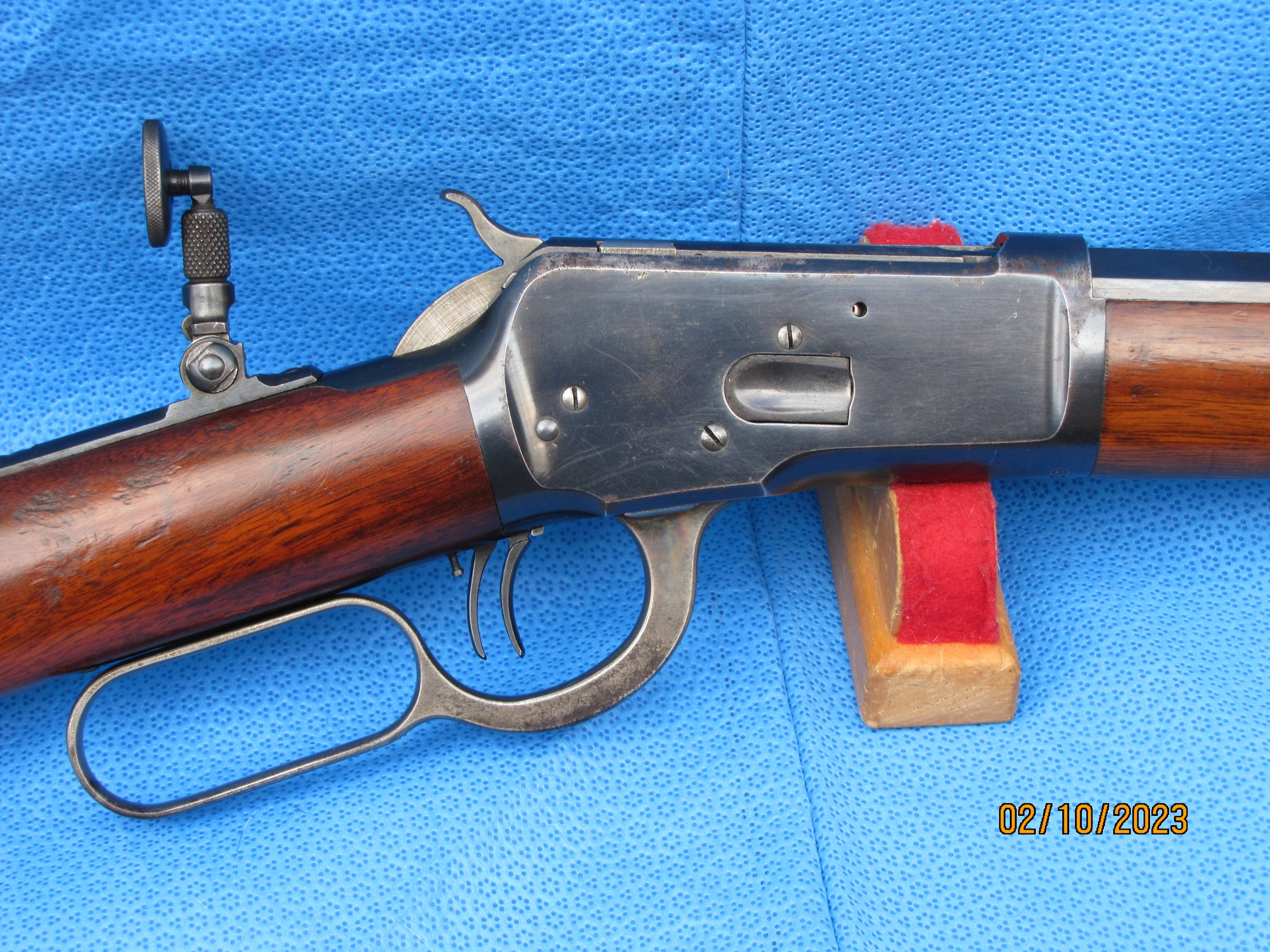

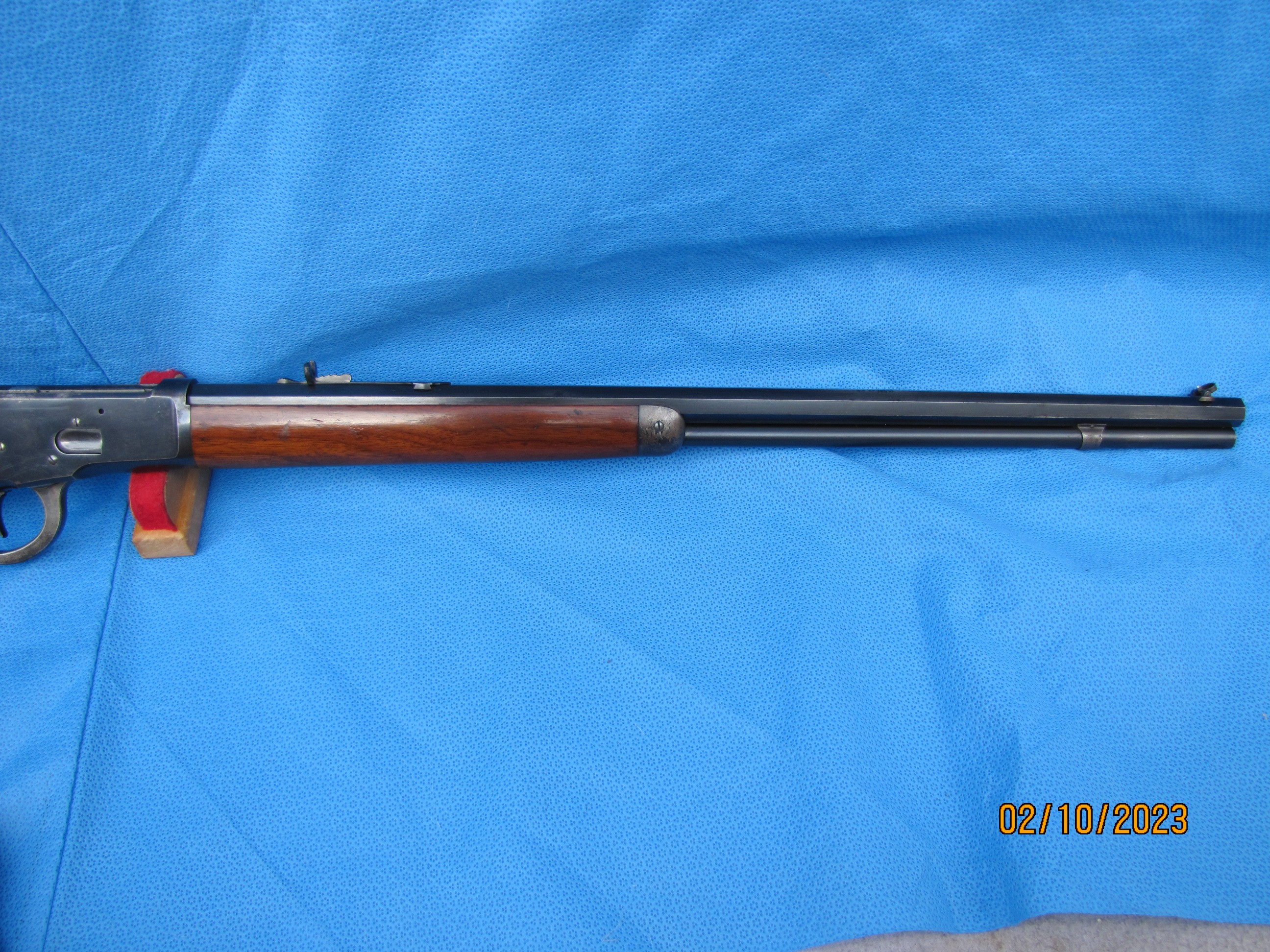

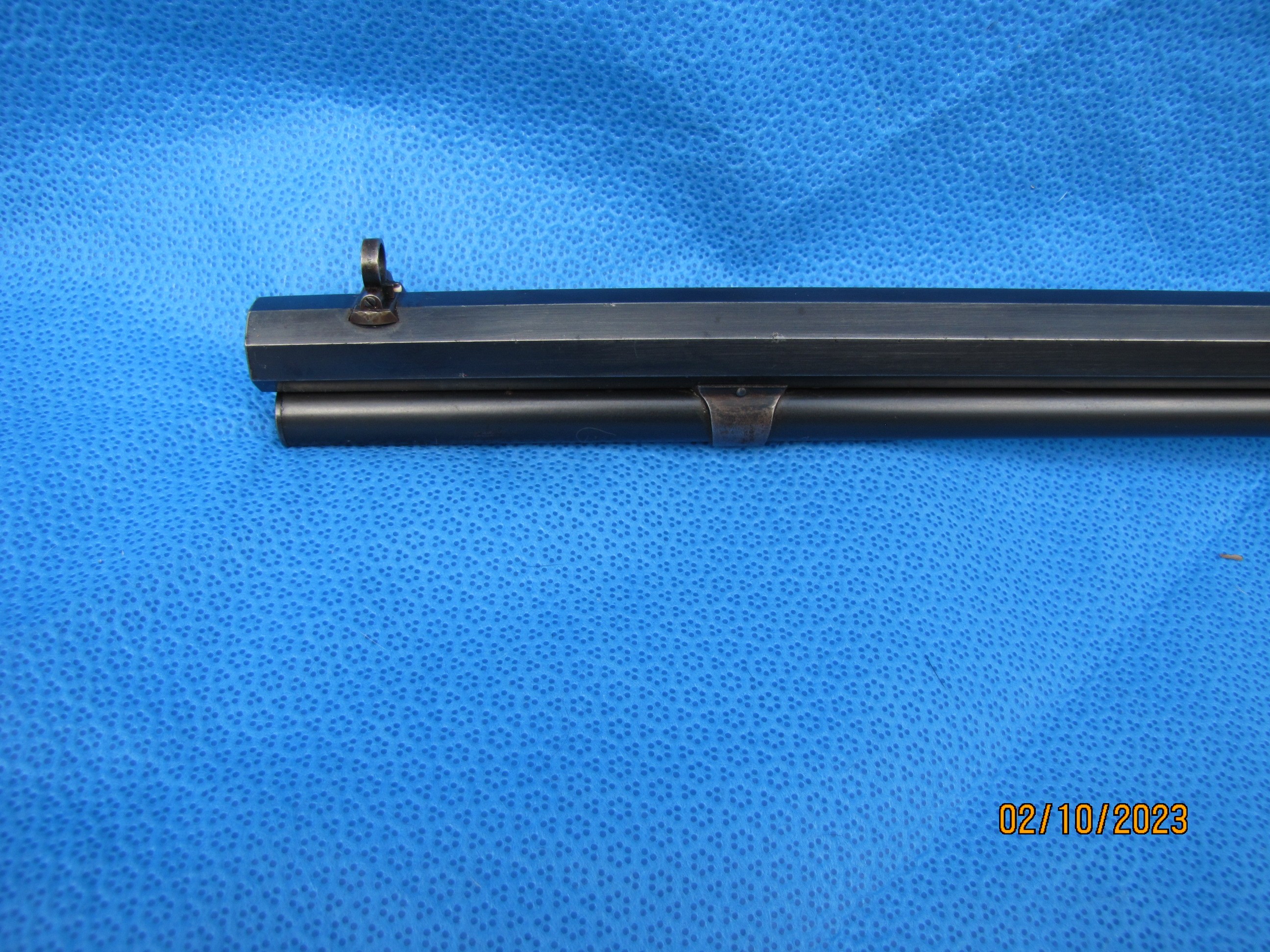

I acquired a Model 1892 rifle.  Serial No. 623492 in 25-20 cal. Too late for a Winchester Letter.  It has a Nickel Steel octagon barrel, close couple set triggers. Lyman tang sight and Lyman 5-B Combination front sight.  I has no numbers stamped on the lower tang, no number stamped in the wood under the butt plate but does have #16705 stamped on the inside toe of the butt plate. I expected to see “special order stamps” in the aforementioned places, is that correct? RDB



92-DBL.-SET-TRIGGER-004.JPGImage Enlarger92-DBL.-SET-TRIGGER-005.JPGImage Enlarger92-DBL.-SET-TRIGGER-008.JPGImage Enlarger92-DBL.-SET-TRIGGER-010.JPGImage Enlarger92-DBL.-SET-TRIGGER-006.JPGImage Enlarger92-DBL.-SET-TRIGGER-009.JPGImage Enlarger

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12855
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
February 10, 2023 - 8:18 pm
sp_Permalink sp_Print

Roger,

Ordinarily, if the inside toe of the butt plate is marked with an assembly number, the end grain of the butt stock (under the butt plate) should also have the same assembly number… that is what I would expect to find.

It appears that this rifle was specifically ordered for the WHV cartridges (hence the Nickel Steel marking). The front Lyman Combination sight coupled with the Lyman No. 2A can reasonably be assumed to have been special ordered to go along with the Set trigger.  I will assume that it is an accurate shooting rifle.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
steve004
Member
WACA Member
Forum Posts: 5170
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
3
February 10, 2023 - 8:20 pm
sp_Permalink sp_Print

Roger –

I don’t know the answer to your question, but that’s a nice looking rifle.  I love the DST’s and the mirror blue.

Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
4
February 10, 2023 - 8:38 pm
sp_Permalink sp_Print sp_EditHistory

Bert H. said
It appears that this rifle was specifically ordered for the WHV cartridges (hence the Nickel Steel marking).



Makes sense.  But what sense for the nickel .22 LR Low Wall I have?  And Larry has a 52 with nickel brl.

Avatar
rogertherelic
Santa Clara, CA
Member
WACA Member
Forum Posts: 926
Member Since:
January 27, 1992
sp_UserOfflineSmall Offline
5
February 10, 2023 - 8:52 pm
sp_Permalink sp_Print

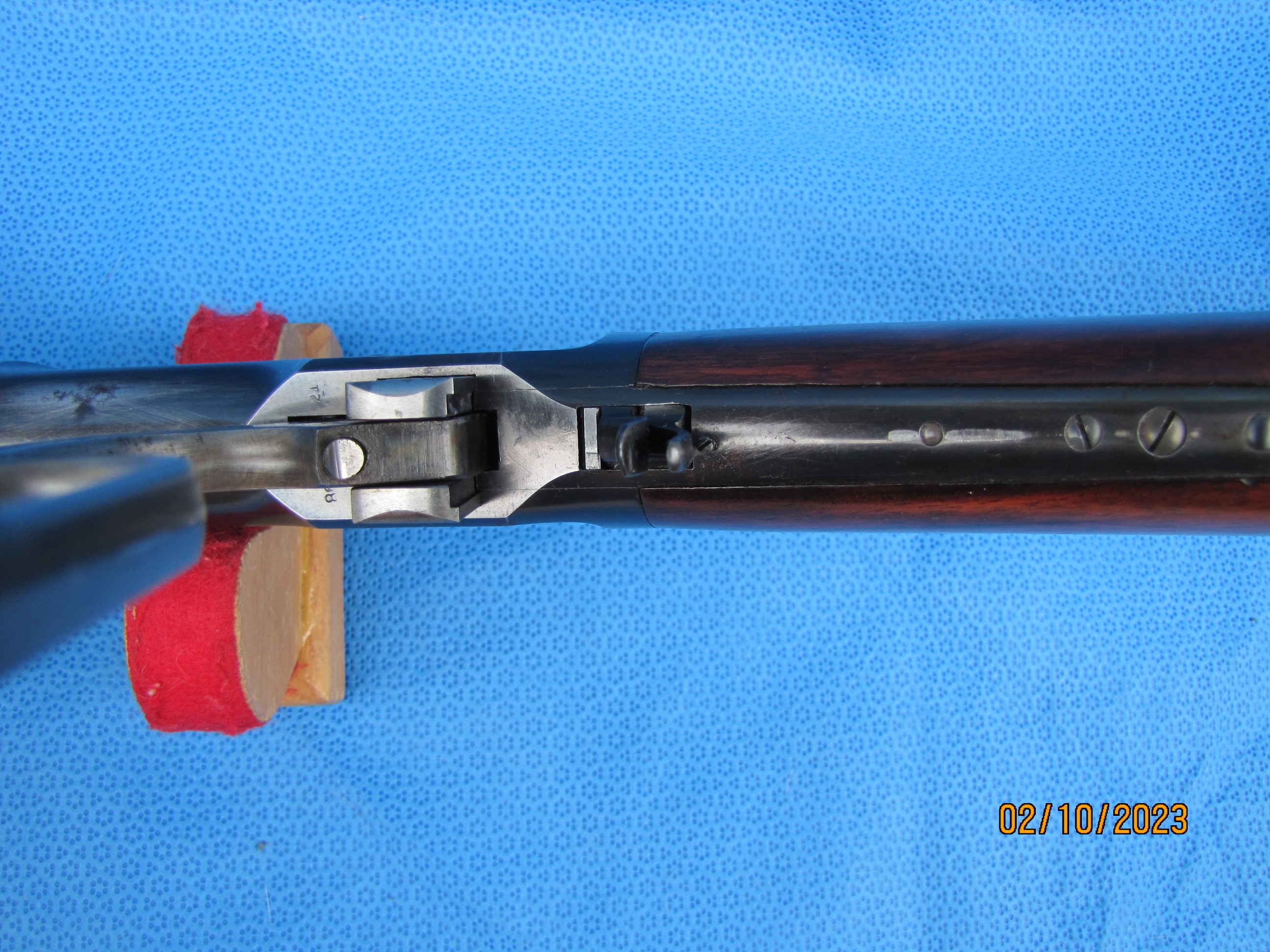

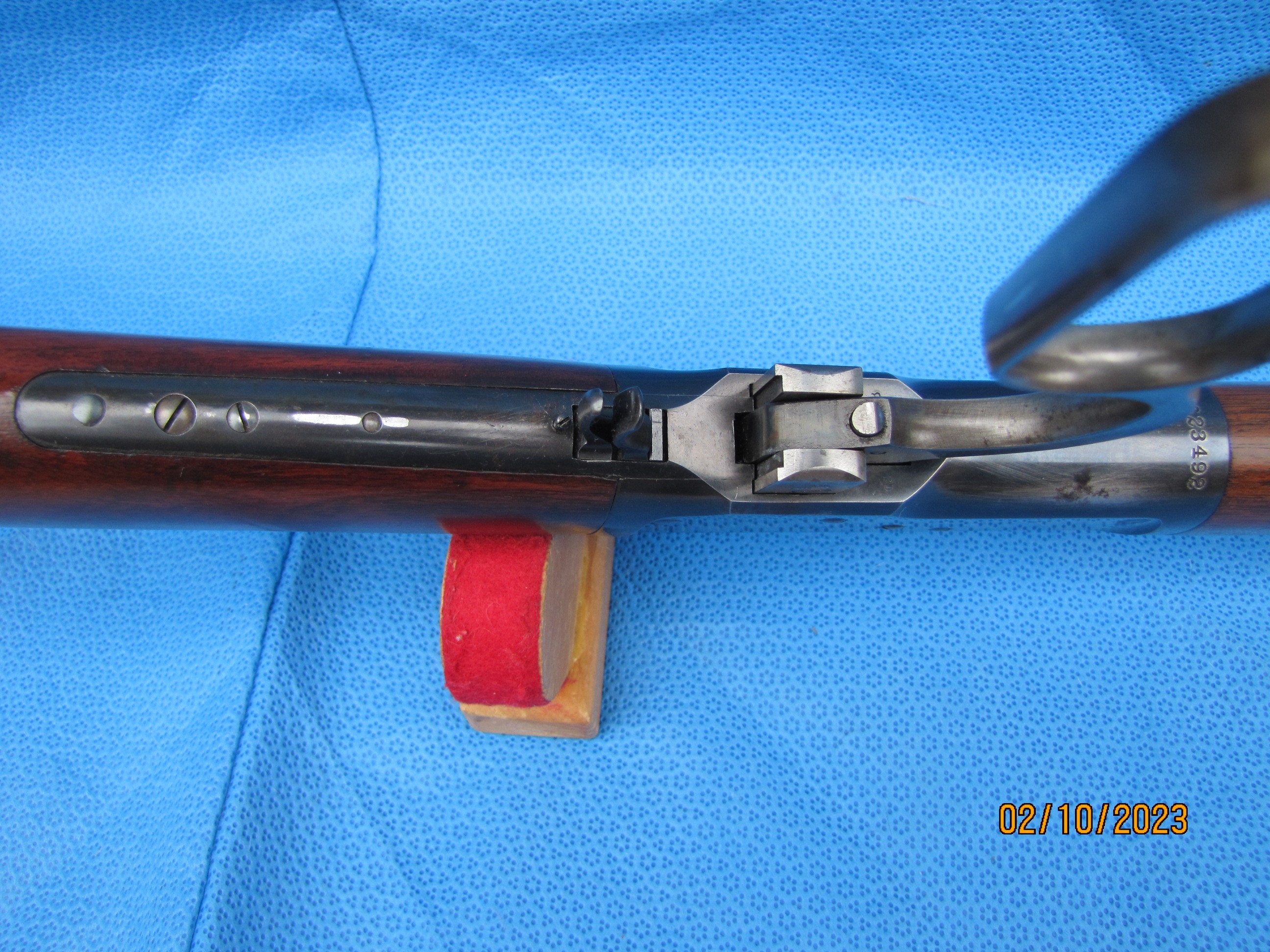

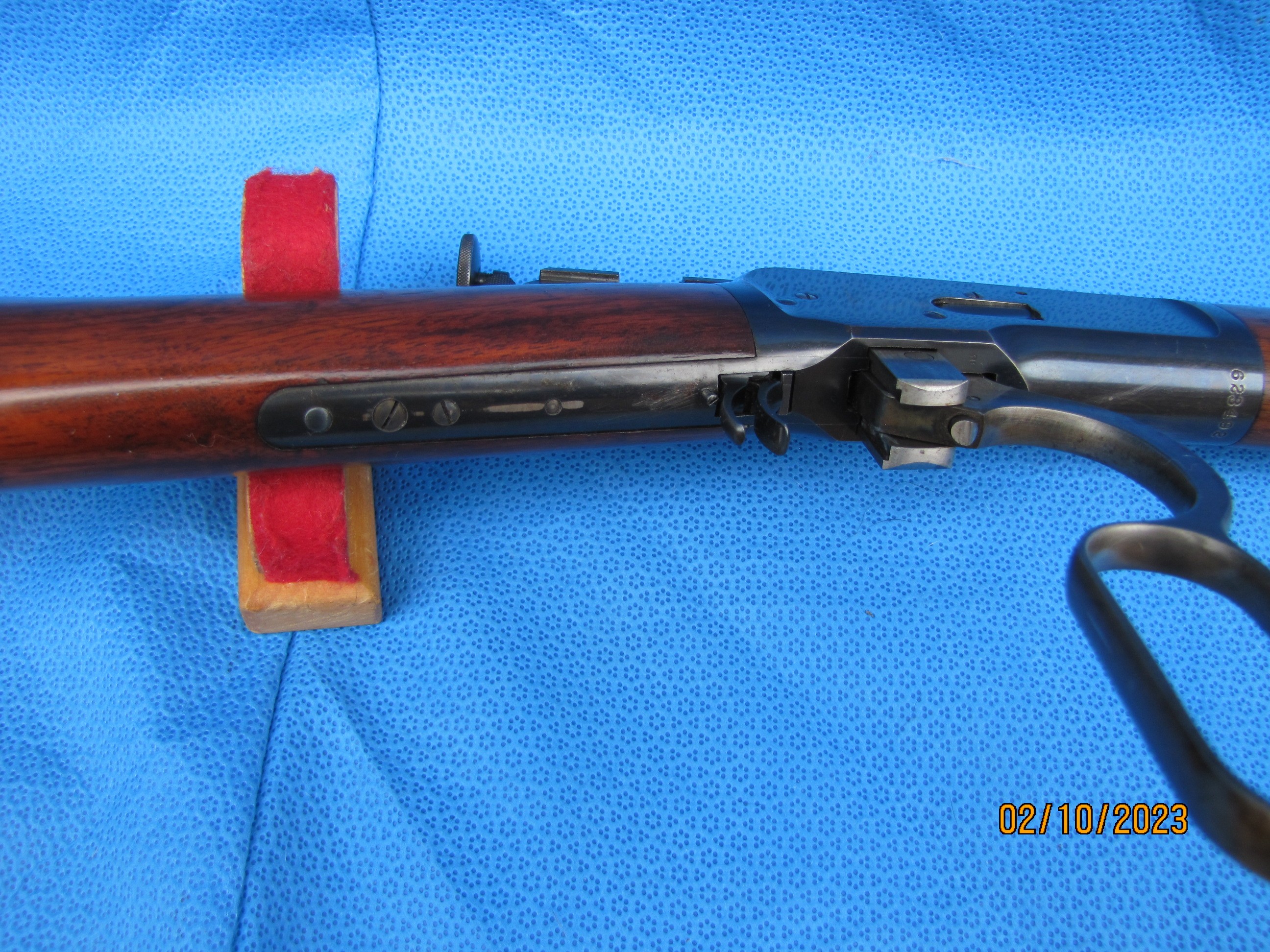

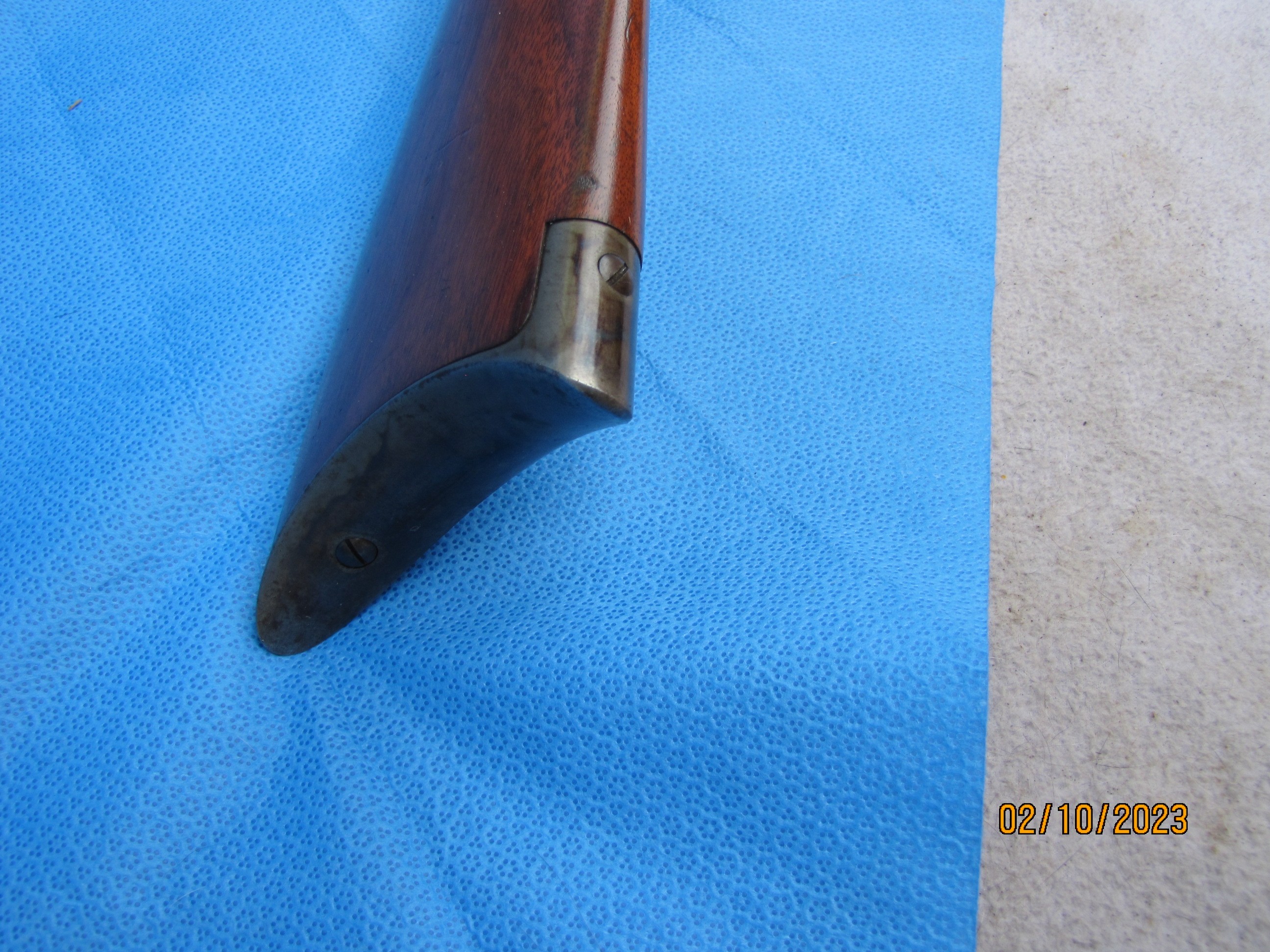

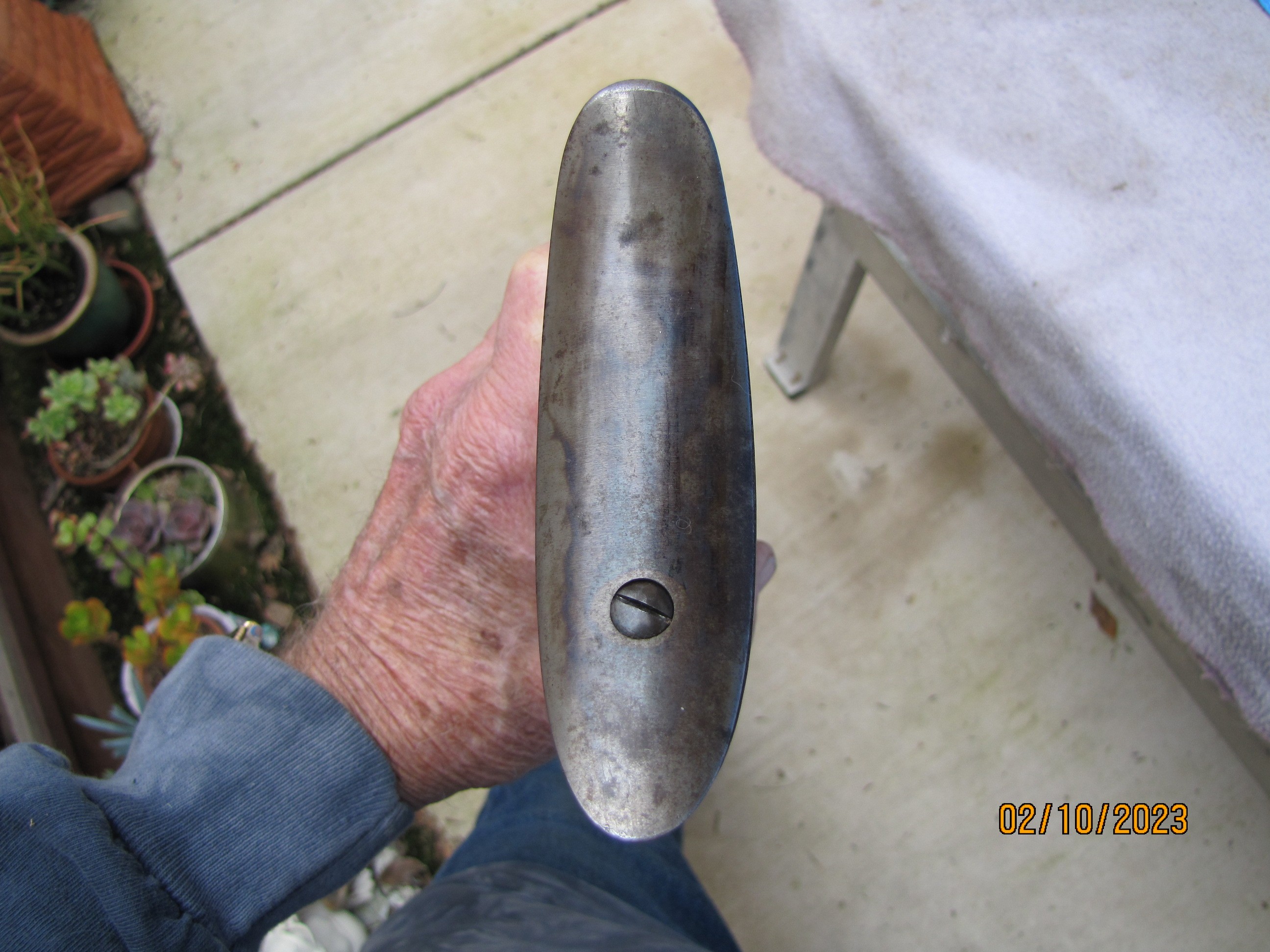

The stock to metal fit seems good.  Overcast and a little too dark today for sharp pics.  RDB

92-DBL.-SET-2-001.JPGImage Enlarger92-DBL.-SET-2-002.JPGImage Enlarger92-DBL.-SET-2-003.JPGImage Enlarger92-DBL.-SET-2-004.JPGImage Enlarger92-DBL.-SET-2-006.JPGImage Enlarger92-DBL.-SET-2-007.JPGImage Enlarger

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12855
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
6
February 10, 2023 - 8:53 pm
sp_Permalink sp_Print

clarence said

Bert H. said

It appears that this rifle was specifically ordered for the WHV cartridges (hence the Nickel Steel marking).

Makes sense.  But what sense for the nickel .22 LR Low Wall I have?  And Larry has a 52 with nickel brl.



A Nickel Steel .22 rim fire barrel was most likely special ordered because of its superior strength and resistance to wear (not that any .22 rim fire cartridge of that era caused any appreciable wear).

WACA Historian & Board of Director Member #6571L

Avatar
tionesta1
Member
WACA Member
Forum Posts: 1525
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline
7
February 10, 2023 - 9:36 pm
sp_Permalink sp_Print

Roger,

That’s a very nice 1892.

Al

Avatar
Chuck
Member
WACA Member
Forum Posts: 5802
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
8
February 11, 2023 - 10:57 pm
sp_Permalink sp_Print

I believe the assembly numbers were only placed on the parts when the stock was special ordered to keep them together for the correct gun. Since your gun has a standard stock I am not surprised.
