Winchester 55 Rear Sight Help
Avatar
Dave M.
Member
WACA Member
Forum Posts: 29
Member Since:
December 25, 2022
sp_UserOfflineSmall Offline
1
July 17, 2023 - 8:04 pm
sp_Permalink sp_Print

I picked up a 4 digit s/n model 55 in 32 WS. The rear sight elevator is missing.

But I don’t think it has the correct rear sight. I think it’s a 22 rimfire sight. As it has a real small notch.

Anyways, could someone tell me the correct sight for this rifle and maybe a picture.

Thanks, Dave

Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
2
July 17, 2023 - 9:45 pm
sp_Permalink sp_Print

If it’s .32WS, I’d assume it should have the special .32WS sight, as on ’94s.  Unless an exception was made in the case of 55s.

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12873
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
3
July 18, 2023 - 9:43 am
sp_Permalink sp_Print

Dave Miles said
I picked up a 4 digit s/n model 55 in 32 WS. The rear sight elevator is missing.

But I don’t think it has the correct rear sight. I think it’s a 22 rimfire sight. As it has a real small notch.

Anyways, could someone tell me the correct sight for this rifle and maybe a picture.

Thanks, Dave

Dave,

The correct rear sight for all standard Model 55 rifles was a Flat-top sporting with a 1C elevator.  Winchester never installed a .32 Smokeless sight on a Model 55 32 WS rifle.

Bert



MODEL-55-NICKEL-STEEL-32-W.S.-5547.jpgImage EnlargerMODEL-55-NICKEL-STEEL-32-W.S.-7267.jpgImage EnlargerMODEL-55-NICKEL-STEEL-32-W.S.-1078685.jpgImage Enlarger

WACA Historian & Board of Director Member #6571L

Avatar
Dave M.
Member
WACA Member
Forum Posts: 29
Member Since:
December 25, 2022
sp_UserOfflineSmall Offline
4
July 18, 2023 - 10:11 am
sp_Permalink sp_Print

Thanks Bert,

That’s the sight I have, just missing the elevator.

Will check E-bay.

Avatar
28 gauge
Member
WACA Guest
Forum Posts: 887
Member Since:
March 23, 2010
sp_UserOfflineSmall Offline
5
July 18, 2023 - 9:20 pm
sp_Permalink sp_Print

 I have a Model 55 and a Model 53 with these sights.These sights, coupled with the I believe number 3 front sight, that came with  them are my favourite iron sights.Smile

Avatar
Burt Humphrey
Member
WACA Member
Forum Posts: 627
Member Since:
April 1, 2005
sp_UserOfflineSmall Offline
6
July 19, 2023 - 3:52 am
sp_Permalink sp_Print

Dave Miles said
I picked up a 4 digit s/n model 55 in 32 WS. The rear sight elevator is missing.

But I don’t think it has the correct rear sight. I think it’s a 22 rimfire sight. As it has a real small notch.

Anyways, could someone tell me the correct sight for this rifle and maybe a picture.

Thanks, Dave



55del7.JPGImage Enlarger

sp_PlupAttachments Attachments


Avatar
28 gauge
Member
WACA Guest
Forum Posts: 887
Member Since:
March 23, 2010
sp_UserOfflineSmall Offline
7
July 20, 2023 - 12:03 am
sp_Permalink sp_Print

 Looks right to me.

Avatar
Rick C
Maine/NB
Member
WACA Member
Forum Posts: 785
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
8
March 27, 2024 - 11:11 am
sp_Permalink sp_Print sp_EditHistory

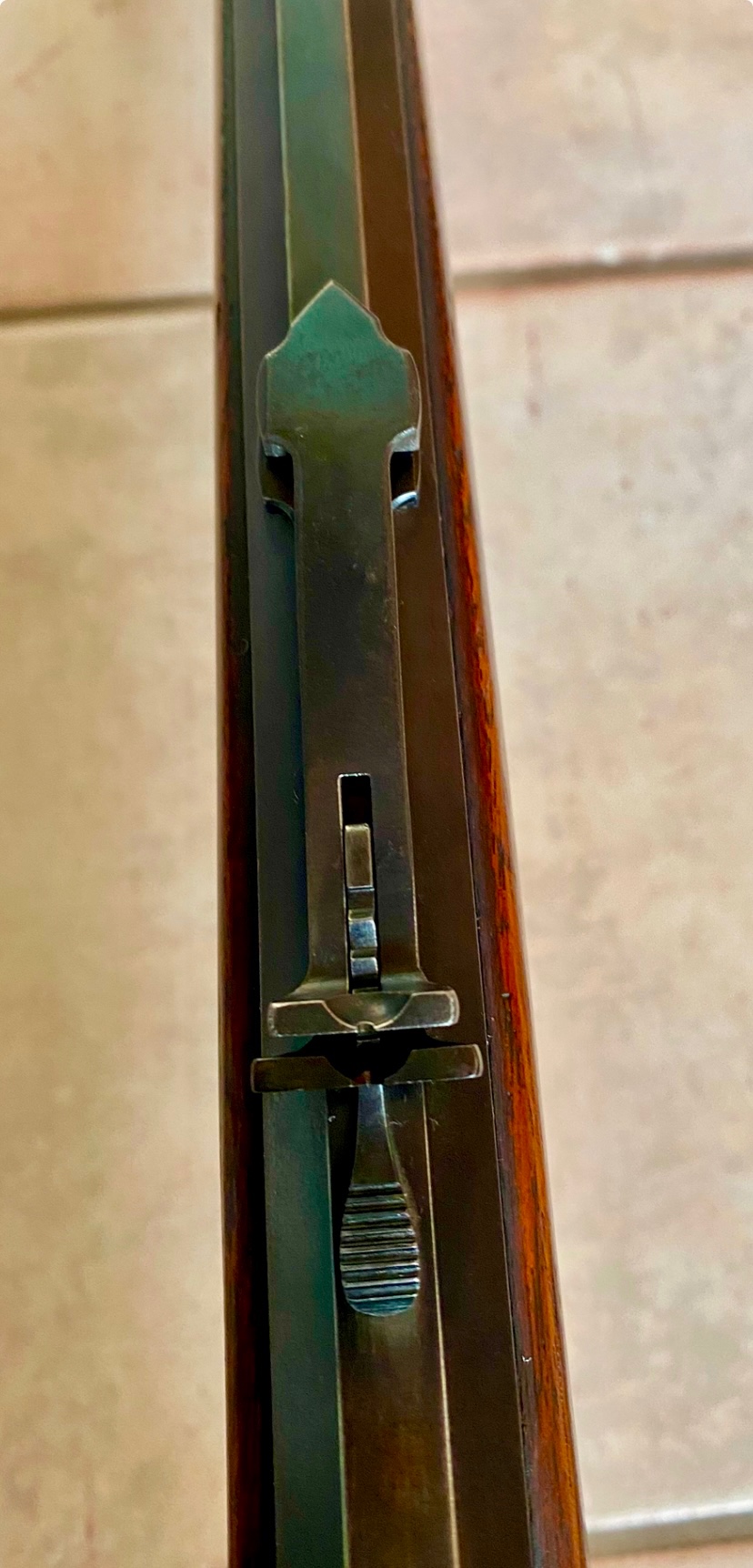

The rear flat top sight used on a model 55/53 are narrower and lower on the eye aperture end than the ones used on 94/92.



IMG_6588.jpegImage EnlargerIMG_6586.jpegImage EnlargerIMG_6587.jpegImage EnlargerIMG_6578-1.jpegImage Enlarger

IMG_2028-1.jpegImage Enlarger

sp_PlupAttachments Attachments

 Rick C
