Rear sight elevator position.
Avatar
Edward Kitner
Member
WACA Member
Forum Posts: 114
Member Since:
May 5, 2022
sp_UserOfflineSmall Offline
1
February 14, 2025 - 1:03 pm
sp_Permalink sp_Print

I have seen and I have rifles with the sight elevator serrated thumb pusher, or what ever you call it,  facing the muzzle and facing the receiver.  Which is the correct position, or is it determined by the rifle and caliber?

Thanks

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 13094
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
February 14, 2025 - 4:34 pm
sp_Permalink sp_Print

Ed,

The elevator orientation is determined by the specific sight type and the elevator style, and the rifle it is mounted on.

Generally speaking, the 22-series sights with a 3C elevator have the thumb piece oriented in the direction of the muzzle, and the 1C elevators are always oriented towards the breech.  For the lever action rifles/carbines, it is the location of the rear sight dovetail on the barrel that determined which specific sight & elevator that Winchester used (the caliber did not have any effect on the elevator orientation).

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Edward Kitner
Member
WACA Member
Forum Posts: 114
Member Since:
May 5, 2022
sp_UserOfflineSmall Offline
3
February 14, 2025 - 6:16 pm
sp_Permalink sp_Print

Thanks Bert, I have had that question on my mind for some time and thought of it again today.

Thanks again for your thoughtful guidance!

Ed

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 13094
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
4
February 14, 2025 - 6:58 pm
sp_Permalink sp_Print sp_EditHistory

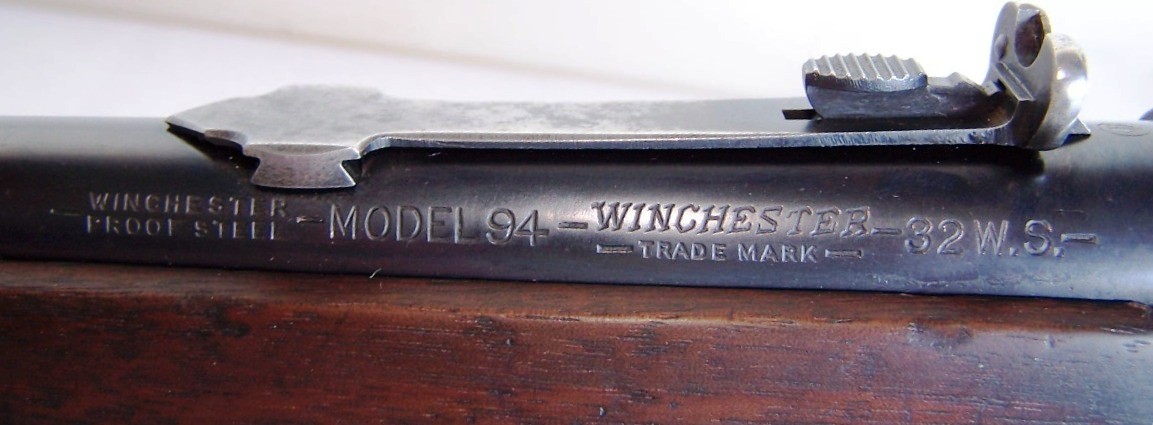

To give you an example, the Model 94 “Transitional” Carbines used the same dovetail location for the 22-G sight as the older SRCs with the No. 44A sight.  Accordingly, they required a 3C elevator;

1082935-MODEL-94-PROOF-STEEL-32-W.S.-.jpgImage Enlarger



On the slightly later production Model 94 Carbines (Post-WW II), Winchester moved the rear sight dovetail further from the receiver frame ring and began using the 22-G sight with a 1C elevator;

1385707-MODEL-94-30-W.C.F.-.jpgImage Enlarger

WACA Historian & Board of Director Member #6571L
