Knife Blade or Rocky Mt. ?
Avatar
pdog72
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1285
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
1
August 19, 2017 - 5:09 pm
sp_Permalink sp_Print

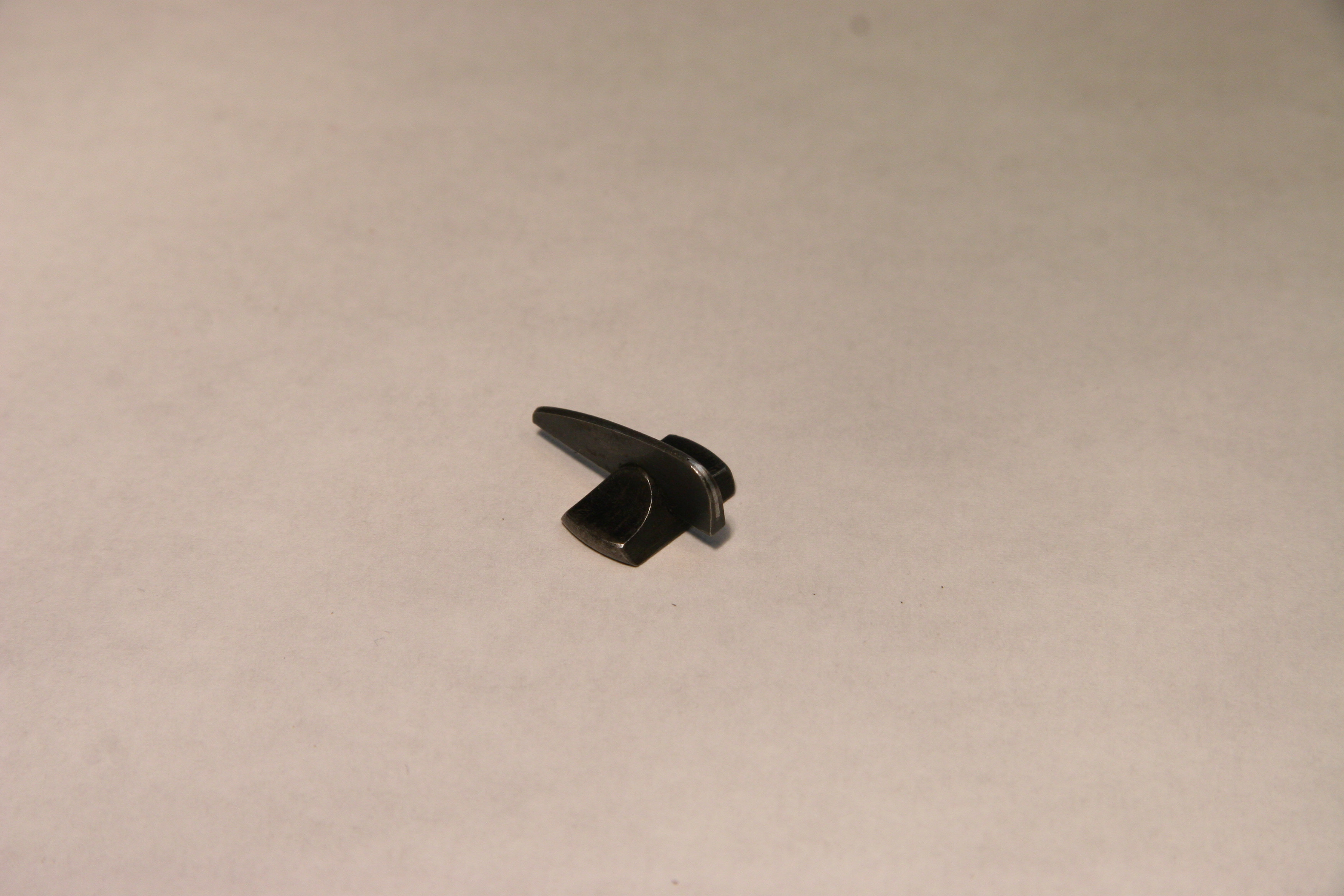

This front sight is on one of my 1894 short rifles circa 1904. It looks like it might be a #73 knife blade but the shape doesn’t seem quite right. Its too square on the back side to be the Rocky Mt. It appears to be German silver. There are no markings on the sight. Any thoughts?


sp_PlupAttachments Attachments

                                                                               ~Gary~


Avatar
Brad Dunbar
Moderator
Moderator
Forum Posts: 986
Member Since:
December 30, 2011
sp_UserOfflineSmall Offline
2
August 19, 2017 - 5:35 pm
sp_Permalink sp_Print

Very much like the front sights used on the Savage 1899 rifles.

Regards

Brad Dunbar

http://1895book.com/

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4701
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
3
August 19, 2017 - 5:58 pm
sp_Permalink sp_Print

It a Knife Blade, a Rocky Mountain is a blued steel blade usually with a platinum insert.

Bob


Rocky Mountain


Knife Blade

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Brad Dunbar
Moderator
Moderator
Forum Posts: 986
Member Since:
December 30, 2011
sp_UserOfflineSmall Offline
4
August 19, 2017 - 6:44 pm
sp_Permalink sp_Print

Bob

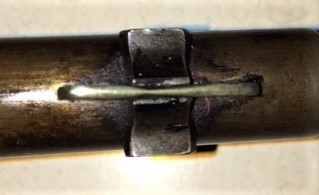

Do you see many older Winchesters with this style of sight and shaped blade, or knife blade, specifically with the square edges of the base around the blade, like on this 1899:

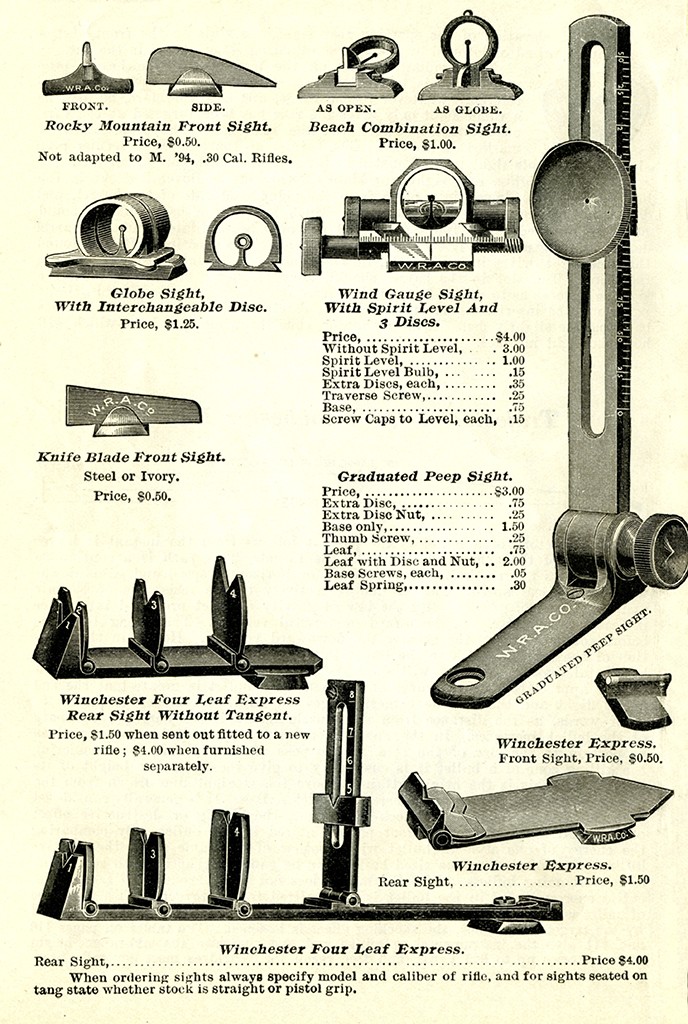

The single sight in your first photo has the radius in the base where it meets the blade.  I notice in the older WRACo catalogs they often show that type of base where it meets the blade.  I don’t know a lot about them and I’m just curious what you have noticed on older Winchester rifles with these sights from the factory compared to some of the catalog illustrations.  Thanks.

sp_PlupAttachments Attachments

Regards

Brad Dunbar

http://1895book.com/

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4701
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
5
August 19, 2017 - 8:11 pm
sp_Permalink sp_Print

Brad,

I will have to take a look at my guns and sights tomorrow. I have never really looked that closely at the base of the sights.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4701
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
6
August 20, 2017 - 4:43 am
sp_Permalink sp_Print

Brad,

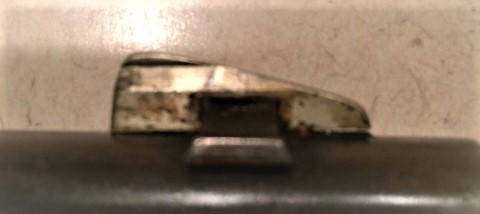

Here are a few pictures and all the Rocky Mountains have the rounded base and the knife blades have sharp corners.


The Rocky Mountain on the gun is nickel plated as well as the rear barrel sight. The gun letters nickel and engraved


This Knife blade on my 22 Extra Heavy letters as “German Silver Knife Blade”

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Brad Dunbar
Moderator
Moderator
Forum Posts: 986
Member Since:
December 30, 2011
sp_UserOfflineSmall Offline
7
August 20, 2017 - 1:44 pm
sp_Permalink sp_Print

Thanks Bob

Does anyone have an image handy of a knife blade type sight on a Winchester with a  rounded base where it meets the blade?


sp_PlupAttachments Attachments

Regards

Brad Dunbar

http://1895book.com/
