Identify sights
Avatar
86Win
Member
WACA Member
Forum Posts: 361
Member Since:
March 15, 2020
sp_UserOfflineSmall Offline
1
December 18, 2025 - 8:58 pm
sp_Permalink sp_Print

Can anyone identify these sights? Thanks, DonP1050020.JPGImage Enlarger

P1050021.JPGImage Enlarger
P1050022.JPGImage Enlarger
P1050024.JPGImage Enlarger
P1050025.JPGImage Enlarger
P1050026.JPGImage Enlarger
P1050027.JPGImage Enlarger
P1050028.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Ben
Northeast Washington
Member
WACA Member
Forum Posts: 687
Member Since:
July 3, 2020
sp_UserOfflineSmall Offline
2
January 10, 2026 - 1:21 am
sp_Permalink sp_Print sp_EditHistory

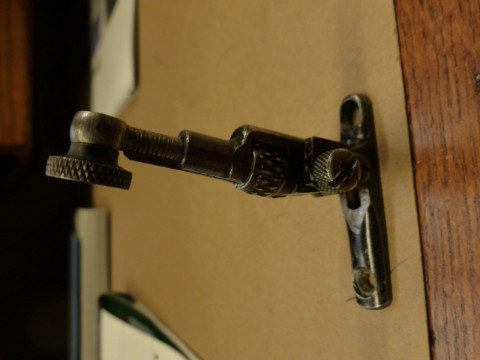

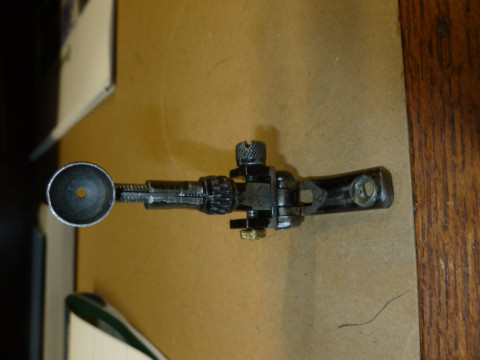

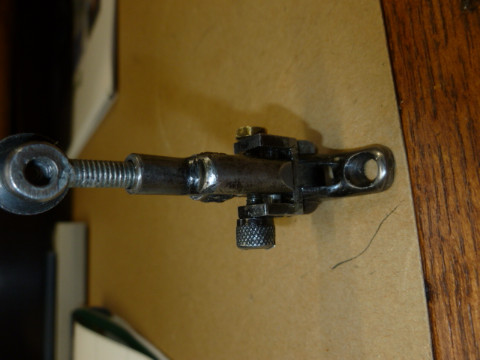

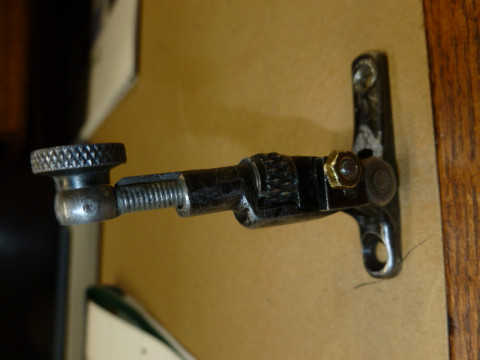

First sight… unknown.  Looked thru Tom Rowe’s American Sight book… no match.  It is a “buggered” windage sight.  If you can provide the mounting screw “span” (center to center) I should be able to narrow down the application…

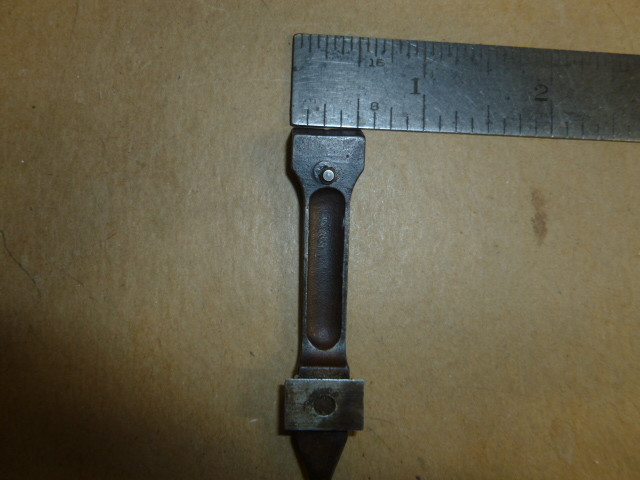

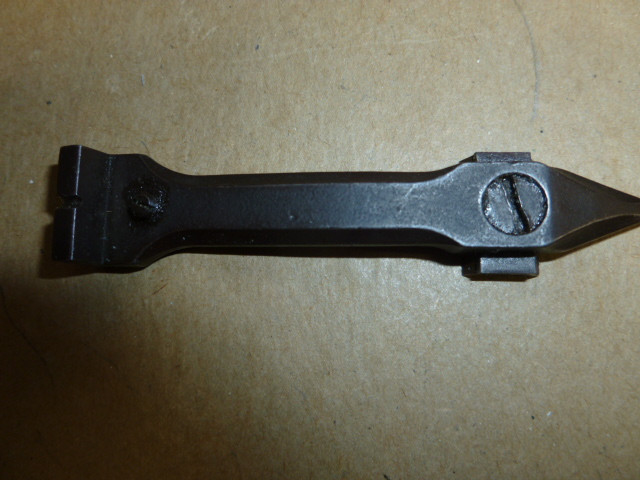

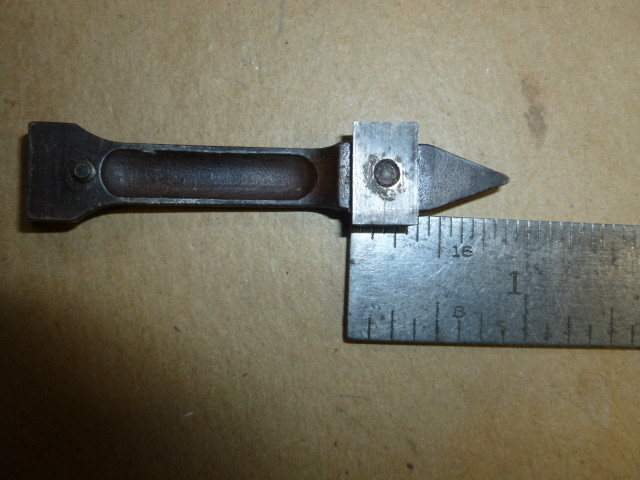

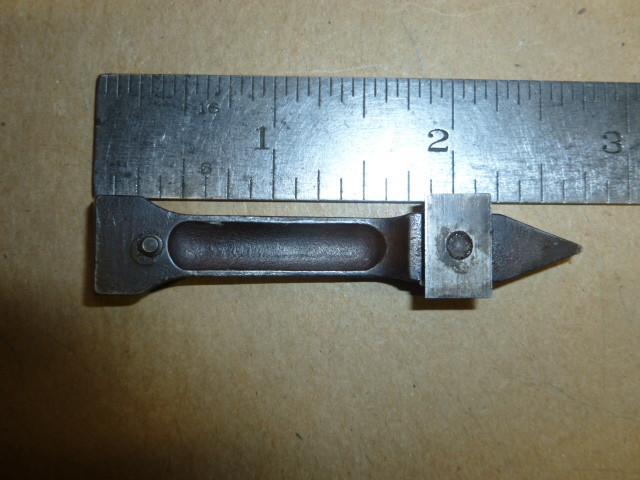

Second sight is a modern black powder barrel sight.  See Dixie Gun Works catalogue….

Avatar
86Win
Member
WACA Member
Forum Posts: 361
Member Since:
March 15, 2020
sp_UserOfflineSmall Offline
3
January 11, 2026 - 2:14 am
sp_Permalink sp_Print

Ben, as per my tired old eyes the center – center measured 1.480″ . I imagine it was intended to be 1.5″.

I hope you can find info on it.

Thanks, Don

Avatar
Ben
Northeast Washington
Member
WACA Member
Forum Posts: 687
Member Since:
July 3, 2020
sp_UserOfflineSmall Offline
4
January 11, 2026 - 3:28 am
sp_Permalink sp_Print

Here’s a good reference list.  The subject sights screw hole looks a bit “hogged” out…  Stevens seems the most likely application.

IMG_7221-1.jpegImage Enlarger

sp_PlupAttachments Attachments
Avatar
86Win
Member
WACA Member
Forum Posts: 361
Member Since:
March 15, 2020
sp_UserOfflineSmall Offline
5
January 11, 2026 - 12:25 pm
sp_Permalink sp_Print

That makes sense as I have 3 others from same seller that seem to be for Stevens.

Thanks, Don
