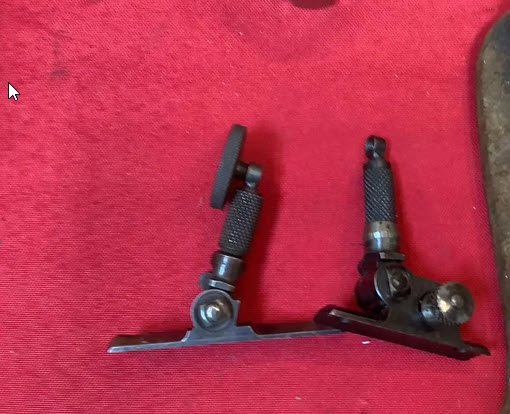

The one on the left looks like it is maybe a Lyman 2A? What about the other one?
April 15, 2005
Offline
John,
The sight on the right is a Lyman No. 103 Micrometer Wind gauge. What application code does it have on the underside of the base?
Bert
WACA Historian & Board of Director Member #6571L
March 3, 2020
Offline
Bert,
I don’t have them in hand yet, so don’t know. I must confess – they are a bit of a “pig in a poke”. I bought them both at an online auction. They were in with a bunch of other stuff, some sheath knives, a couple of rear sights, a pocket knife, etc. They looked interesting, and the price was right so I took a chance.
I’m just hoping they are both for Winchester 94/92’s.
April 15, 2005
Offline
John D. said
Bert,
I don’t have them in hand yet, so don’t know. I must confess – they are a bit of a “pig in a poke”. I bought them both at an online auction. They were in with a bunch of other stuff, some sheath knives, a couple of rear sights, a pocket knife, etc. They looked interesting, and the price was right so I took a chance.
I’m just hoping they are both for Winchester 94/92’s.
The base on the No. 103 looks a little short for the Winchester, but if it has a “DA” application code, it is correct for a Model 92/94.
Bert
WACA Historian & Board of Director Member #6571L
March 3, 2020
Offline
As soon as they arrive, I will update. Thank you for the ID, if it doesn’t fit one of my Winchesters I’ll sell it off to pay for the rest of the swag I won…… or maybe buy the rifle it does fit.
April 15, 2005
Offline
I forget to mention, the Lyman No. 2A appears to be for a Winchester Single Shot (it will have an “S” code), or a Model 1886 (“N” or “NI” code).
Bert
WACA Historian & Board of Director Member #6571L
March 3, 2020
Offline
Bert H. said
I forget to mention, the Lyman No. 2A appears to be for a Winchester Single Shot (it will have an “S” code), or a Model 1886 (“N” or “NI” code).
Bert
Well – if that’s the case I struck out on both counts.
April 15, 2005
Offline
John D. said
Bert H. said
I forget to mention, the Lyman No. 2A appears to be for a Winchester Single Shot (it will have an “S” code), or a Model 1886 (“N” or “NI” code).
Bert
Well – if that’s the case I struck out on both counts.
I disagree… an “S” coded Lyman No. 2A tang sight is a minimum $400 sight. If it is an “N” or NI” coded sight, it is easily worth $350. The Lyman No. 103 sights run from $450 – $600 depending on the application code. You could easily be sitting on $750 – $1,000 worth of sights.
Bert
WACA Historian & Board of Director Member #6571L
March 3, 2020
Offline
Bert H. said
John D. said
Bert H. said
I forget to mention, the Lyman No. 2A appears to be for a Winchester Single Shot (it will have an “S” code), or a Model 1886 (“N” or “NI” code).
Bert
Well – if that’s the case I struck out on both counts.
I disagree… an “S” coded Lyman No. 2A tang sight is a minimum $400 sight. If it is an “N” or NI” coded sight, it is easily worth $350. The Lyman No. 103 sights run from $450 – $600 depending on the application code. You could easily be sitting on $750 – $1,000 worth of sights.
Bert
HOLY MOLEY! No kidding? WOW.
April 15, 2005
Offline
If the No. 2A has an “S” or “SB” on the underside of the base, I will take it off of your hands at a reasonable price.
Bert
WACA Historian & Board of Director Member #6571L
March 3, 2020
Offline
Bert H. said
If the No. 2A has an “S” or “SB” on the underside of the base, I will take it off of your hands at a reasonable price.
Bert
Thank you, Bert. When it arrives all will be revealed, and if it is what you are looking for I promise to give you first right of refusal.
April 15, 2005
Offline
John D. said
Bert H. said
If the No. 2A has an “S” or “SB” on the underside of the base, I will take it off of your hands at a reasonable price.
Bert
Thank you, Bert. When it arrives all will be revealed, and if it is what you are looking for I promise to give you first right of refusal.
Appreciate it!
WACA Historian & Board of Director Member #6571L
December 9, 2002
Offline
Bert,
I’m sure that #103 would look good on the tang of a High Wall!
Anthony
April 15, 2005
Offline
Anthony said
Bert,
I’m sure that #103 would look good on the tang of a High Wall!
Anthony
Yes it would… I already have #103 sights on three of my Single Shot rifles
WACA Historian & Board of Director Member #6571L
February 17, 2022
Offline
Bert H. said
I forget to mention, the Lyman No. 2A appears to be for a Winchester Single Shot (it will have an “S” code), or a Model 1886 (“N” or “NI” code).
Bert
I would be interested in the 2a if it has a N/NI code.
March 3, 2020
Offline
OK – the sights arrived today. The 2A has a small “S” stamped underneath, so Winchester Single Shot. The 103 is marked with a “P”, so Stevens Ideal?
The 2A has the correct spacing for my 94’s and 92’s, so might it work out or will the sight alignment/elevation be all wrong? Same question for the 103, if I were to put it on my Marlin 39 or maybe Winchester 94/22M.
July 3, 2020
Offline
The “S” marked sight hole spacing will fit your 94/92, however, the staff will not be at the right angle.
The 103P has the hole spacing for Stevens… to put it on a Marlin or Winchester you would need to drill holes in your sight or rifles… devaluing them.
I have proper sights for the 94 / 92 and Marlin 39 available for sale. they come with screws.
Best option…. sell the “S” sight to Bert. He will pay a fair price.
Then put the 103 up on ebay for sale…
You will come out money ahead….
Ben
March 3, 2020
Offline
Ben said
The “S” marked sight hole spacing will fit your 94/92, however, the staff will not be at the right angle.
The 103P has the hole spacing for Stevens… to put it on a Marlin or Winchester you would need to drill holes in your sight or rifles… devaluing them.
I have proper sights for the 94 / 92 and Marlin 39 available for sale. they come with screws.
Best option…. sell the “S” sight to Bert. He will pay a fair price.
Then put the 103 up on ebay for sale…
You will come out money ahead….
Ben
Ben, Thanks for the explanation. I did not consider staff angle, so that really helps.
RE: drilling a hole in my Marlin 39 – a couple of thoughts…..
The Marlin in question is kind of a beater cosmetically, but shoots great and has won me a few matches. I’m not sure drilling an extra hole on the tang would affect the value a whole lot, as it is not a collector piece but a “cowboy lever rifle silhouette competition” gun. That crowd might consider it a “value-add”
Also – it only has one hole for the tang screw, so wouldn’t it need to be drilled and tapped for the correct sight, anyway?
In any case, shoot me a PM with a pic of your 39 sight and price, I’d like to take a look. 🙂
John
April 15, 2005
Offline
John D. said
OK – the sights arrived today. The 2A has a small “S” stamped underneath, so Winchester Single Shot. The 103 is marked with a “P”, so Stevens Ideal?
The 2A has the correct spacing for my 94’s and 92’s, so might it work out or will the sight alignment/elevation be all wrong? Same question for the 103, if I were to put it on my Marlin 39 or maybe Winchester 94/22M.
Please send me a set of pictures for the “S” coded sight.
Bert – [email protected]
WACA Historian & Board of Director Member #6571L
August 27, 2014
Offline
I wouldn’t drill another hole, it never turns out/looks right
An extra hole will definitely decrease the value of your Marlin 39 even if it’s a cosmetically beater gun
“If you can’t convince them, confuse them”
President Harry S. Truman
