M97 Riot gun
Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
1
March 9, 2017 - 6:02 pm
sp_Permalink sp_Print

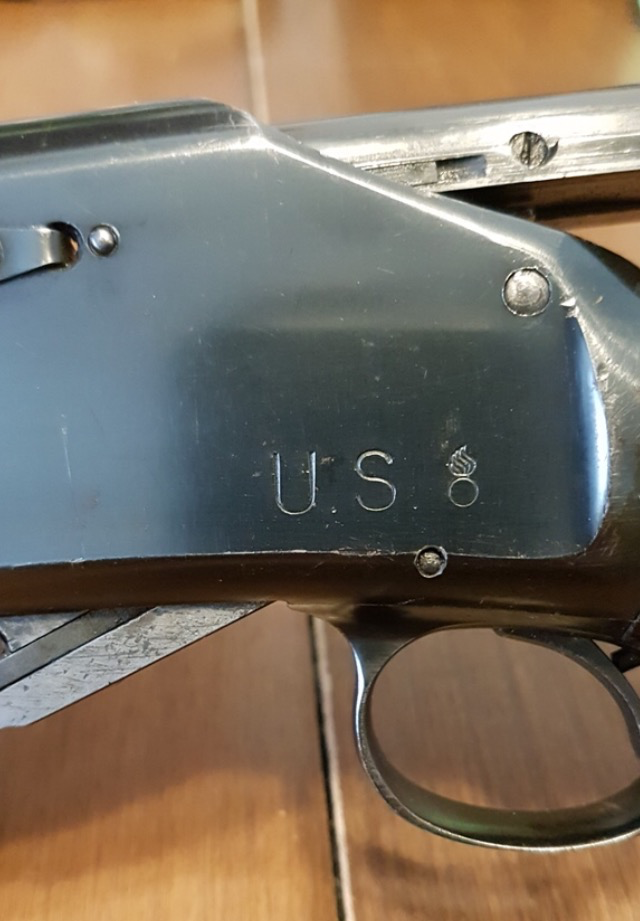

ok so , basically an ordinanced flaming bomb and US stamped 97. Riot Not trench . Cyl bore , barrel and receiver US marked . Problem ??? Is from muzzle to the end of threads 21″ .  20″ to the receiver . Cyl bore measures 0.73 at muzzle . Appears rounded off not square muzzle walls . Markings are right as rain IMHO. So ……  ideas ?IMG_0699.PNGImage EnlargerIMG_0701.PNGImage EnlargerIMG_0715.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
2
March 9, 2017 - 6:03 pm
sp_Permalink sp_Print

Thx for the help and input

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12859
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
3
March 9, 2017 - 6:25 pm
sp_Permalink sp_Print

Accumulator said
ok so , basically an ordinanced flaming bomb and US stamped 97. Riot Not trench . Cyl bore , barrel and receiver US marked . Problem ??? Is from muzzle to the end of threads 21″ .  20″ to the receiver . Cyl bore measures 0.73 at muzzle . Appears rounded off not square muzzle walls . Markings are right as rain IMHO. So ……  ideas ?IMG_0699.PNGImage EnlargerIMG_0701.PNGImage EnlargerIMG_0715.JPGImage Enlarger

It looks perfectly normal to me. If it is the barrel length you are questioning, I have seen other WW II era Riot Guns with 21″ barrels.  What is the serial number on your Riot Gun ?  Barrel date ?

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
4
March 9, 2017 - 7:10 pm
sp_Permalink sp_Print

900xxx  range 1946 ish . And yes it’s barrel length that has me stumped .

Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
5
March 9, 2017 - 7:45 pm
sp_Permalink sp_Print sp_EditHistory

So contrary to a se# lookup I did 927xxx is not post war , ” Cody ” has said se# applied 1941 . Which is completely contrary to any serial number data published ??? Unfortunately no configuration info or shipped to .

Avatar
Tom Doniphon
Guest
Guests
6
March 9, 2017 - 8:10 pm
sp_Permalink sp_Print sp_EditHistory

It’s not a post War gun.  Likely made very early in WW2.

Can you be a bit more specific with the serial number?  900,xxx is pretty early for a WW2 Military contract 97 riot gun.  If you are more specific with the number we can probably date the gun by month and year and even the day of the month that the receiver was serialized if we have the entire number.

As Bert stated, the barrels on these are not always exactly 20″.

Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
7
March 9, 2017 - 8:26 pm
sp_Permalink sp_Print

927132  specific . Thx

Avatar
Tom Doniphon
Guest
Guests
8
March 9, 2017 - 8:58 pm
sp_Permalink sp_Print

Its probably an early 1942 made riot gun.  Is the barrel date 1941?

Most of the WW2 Military contract riot guns in that serial number range only have the “US” mark on the receiver.  Also, it should have a WB marked stock.

Is the flaming bomb on the barrel an open flame or closed flame mark?

Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
9
March 9, 2017 - 9:20 pm
sp_Permalink sp_Print

Barrel stamped ’42  .

Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
10
March 9, 2017 - 9:27 pm
sp_Permalink sp_Print sp_EditHistory

Some additional pics . I don’t c any stock markings or cartouche



IMG_0748.JPGImage EnlargerIMG_0749.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12859
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
11
March 9, 2017 - 10:06 pm
sp_Permalink sp_Print

Accumulator said
900xxx  range 1946 ish . And yes it’s barrel length that has me stumped .

Accumulator said
So contrary to a se# lookup I did 927xxx is not post war , ” Cody ” has said se# applied 1941 . Which is completely contrary to any serial number data published ??? Unfortunately no configuration info or shipped to .

Contrary to most… but not all.  If you use the serial number look-up tool here on the WACA website, or chapter 8 in The Red Book of Winchester values you will find that they agree with the Polishing Room records at Cody.  Serial number 927132 was made in late October 1941, pre War.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Accumulator
Canada
Member
WACA Member
Forum Posts: 61
Member Since:
January 30, 2016
sp_UserOfflineSmall Offline
12
March 9, 2017 - 10:32 pm
sp_Permalink sp_Print

Good to know , I’ll stop using the qwik and easy date references .  Thx
