winchester extra light
Avatar
antler1
Member
WACA Member
Forum Posts: 200
Member Since:
June 12, 2013
sp_UserOfflineSmall Offline
1
June 23, 2025 - 3:11 pm
sp_Permalink sp_Print

Can a winchester model 1894 that letters as extra light have a 26 inch octagon barrel? Letter doesn’t mention barrel length

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4826
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
2
June 23, 2025 - 3:24 pm
sp_Permalink sp_Print sp_EditHistory

Yes it can.

Bob

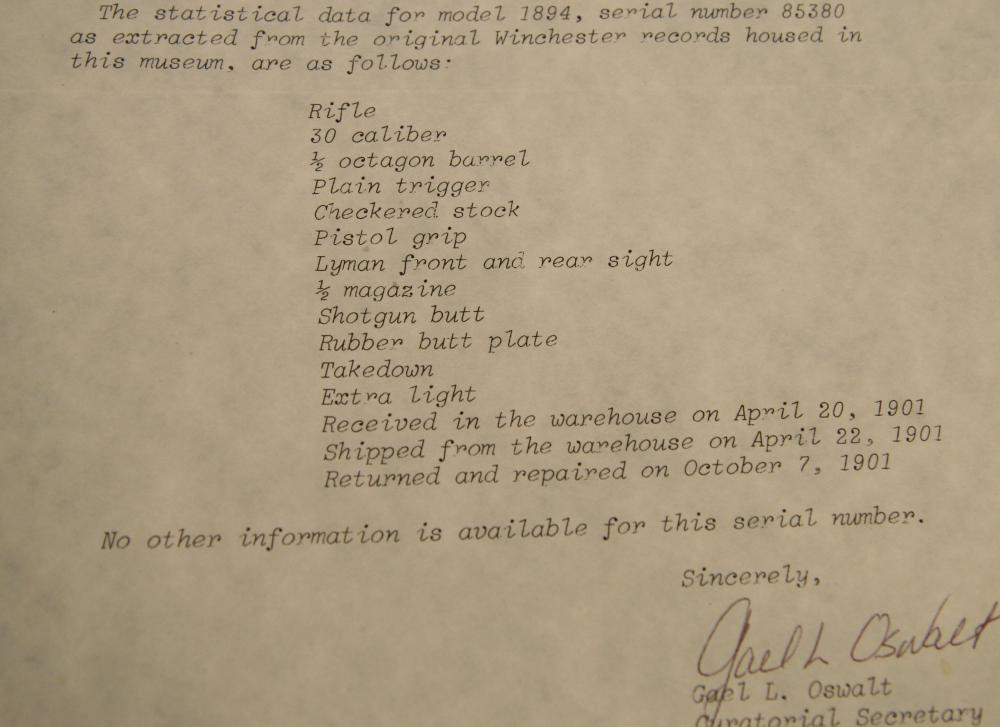

letter.jpgImage Enlarger

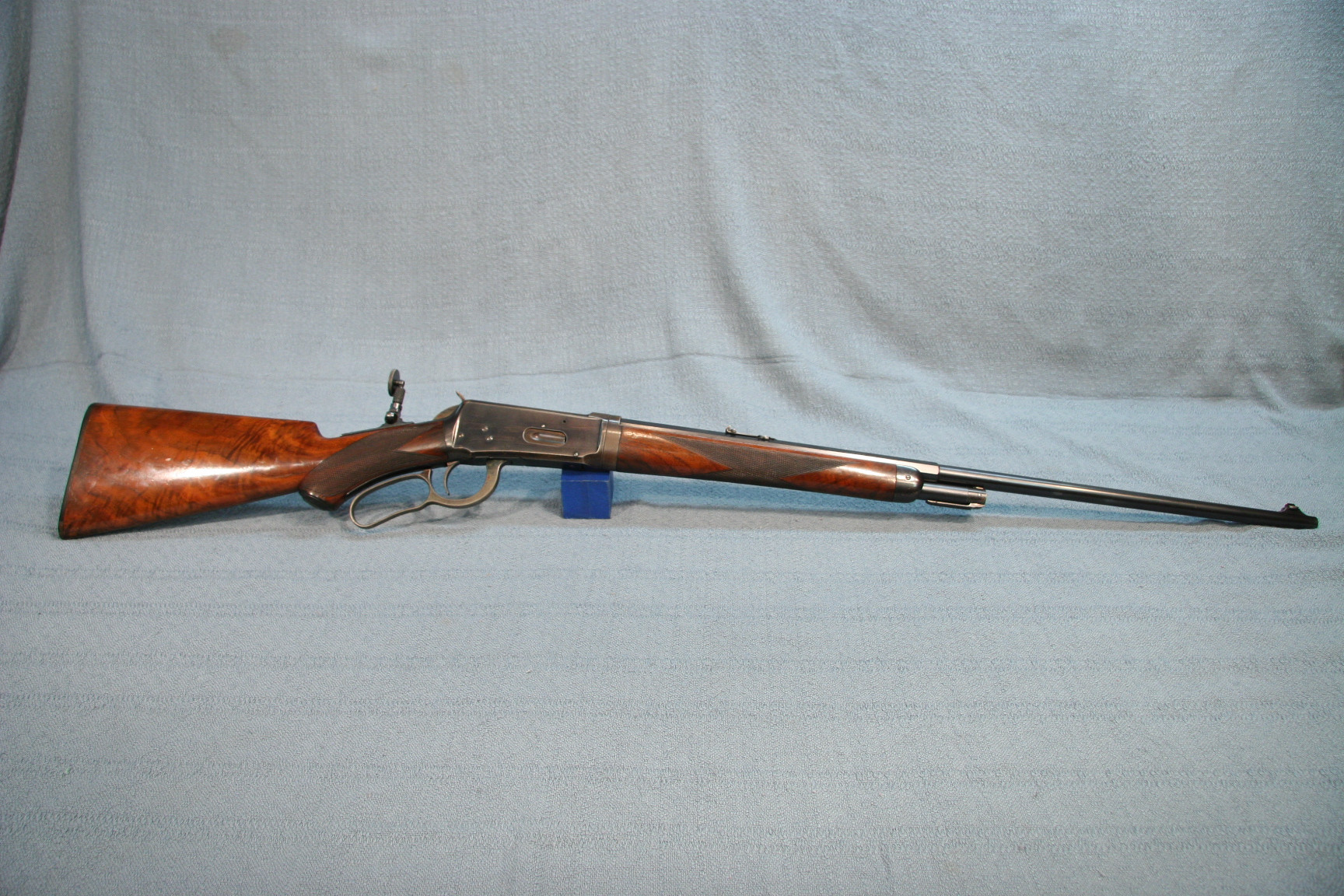

IMG_2719.JPGImage Enlarger

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 13849
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
3
June 23, 2025 - 4:50 pm
sp_Permalink sp_Print

Full Octagon ELW barrels are relatively rare, and unlike the round or 1/2 octagon barrels, they do not have the distinctive front sight lug that is silver soldered (brazed) on the barrel.  Instead, a very shallow dovetail was milled into the barrel.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
antler1
Member
WACA Member
Forum Posts: 200
Member Since:
June 12, 2013
sp_UserOfflineSmall Offline
4
June 23, 2025 - 5:30 pm
sp_Permalink sp_Print

1873man said
Yes it can.

Bob

letter.jpgImage Enlarger

IMG_2719.JPGImage Enlarger



Thanks Bob: That is a very attractive model 1894 alsoLaugh

Avatar
Henry Mero
Member
WACA Member
Forum Posts: 1513
Member Since:
December 21, 2006
sp_UserOfflineSmall Offline
5
June 23, 2025 - 5:53 pm
sp_Permalink sp_Print

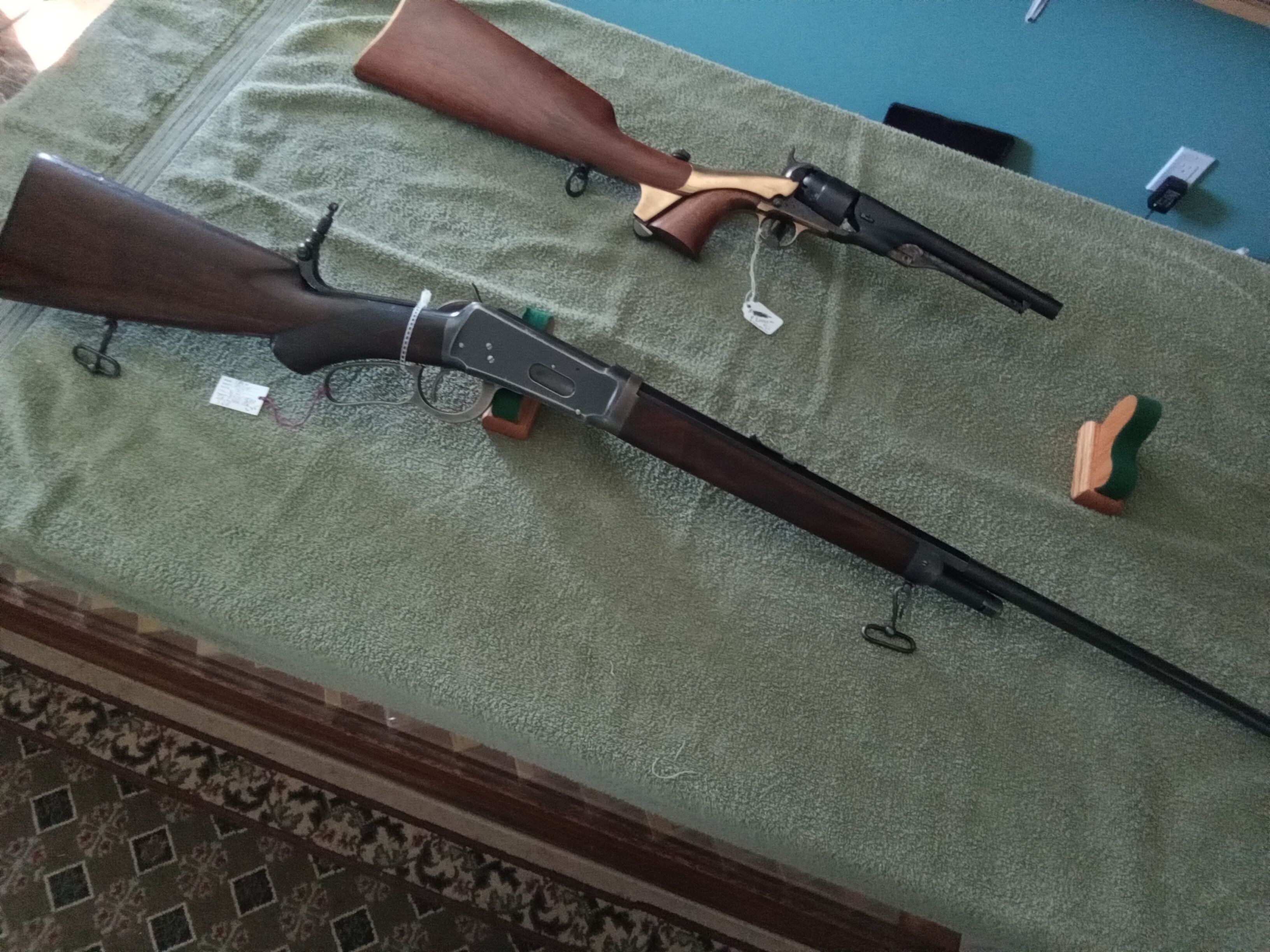

Pat; No one has mentioned it , 26″ was the standard length barrel for the 1894 and there fore would not be mentioned in the letter. Heres a close 26″ lite weight t.d. running mate  to Yours. Yours however is prettier.Smile20250623_134540.jpgImage Enlarger



sp_PlupAttachments Attachments

W.A.C.A. life member, Marlin Collectors Assn. charter and life member, C,S.S.A. member and general gun nut.

Avatar
steve004
Member
WACA Member
Forum Posts: 5451
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
6
June 23, 2025 - 6:30 pm
sp_Permalink sp_Print

Henry Mero said
Pat; No one has mentioned it , 26″ was the standard length barrel for the 1894 and there fore would not be mentioned in the letter. Heres a close 26″ lite weight t.d. running mate  to Yours. Yours however is prettier.Smile20250623_134540.jpgImage Enlarger





Henry –

Don’t see that flexible base rear sight very often Cool

Avatar
antler1
Member
WACA Member
Forum Posts: 200
Member Since:
June 12, 2013
sp_UserOfflineSmall Offline
7
June 23, 2025 - 8:50 pm
sp_Permalink sp_Print

So on a full octagon 26 inch extra lightweight 1894 barrel, what would the measurement be at the muzzle?

Avatar
oldcrankyyankee
Member
WACA Member
Forum Posts: 1047
Member Since:
February 17, 2022
sp_UserOfflineSmall Offline
8
June 23, 2025 - 10:25 pm
sp_Permalink sp_Print

No expert here, but I believe on the 86’s they used a .005″ taper per inch of barrel. Where as standard was .002″ taper per inch. Possibly they used the same ratio on the 1894?
