Does anyone have a diagram of how the bolt stop works on a Winchester 54 in 22 Hornet? Mine just pulls straight out the back without pulling the trigger or anything. Hopefully it’s something I can adjust myself or find a replacement part for.
April 9, 2012
Offline
Someone has modified the trigger which holds bolt in place by either stoning it or replacing it. The fix is to install a stopper on the inside of receiver where receiver sight mounts. Tom
November 5, 2014
Offline
Hi MSU-
As Tom said, this is usually an issue with the trigger. Specifically someone replacing the two-stage M54 trigger with something else…

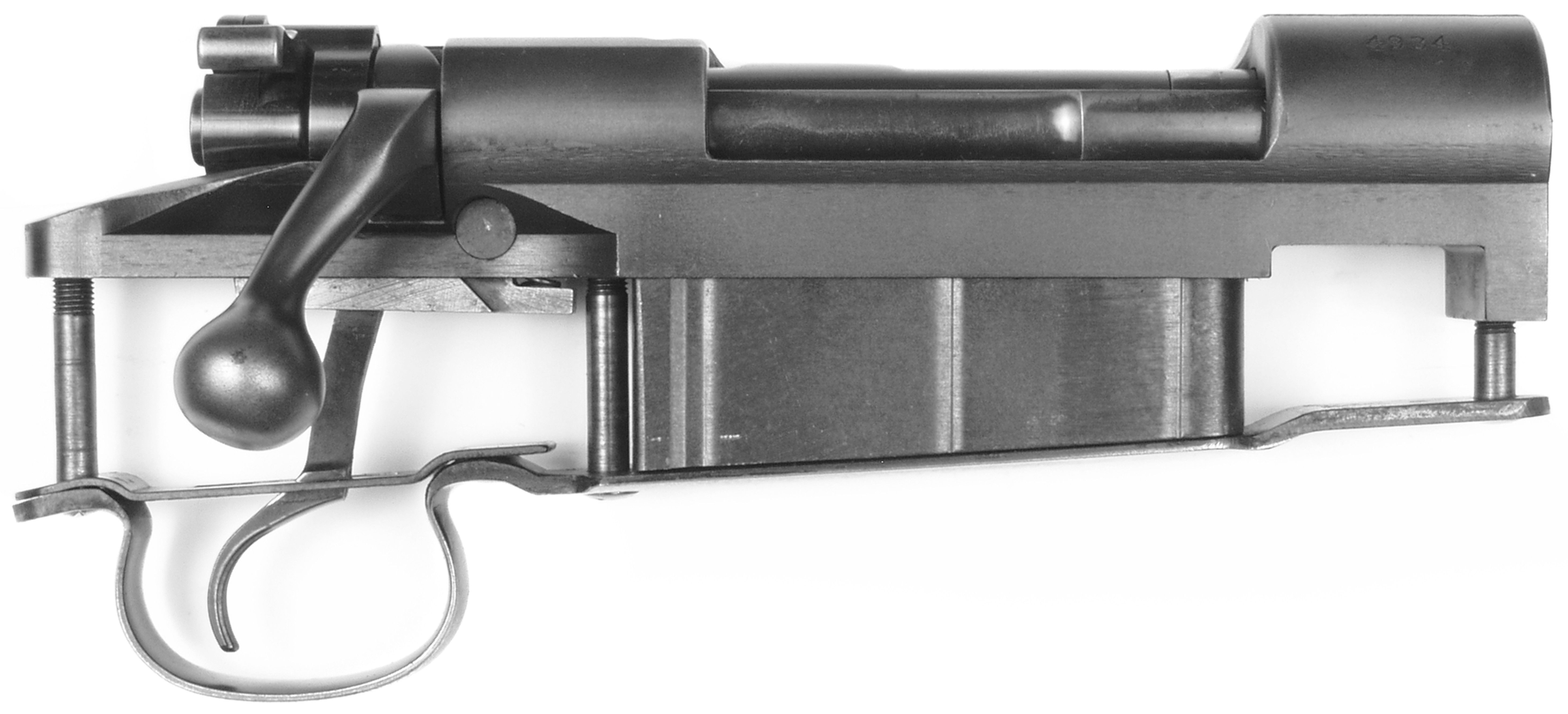

On the M54 with it’s classic Mauser-style two-stage trigger, the sear (protruding into the bottom of the bolt raceway) acted as the bolt stop. This was changed when the M70 went to its override trigger set-up in 1936 and the bolt stop became a separate part. This is a pic I have handy of the M54 action. If you’re familiar with M70s, you can instantly tell the trigger is different…

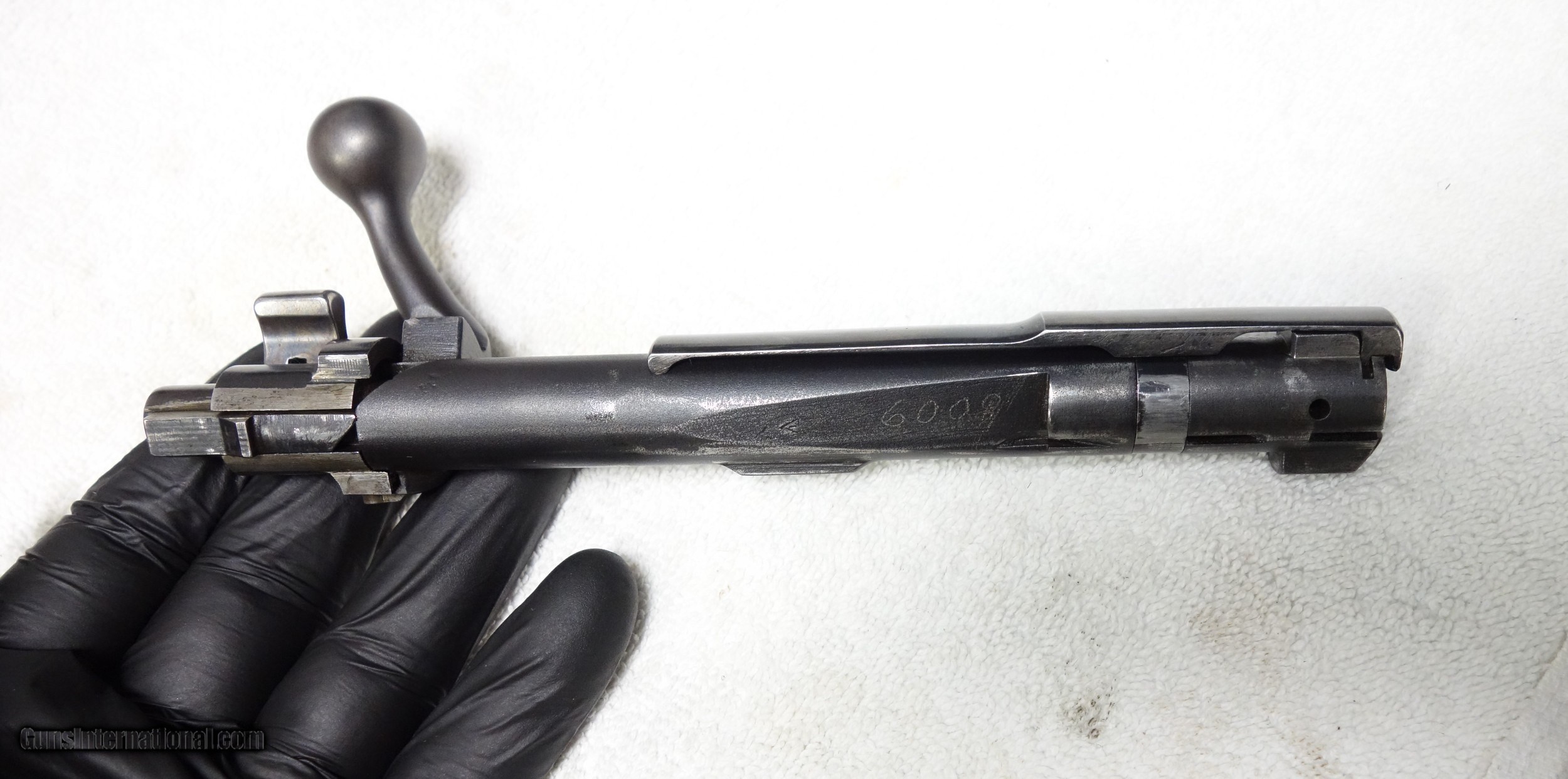

On the M54, bolt travel was limited by the sear contacting a beveled surface on the bottom of the bolt body. The length of bolt throw was determined by where this bevel was placed, not how it worked. The next pic is the bottom of a M54 bolt, showing the beveled surface. This is a 270 WCF, so the bevel is in a different place than it would be on a 22 HORNET. But the idea is the same…
When I have run across your problem before (bolt comes all the way out = no functioning bolt stop), it’s been b/c someone replaced the M54 trigger with something like a single stage replacement trigger for a Mauser. It works on a Mauser, but not a M54…
Tom’s suggestion is the pragmatic way of converting the trigger on a M54, i.e. put something into the left lug raceway to hit the left locking lug and control bolt travel that way. My approach would be to replace the trigger with an original M54 part (assuming that’s your problem). There’s nothing wrong with a two-stage trigger when you get the hang of it!!!
Hope this helps,
Lou
WACA 9519; Studying Pre-64 Model 70 Winchesters
August 8, 2024
Offline
I have found that some times the bolt stop will stick. I had a Savage Model 20 that did this. A good cleaning, and some oil, then work the bolt stop up, and down. You may be able to fix the problem.
June 13, 2025
Offline
It looks like someone must have done some honing to the area that meets with the trigger.
April 9, 2012
Offline

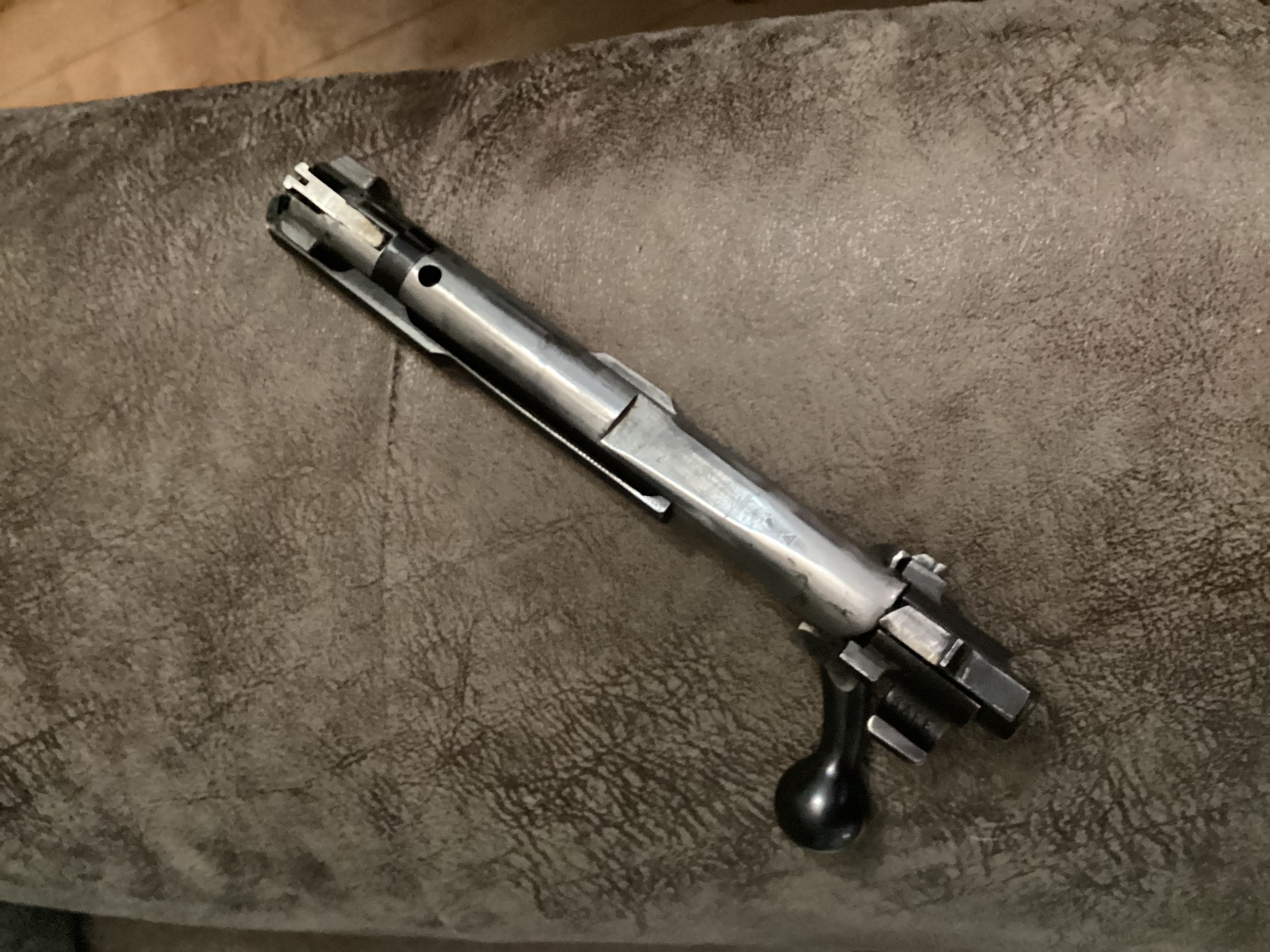

Yes some one has really did a job on the bolt .They have removed metal on both edges and created a very narrow portion for the trigger to engage on.I hope you know a good welder /machinist to attempt to repair. A replacement bolt would be nice if it could be found .I have included a photo of untouched hornet bolt Tom
