Short rifle, I believe…
Avatar
jsgwoodsman
Member
WACA Member
Forum Posts: 308
Member Since:
September 21, 2016
sp_UserOfflineSmall Offline
1
April 3, 2024 - 12:03 pm
sp_Permalink sp_Print sp_EditHistory

I’m wondering about this 1907 built 1894 rifle in 32ws.

It has a Nickel Steel 20” barrel and a 2/3? magazine

The forearm measures at approximately 9 3/8”

I can’t find where this forum discusses muzzle diameter on the 20” SR’s but this one is approximately .729-.730

It where’s a “smokeless” 32ws marked rear barrel sight, and unfortunately a Redfield on the receiver.

Looks like it’s seen a lot of honest use.

Im terrible at searching and successfully finding things on this forum but figured others would chime in:

1) What would be proper terminology for this length magazine?

2) Is the muzzle diameter correct for a 20” SR?

3) Is it known how many 20” nickel steel barrels were produced?

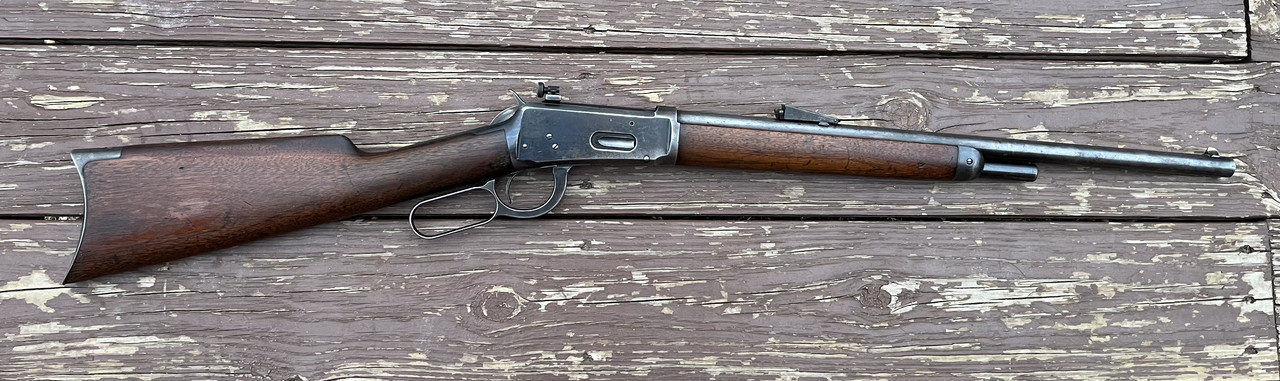

https://i.postimg.cc/2SBxPHqn/IMG-9647.jpgImage Enlarger

https://i.postimg.cc/xTNHCX02/IMG-9641.jpgImage Enlarger

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12979
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
April 3, 2024 - 4:00 pm
sp_Permalink sp_Print

Do you have any additional pictured of the rifle… specifically a close up of the magazine tube end cap, the front sight dovetail, and the muzzle face?

Based on what I am seeing, my initial thought (reaction) is that it is a cut down standard Sporting Rifle.  The magazine tube length is neither a ½ nor a ⅔ length magazine.  If it is factory original, it was special ordered for a specific number of cartridges (most likely four).

Winchester manufactured several thousand 20-inch Nickel Steel rifle barrels, and several hundred thousand 20-inch carbine barrels.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
jsgwoodsman
Member
WACA Member
Forum Posts: 308
Member Since:
September 21, 2016
sp_UserOfflineSmall Offline
3
April 3, 2024 - 10:35 pm
sp_Permalink sp_Print

I’ll get them Bert, my gut reaction was cut down barrel – the taper looks off.

Avatar
jsgwoodsman
Member
WACA Member
Forum Posts: 308
Member Since:
September 21, 2016
sp_UserOfflineSmall Offline
4
April 6, 2024 - 10:19 pm
sp_Permalink sp_Print

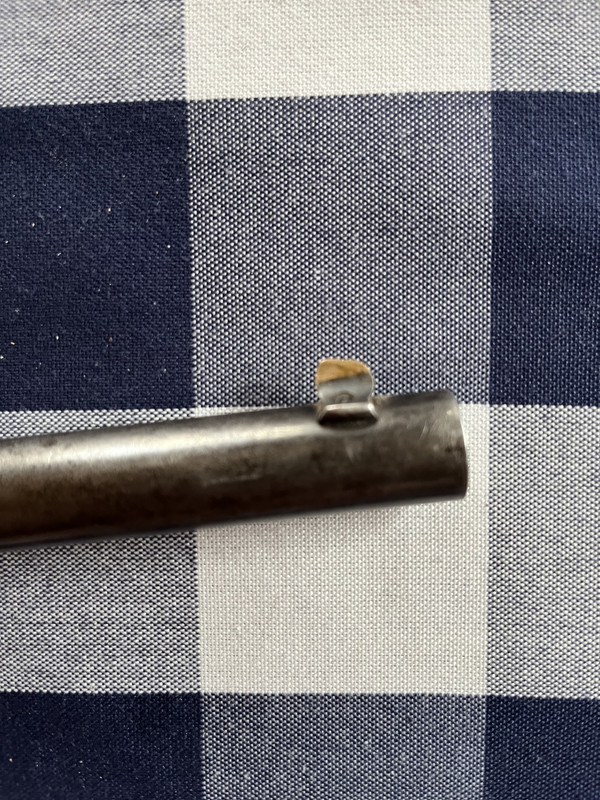

https://i.postimg.cc/RVpCqYjg/IMG-9742.jpgImage Enlarger

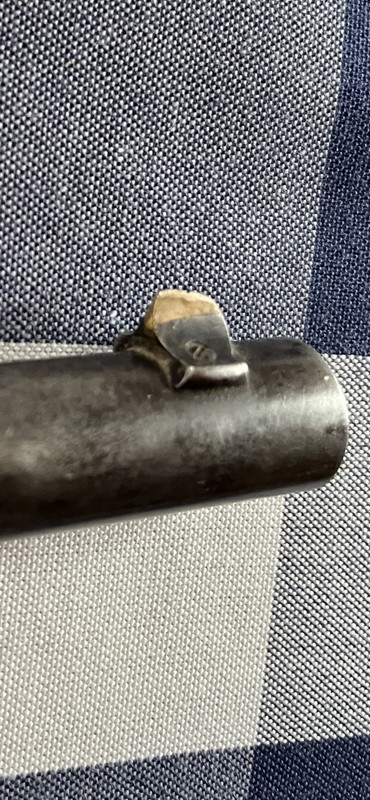

https://i.postimg.cc/rsFcwGg6/IMG-9743.jpgImage Enlarger

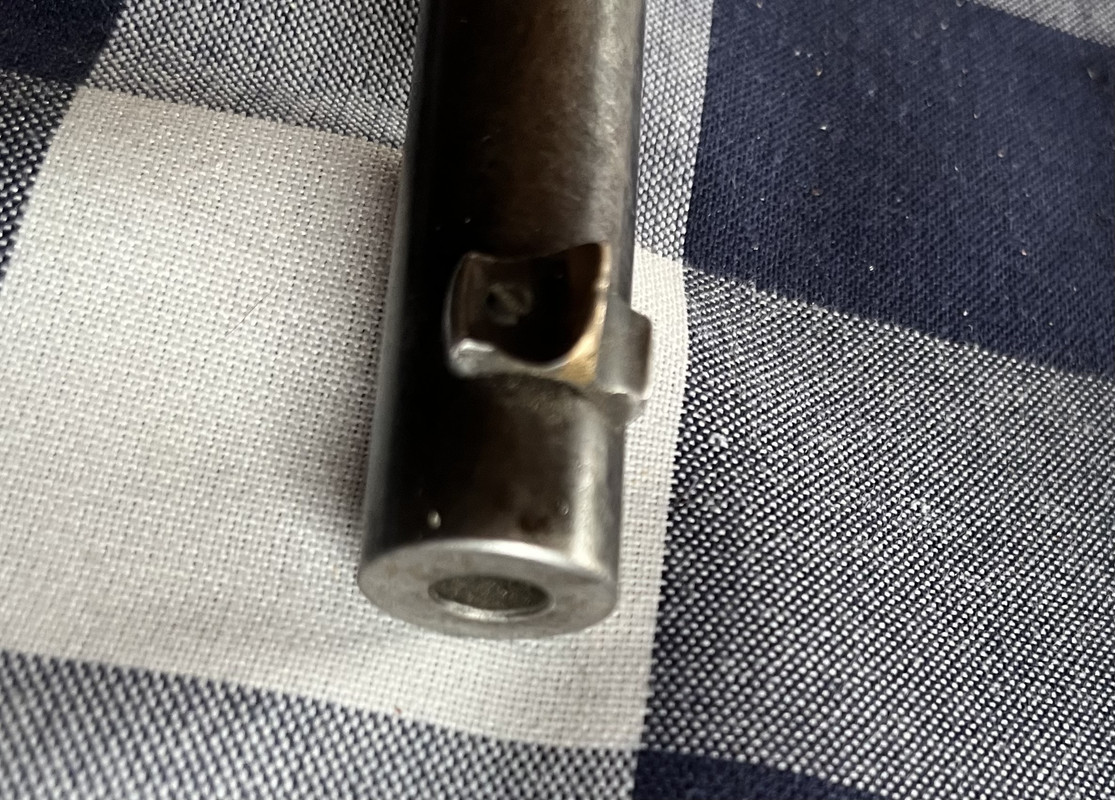

https://i.postimg.cc/wBL9fj3r/IMG-9744.jpgImage Enlarger

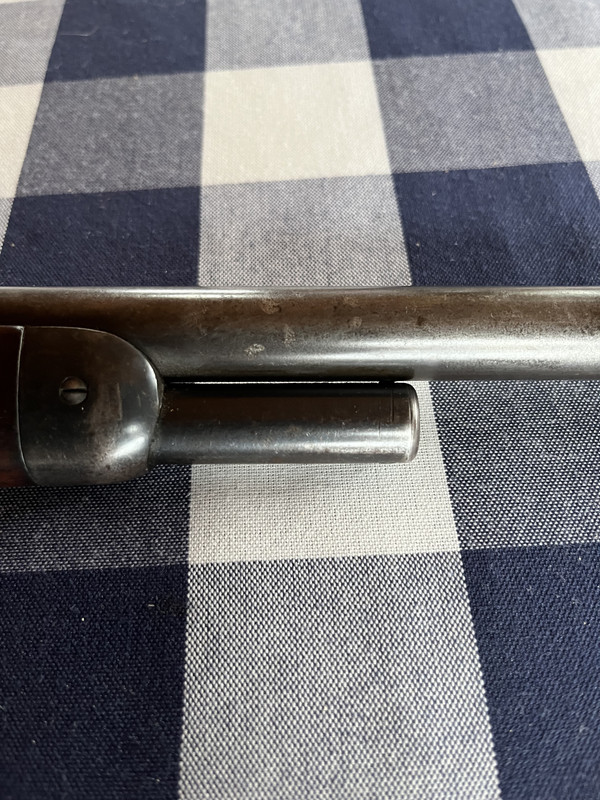

https://i.postimg.cc/h4pc3wPK/IMG-9745.jpgImage Enlarger

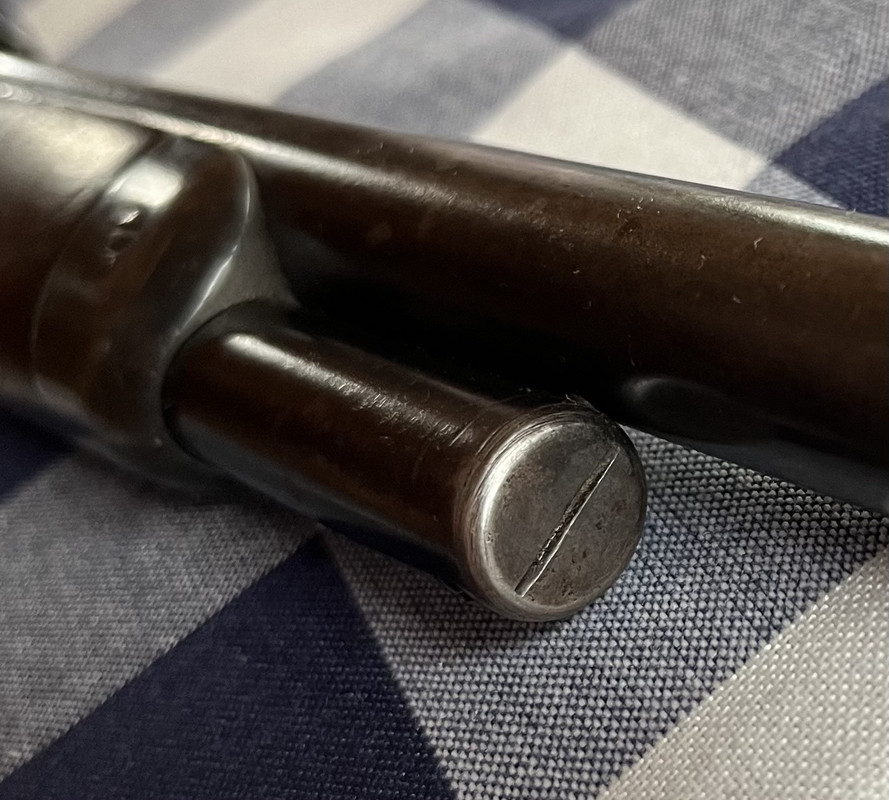

https://i.postimg.cc/y8wVyZ69/IMG-9747.jpgImage Enlarger
https://i.postimg.cc/SsGk4167/IMG-9748.jpgImage Enlarger

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12979
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
5
April 6, 2024 - 11:49 pm
sp_Permalink sp_Print

My money is on a cut down rifle.  Specifically, the front sight appears to be too close to the muzzle, and the magazine tube end cap is the wrong type for a short mag.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
jsgwoodsman
Member
WACA Member
Forum Posts: 308
Member Since:
September 21, 2016
sp_UserOfflineSmall Offline
6
April 7, 2024 - 12:33 am
sp_Permalink sp_Print

I appreciate the feedback Bert!

I’m not familiar with the specifics of the short rifles but the thing that stuck out to me the most was the muzzle diameter seemed too large.

I picked it up very reasonably so I wasn’t worried about originality either way, but figured I’d ask.
