Question regarding a Model 1894 with a "heavy' barrel
Avatar
John C.
Member
WACA Guest
Forum Posts: 4
Member Since:
May 31, 2018
sp_UserOfflineSmall Offline
1
June 13, 2018 - 7:33 pm
sp_Permalink sp_Print

I have a Model 1894 (s/n 43581, caliber 32, half mag ) that, to my untrained eye, looks to have a heavier than normal barrel. Here are some pictures comparing that rifle to one of my other 32s (s/n 1908232, full mag). Is that barrel extra heavy?
Thanks,
John

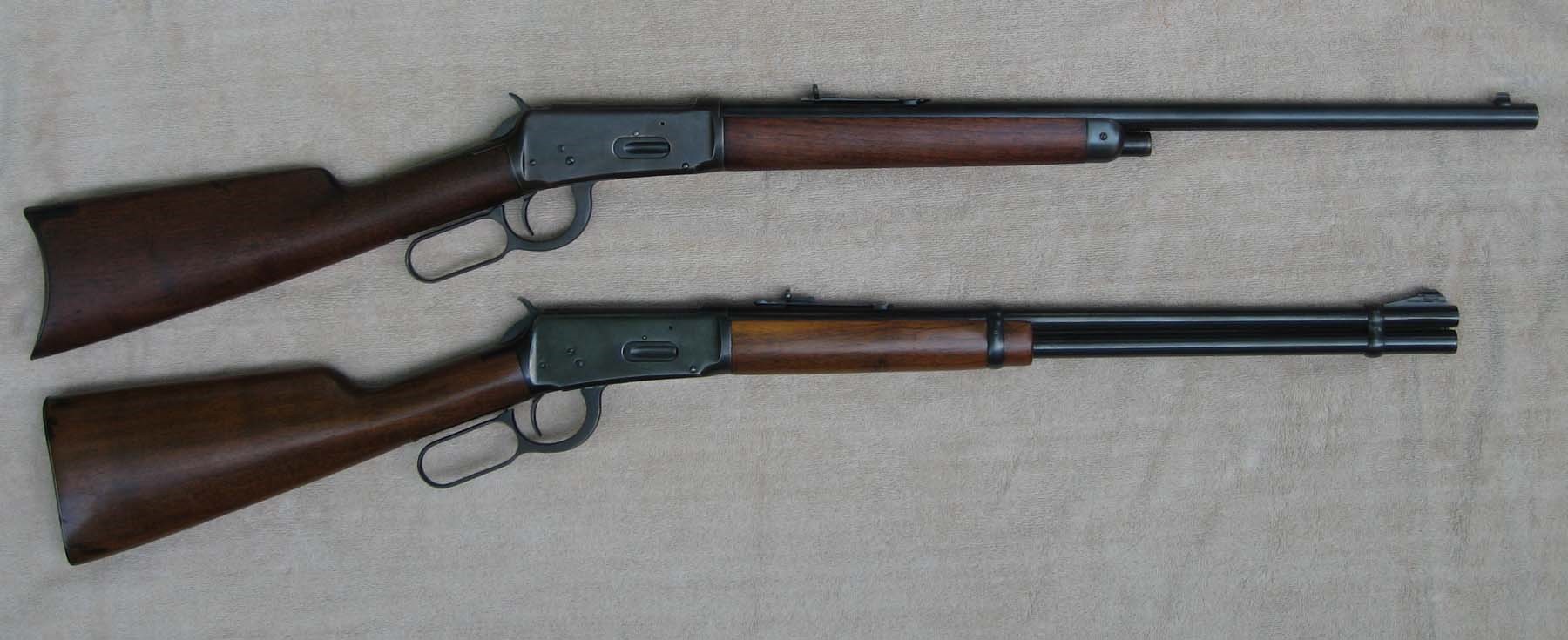

32s_SideBySide.jpgImage Enlarger

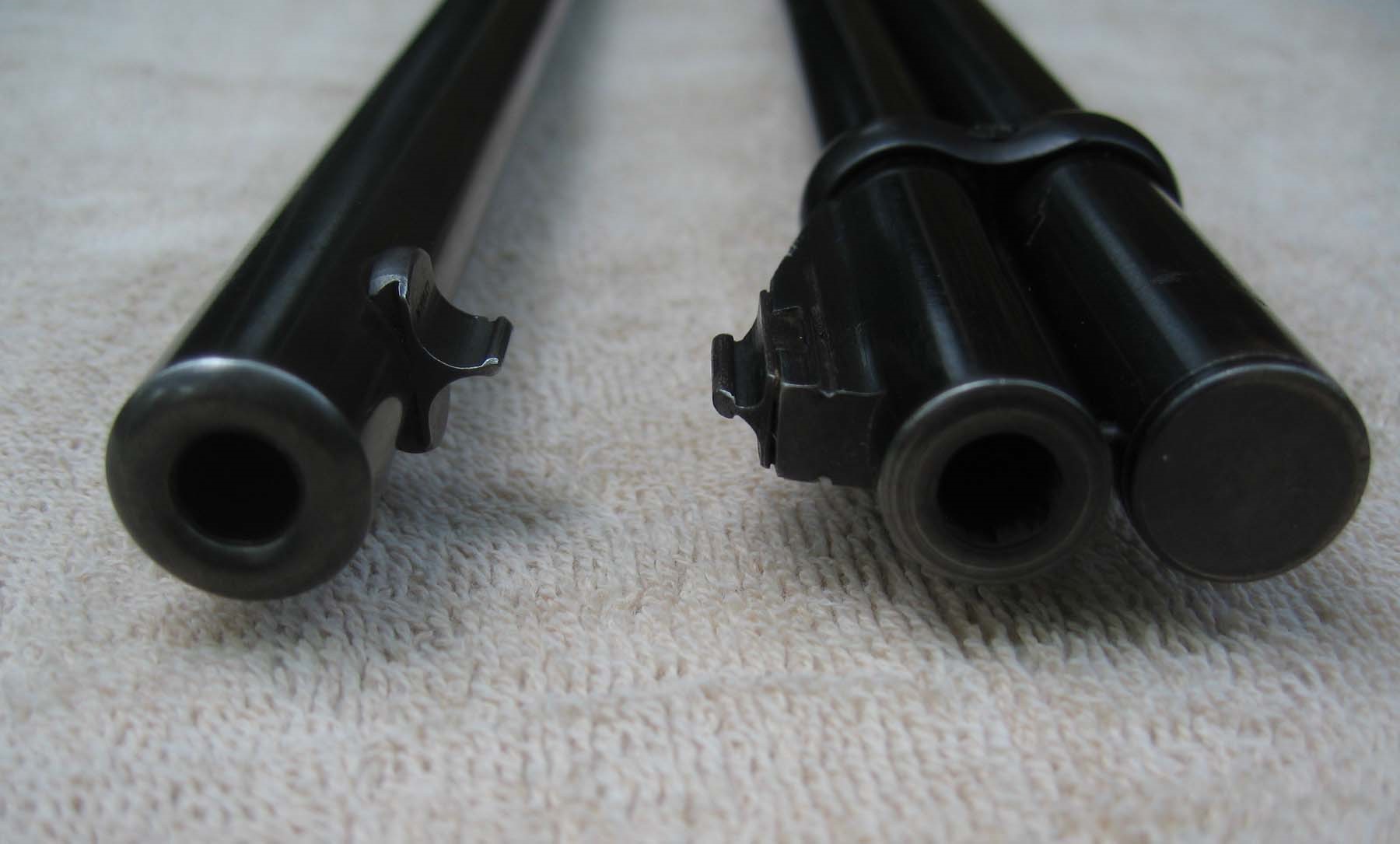

32_Muzzles_SideBySide.jpgImage Enlarger
32_barrels_SideBySide.jpgImage Enlarger

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4728
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
2
June 13, 2018 - 8:07 pm
sp_Permalink sp_Print

John,

Just comparing the carbine which should have a 20″ barrel, the rifle has a 22″ barrel. A standard 94 rifle had a 26″ barrel. Unless you have a short rifle which can be verified by a Cody letter, the rifle has had the barrel cut short which would make it larger diameter since there is a taper to them.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
deerhunter
Troutdale, OR
Member
WACA Member
Forum Posts: 2717
Member Since:
June 26, 2013
sp_UserOfflineSmall Offline
3
June 13, 2018 - 8:39 pm
sp_Permalink sp_Print

The muzzle is crowned on the rifle (should be flat), most likely indicating a shortened barrel.  The magazine tube has been shortened as well–it should have the rounded (rather than flat) end-cap.

Don

Avatar
pdog72
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1285
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
4
June 14, 2018 - 12:19 am
sp_Permalink sp_Print

I agree with Don, its a cut down barrel thus giving it the appearance of being a bit heavier. You are also comparing a rifle barrel to a carbine which was heavier to begin with.

                                                                               ~Gary~


Avatar
1892takedown
South Texas
Member
WACA Member
Forum Posts: 1119
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
5
June 14, 2018 - 1:10 am
sp_Permalink sp_Print sp_EditHistory

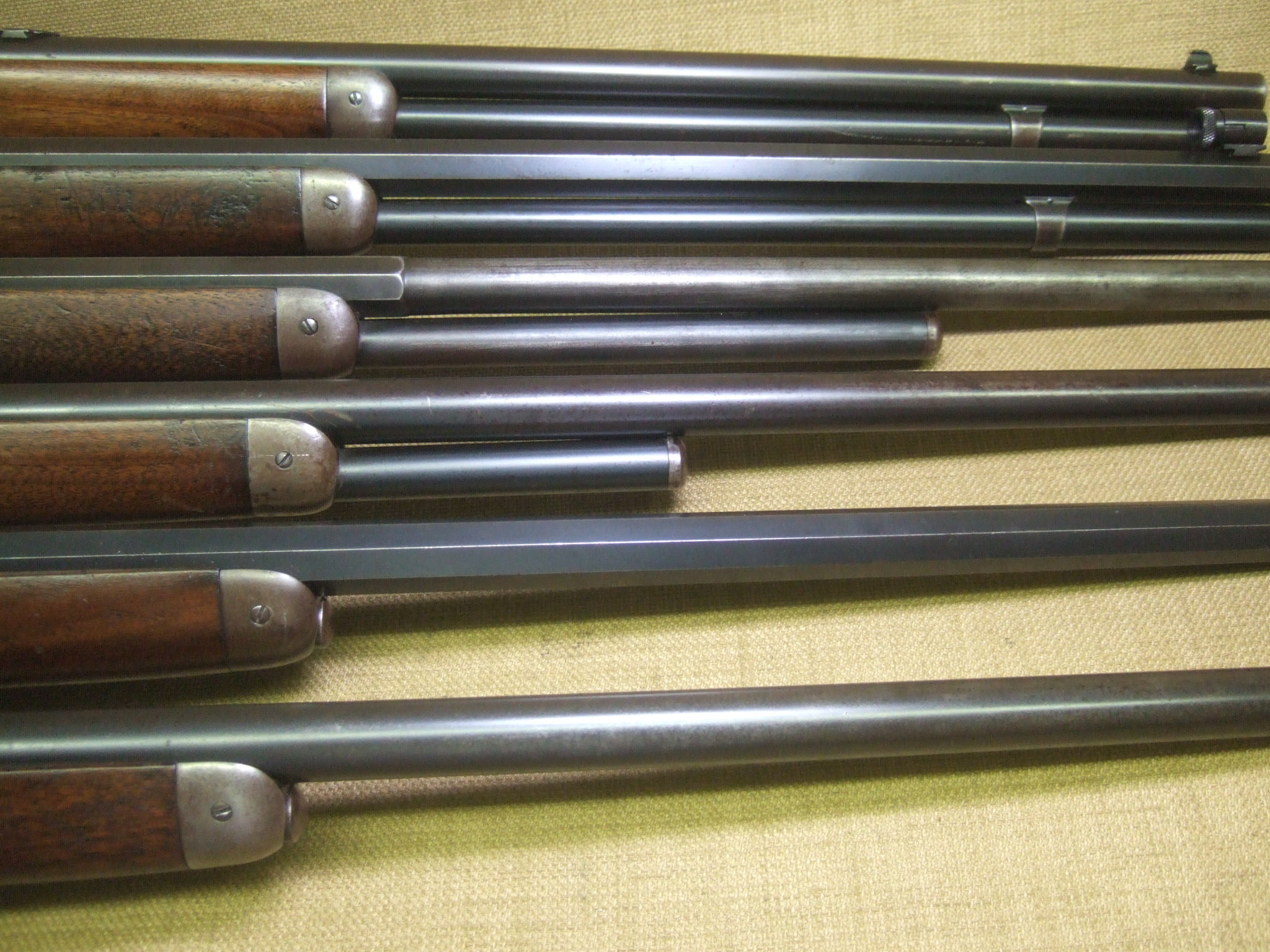

The magazine tube looks to be cut, on something that short it would either have a button magazine or a rounded magazine tube end cap that engages a slot in the barrel.  Examples below with a typical button mag at bottom two guns, and shorter than full on the third and fourth from the bottom.

forearm-cap-002.JPGImage Enlarger

The barrel diameter on an 1894 round barrel rifle will vary.  To give you some examples of a few 1894 barrel dimensions taken at the muzzle on round bbl rifles:

SN 1M+, 38-55, FM, 26″ Rnd bbl = .699″

SN 422K, 38-55, 1/2 Mag, 26″ 1/2 Oct bbl = .654″

SN 270K, 32WS, 1/2 Mag, 26″ 1/2 Oct bbl = .660″

SN 80K, 30WCF, FM, Lettered 24″ Rnd bbl = .702″

SN 10K, 38-55, FM, 26″ Rnd bbl = .695″

SN 10k, 38-55, FM 26″ Rnd bbl = .686″



As for the crowned barrel, Ive only seen one example that lettered that way and it was an 1886 that had lots of bells and whistles.  The standard is flat across the end of the muzzle on rifles.
