Pre-64 - Bull Gun Marksman Stock Information
Avatar
Member
WACA Guest
Forum Posts: 5
Member Since:
February 10, 2021
sp_UserOfflineSmall Offline
1
February 10, 2021 - 3:44 pm
sp_Permalink sp_Print

Hello,

New to this site and looking for some information regarding the Pre-64 Bull Gun (300H&H) Stock.  Is their any difference in stock dimensions between this and other non Bull Gun stocks?  Such as National Match models, etc?  Also, aside from Roger Rule’s book any really good references on this topic?

Thanks

Avatar
Louis Luttrell
Winchester, VA
Member
WACA Member
Forum Posts: 1264
Member Since:
November 5, 2014
sp_UserOnlineSmall Online
2
February 10, 2021 - 6:06 pm
sp_Permalink sp_Print sp_EditHistory

Hi sowinskiaaron-

Rule’s book is the best information available on the topic.

The internal differences include, as you said, the barrel channel and in the case of 300 H&H MAGNUM the length of the magazine well opening.  The H&H magazine box is about 3/16″ longer than any of the standards.  So to adapt, say, a Target rifle stock to fit a 300 H&H Bull Gun you’d need to remove about that much wood from the front of the magazine well opening in the stock as well as change the barrel channel.

As far as external dimensions, there are some differences related to period of manufacture, but at any given point in time the National Match, Target, and Bull Gun stocks were the same.  Rule does a fairly good job showing the period differences except in the case of the very early Marksman #1 and #2 versus #3 stocks (#1, #2, #3 are pretty much pre-war cloverleaf tang stocks).  If you are looking at a very early Bull Gun I can post some pictures that may show the differences in a little better than Rule.

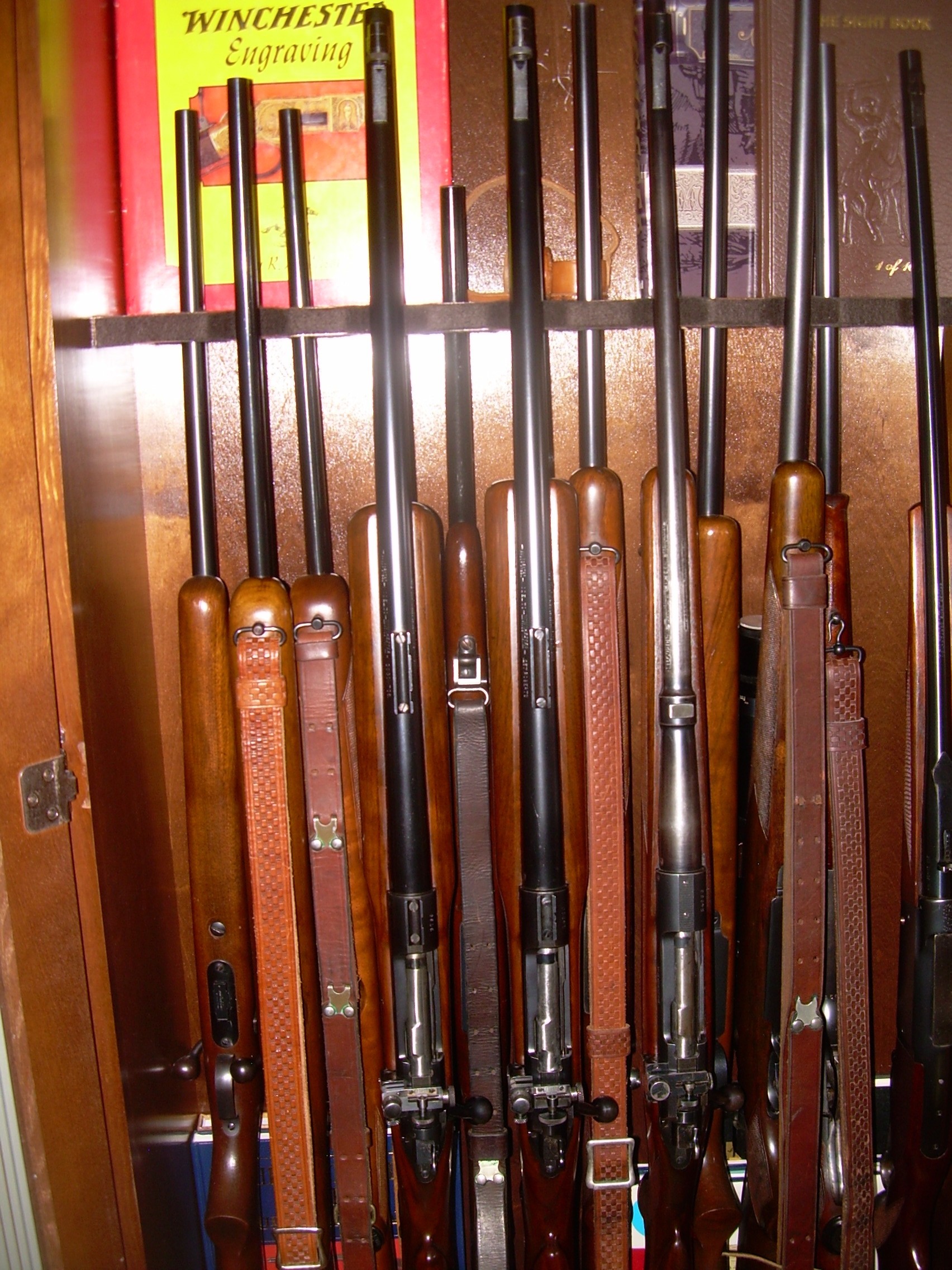

One thing to note with these is that the #2 (with the very rounded fore end) is actually slightly shorter than the #3.  Note in the attached photo that the action screws on the two Marksman stocks (#2 left, #3 right) are at the same level.  The difference is in the length of the fore end itself:


Hope this helps… Smile

Lou

sp_PlupAttachments Attachments

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
Member
WACA Guest
Forum Posts: 5
Member Since:
February 10, 2021
sp_UserOfflineSmall Offline
3
February 10, 2021 - 8:02 pm
sp_Permalink sp_Print

Thank you Lou for the very helpful information and picture.  As you deduced from another post I am working on a build with a action and bull barrel and wanted to compare dimensions between various actions and chamberings.
