I know this one is pretty old and although it has seen better days and some use I still think it’s a great example.
I would like to know what the members think of this one.
https://www.dropbox.com/sh/cimy1yjow8prpsk/AADY9c-7zZv5vlmcGPClFCAOa?dl=0
April 15, 2005
Offline
Well to start this off, it is a Model 1894 versus a “64” (as you stated in the topic title).
The rear sight mounted on the barrel was originally on a Model 1890 Slide-action .22 rim fire rifle, and it is missing its elevation screw.
The barrel has an odd looking circumferential groove in it just forward of the frame ring (I have no idea why).
The serial number identifies it as a November 1899 production rifle.
Bert
WACA Historian & Board of Director Member #6571L
December 19, 2020
Offline
So sorry, I know there is no such thing as too many but a bunch of these older ones are from before they clearly state Model.
I am learning so thanks so much!
April 15, 2005
Offline
Mgp629 said
So sorry, I know there is no such thing as too many but a bunch of these older ones are from before they clearly state Model.I am learning so thanks so much!
All of the “early” Model 1894s are clearly marked as such on the upper tang (behind the hammer). Winchester moved the model designation to the barrel in the late 1920s. The pictures I have attached show the progression of the various tang marking Types that were used up to serial number 1020000 (March 1928).
Type-1

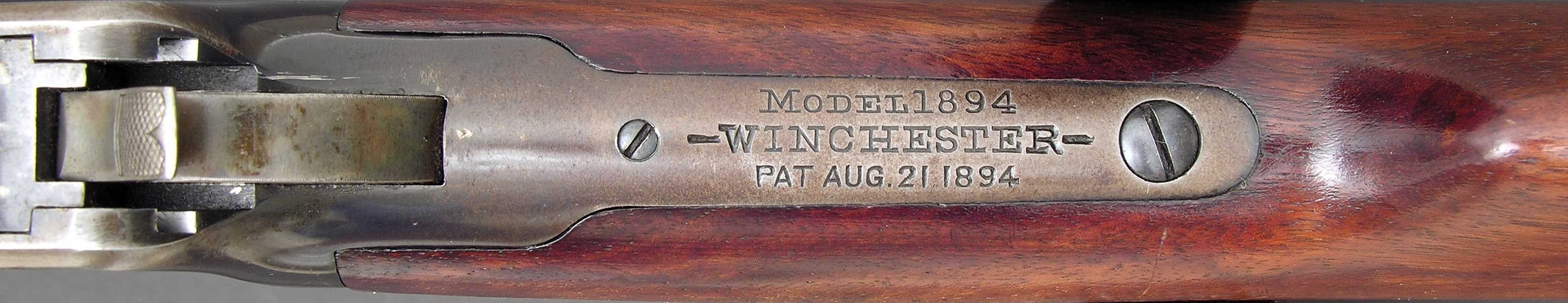

Type-1A
Type-2

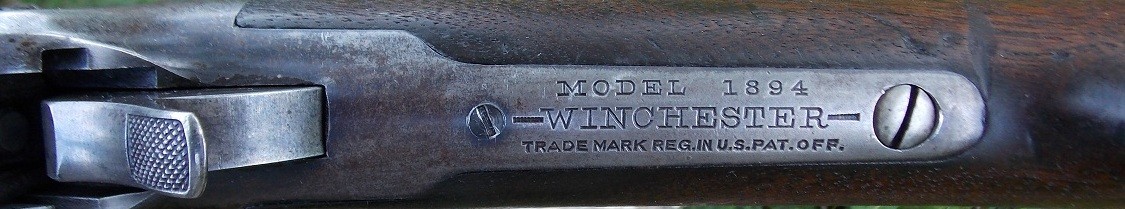

Type-3

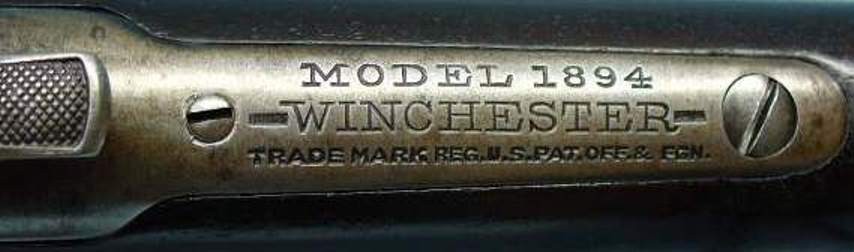

Type-4

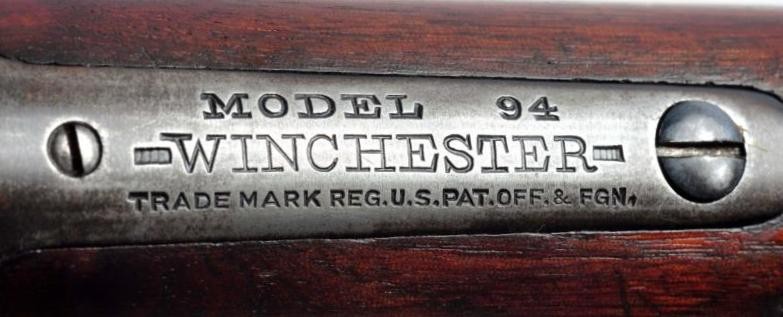

Type-5
Bert
WACA Historian & Board of Director Member #6571L
December 19, 2020
Offline
Beautiful thanks!
November 19, 2006
Offline
Mgp629 said
I know this one is pretty old and although it has seen better days and some use I still think it’s a great example.I would like to know what the members think of this one.
https://www.dropbox.com/sh/cimy1yjow8prpsk/AADY9c-7zZv5vlmcGPClFCAOa?dl=0
Your description and thoughts on this rifle would make more sense to me if you had included a photo of the upper tang.
December 19, 2020
Offline
Should I put the tang pictures in the correct forum?
December 19, 2020
Offline
Here is the tang and the current sight.
if it is not correct just let me know and I’ll try to correct it.
https://www.dropbox.com/s/i1qqruus6joaocr/Photo%20Dec%2029%2C%207%2005%2023%20PM.jpg?dl=0
https://www.dropbox.com/s/i3thep9i8w5ngqg/Photo%20Dec%2029%2C%207%2004%2051%20PM.jpg?dl=0
https://www.dropbox.com/s/01di55e6nrxvkbx/Photo%20Dec%2029%2C%207%2000%2057%20PM.jpg?dl=0
November 19, 2006
Offline
Pictures came through. The tang looks like the Type 1A address to me. I could be wrong. That’s why it’s nice to have so many knowledgeable people around here.
