Model 1873 condition and value
Avatar
Big Mac
Virginia
Member
WACA Member
Forum Posts: 171
Member Since:
September 7, 2017
sp_UserOfflineSmall Offline
1
March 19, 2019 - 3:55 pm
sp_Permalink sp_Print sp_EditHistory

1873 Gurus,

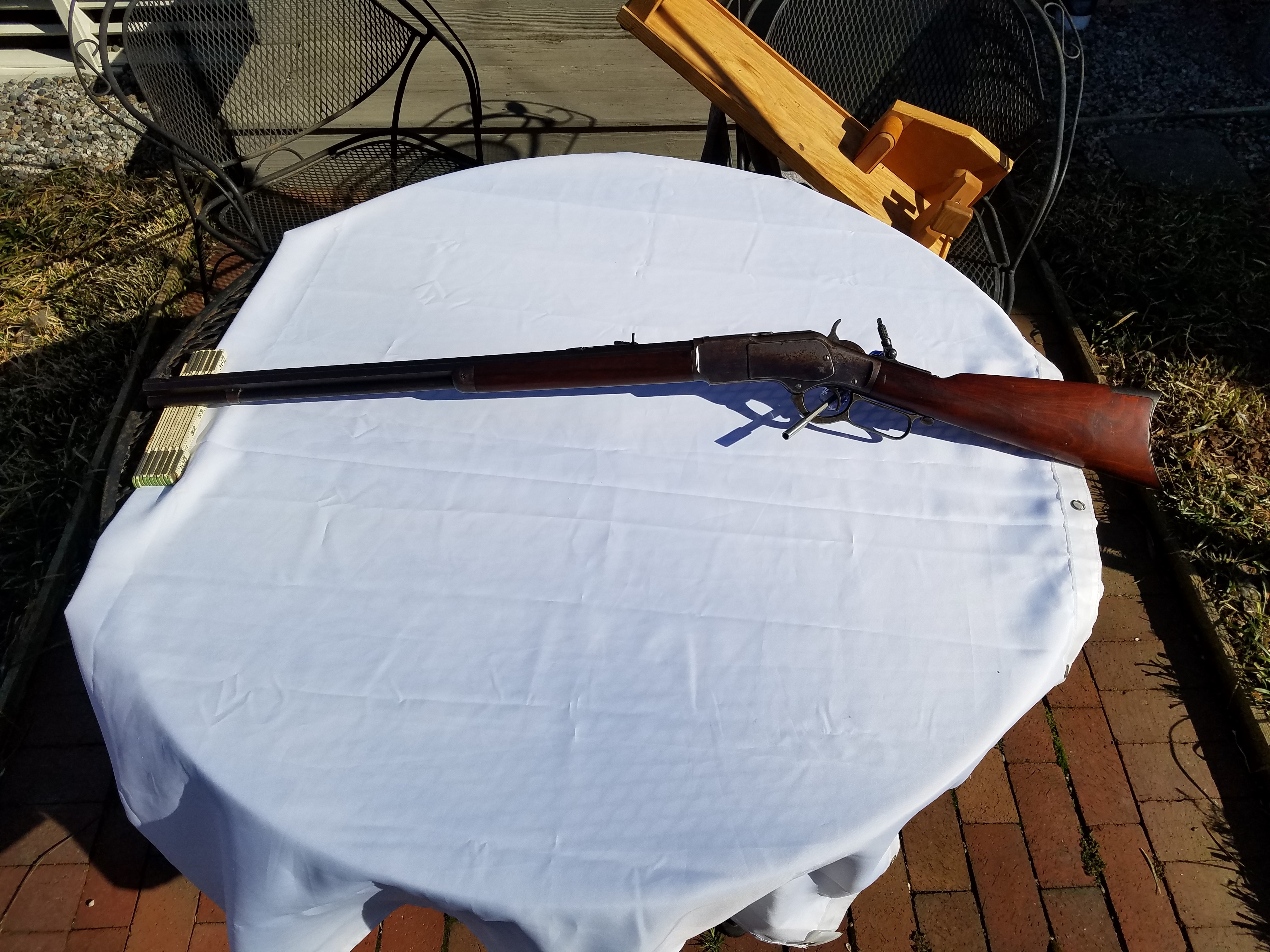

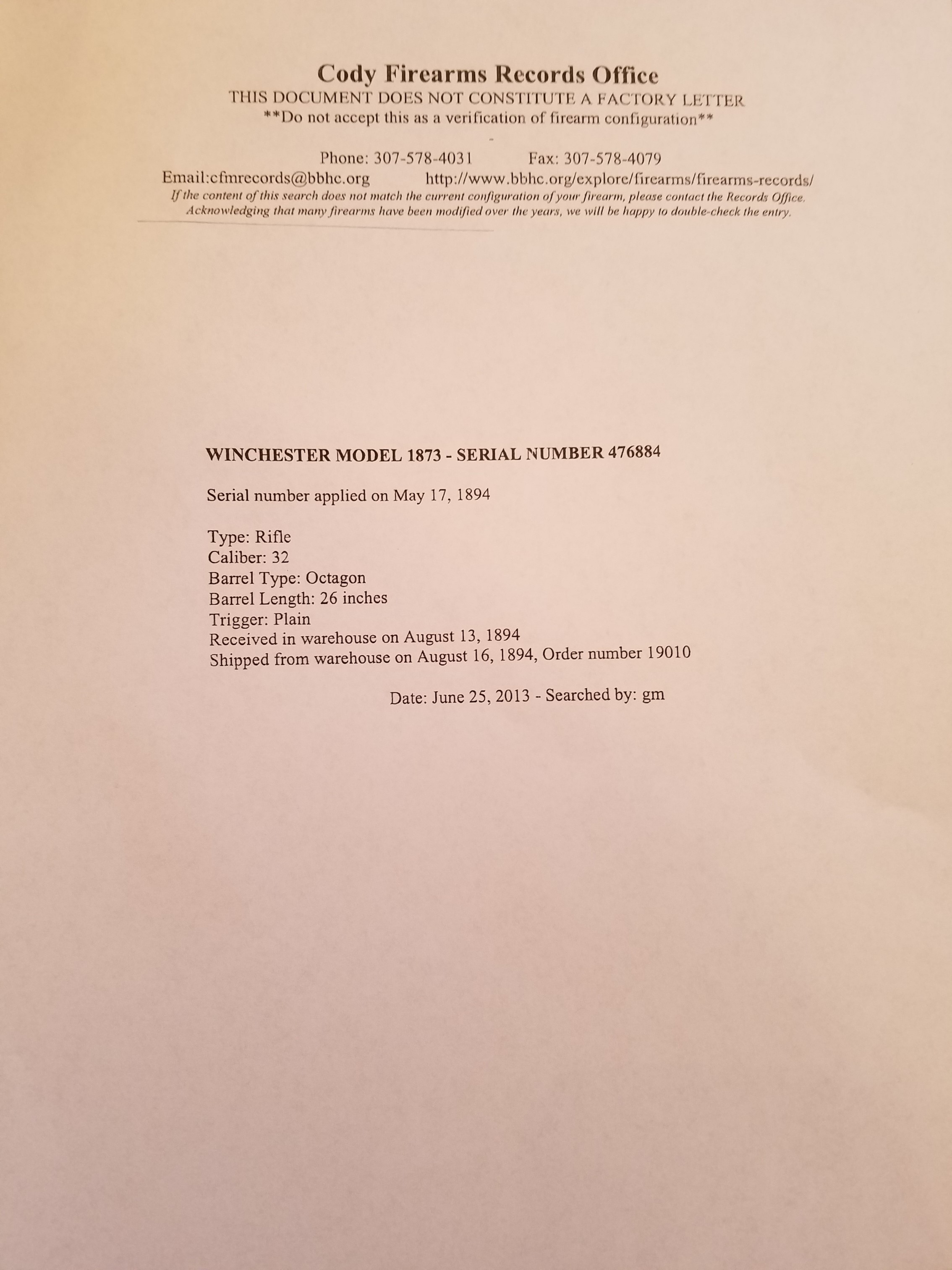

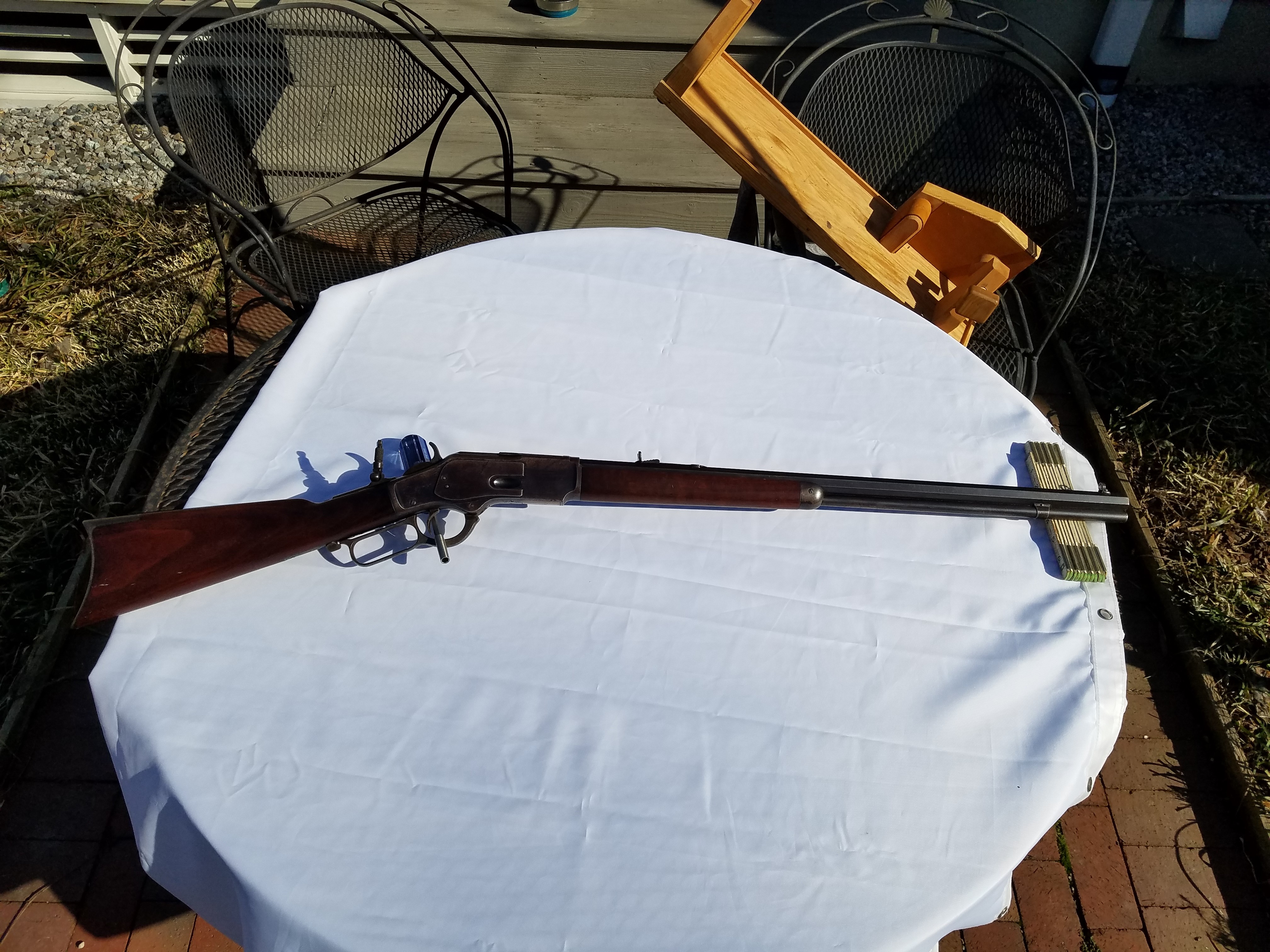

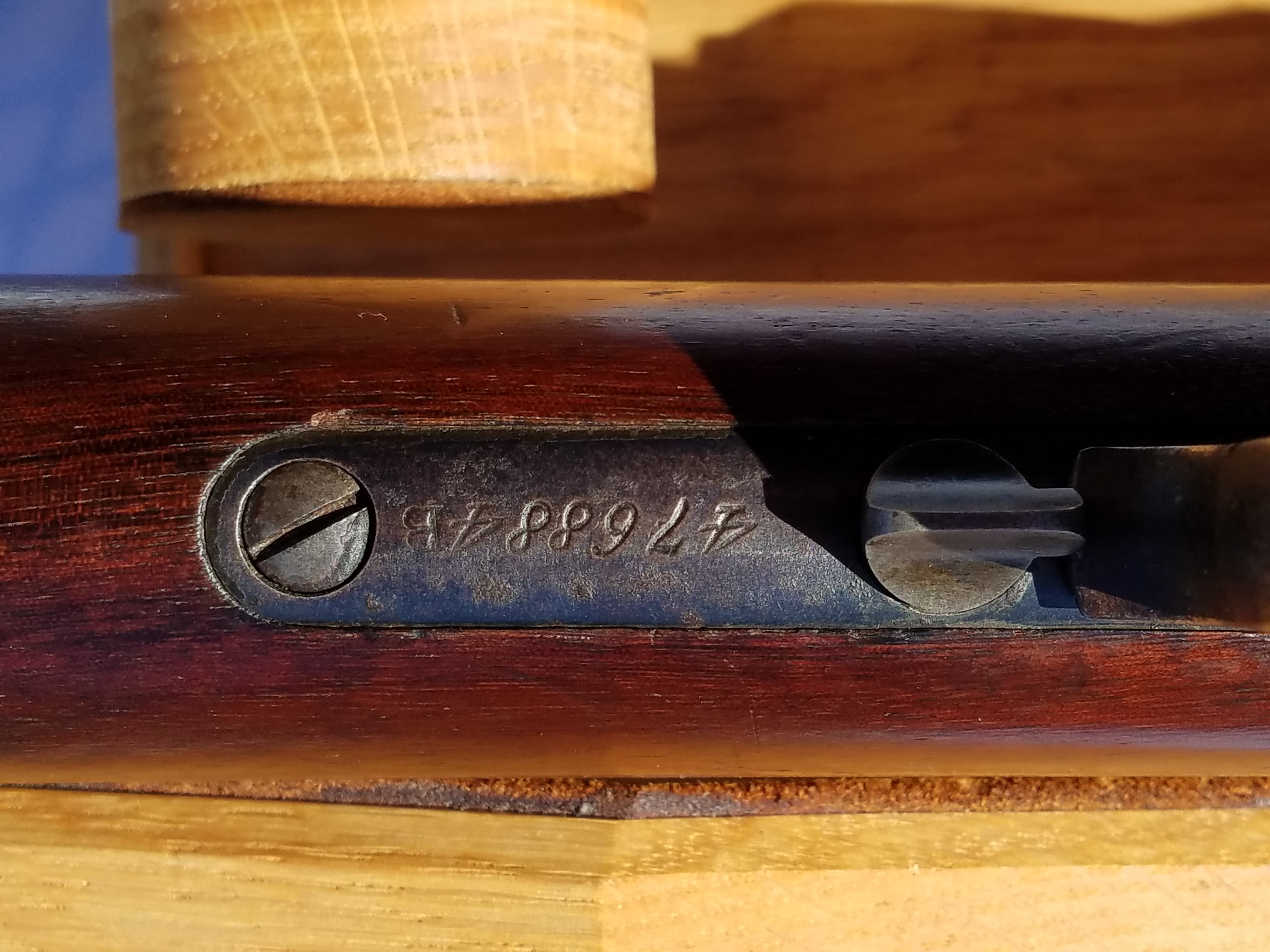

I have model 1873 serial #476884 and am looking for assessment of condition and value.  The Cody serial # search indicates serial # applied May 17, 1894; .32 caliber rifle; 26″ octagon barrel; plain trigger.  Following is current configuration:

24″ octagon barrel, tapered from .924 at receiver to .760 at muzzle.

Barrel mounted semi-buckhorn rear sight with elevator.

Lyman #5 combination front sight.

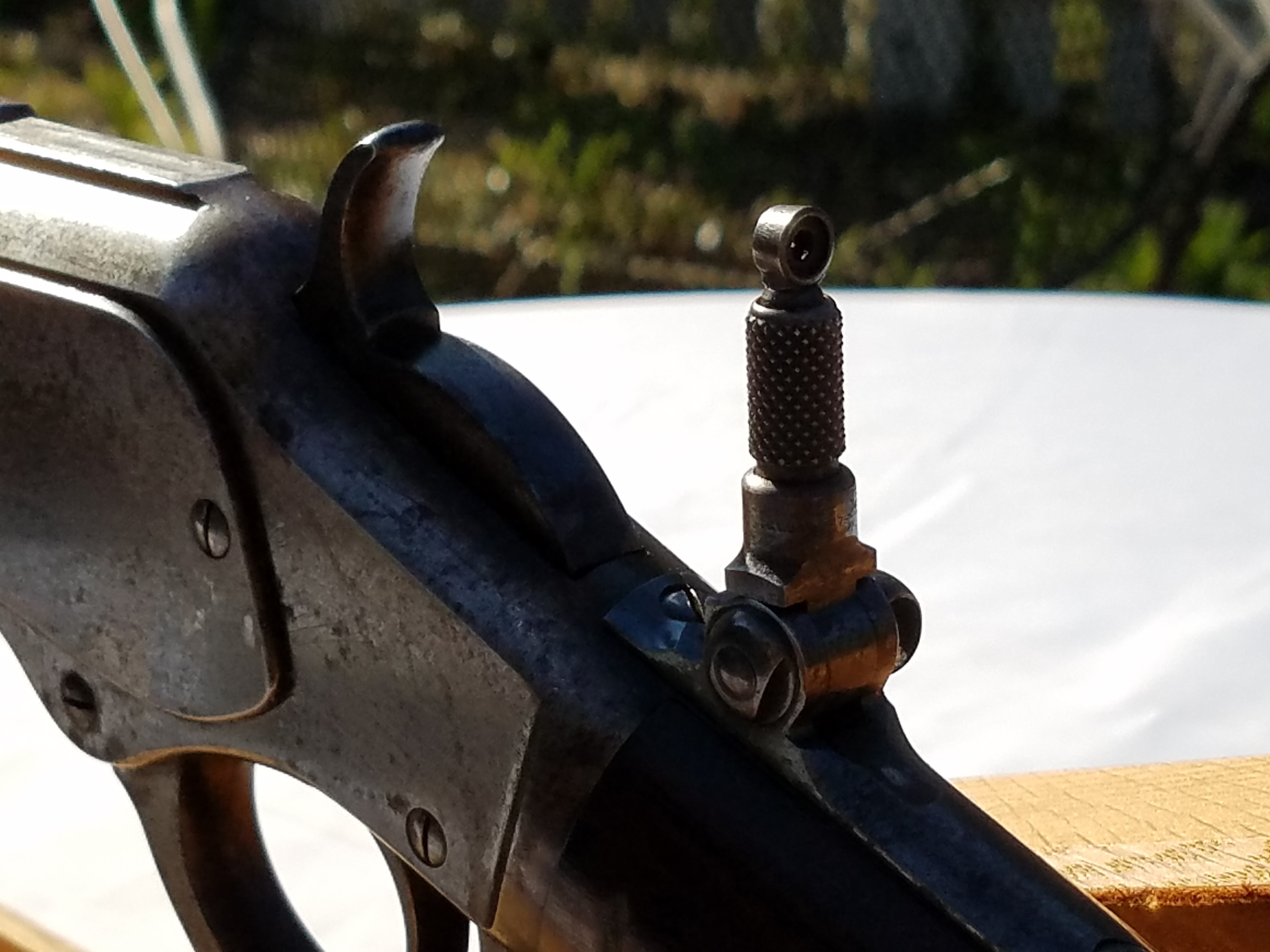

Lyman #1 combination tang rear sight, second variation, application code W.

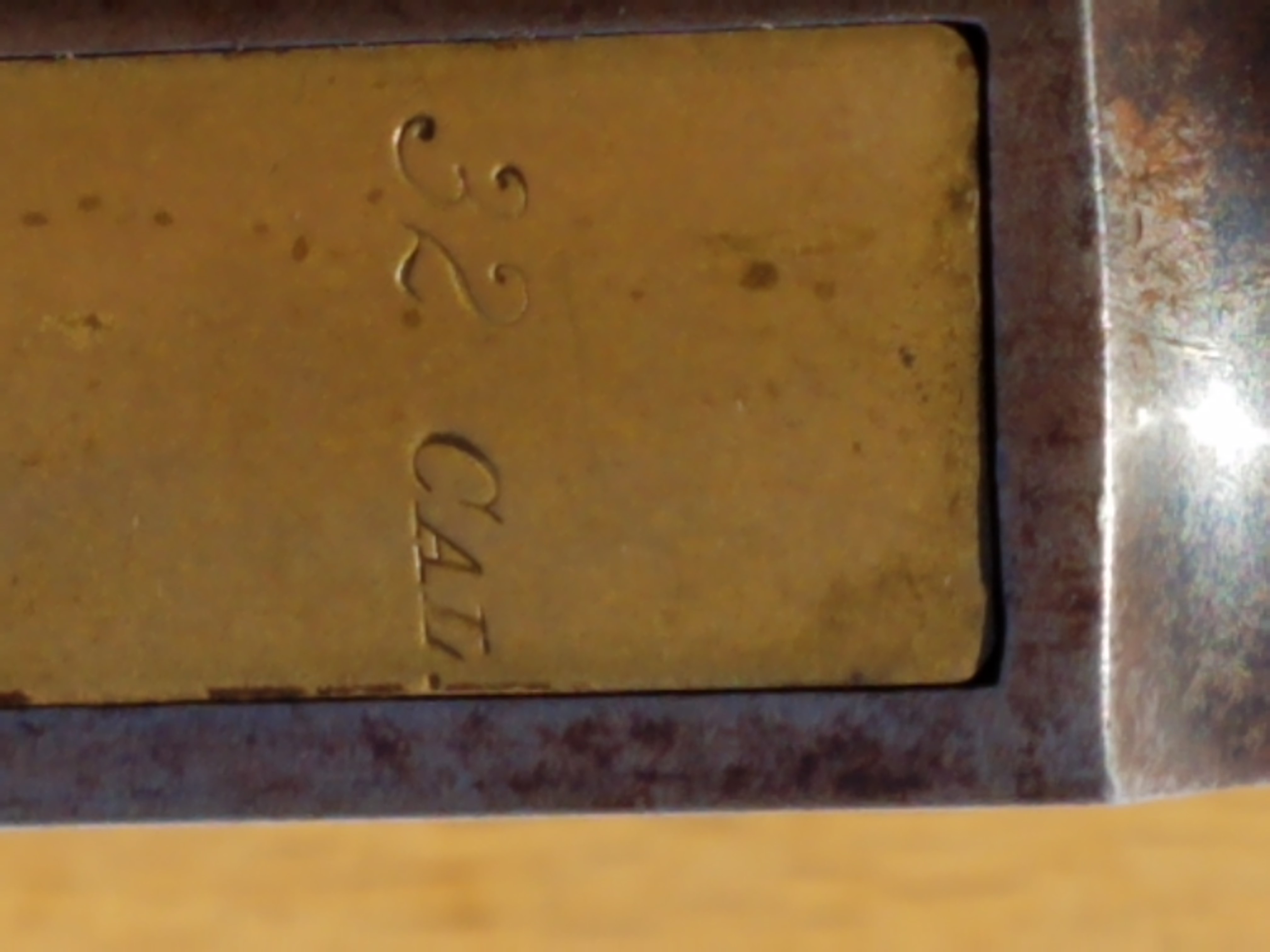

Barrel address marking consistent with .38 caliber barrel marking per Pirkle, page 102 but marked 32 WCF. (?)

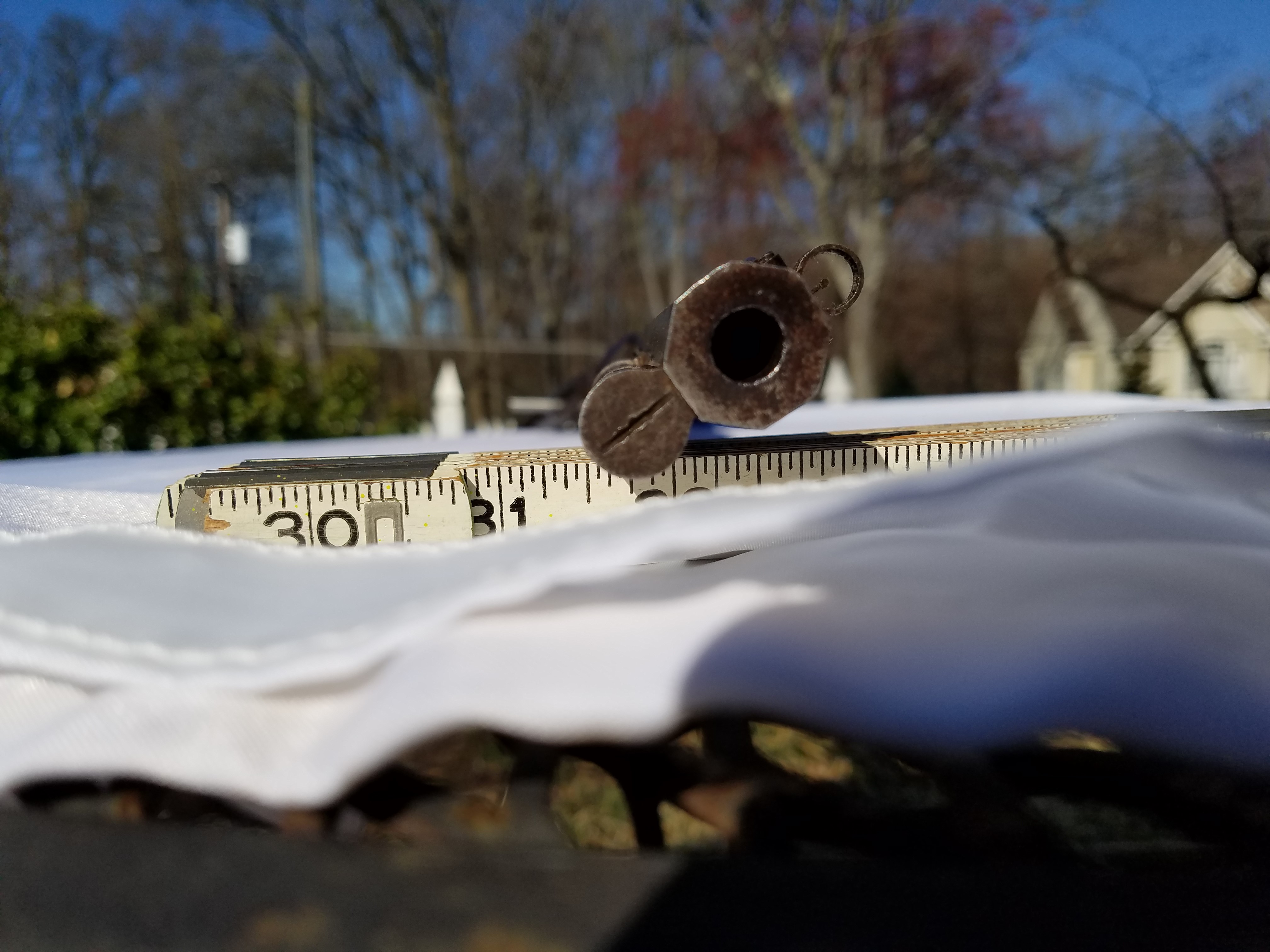

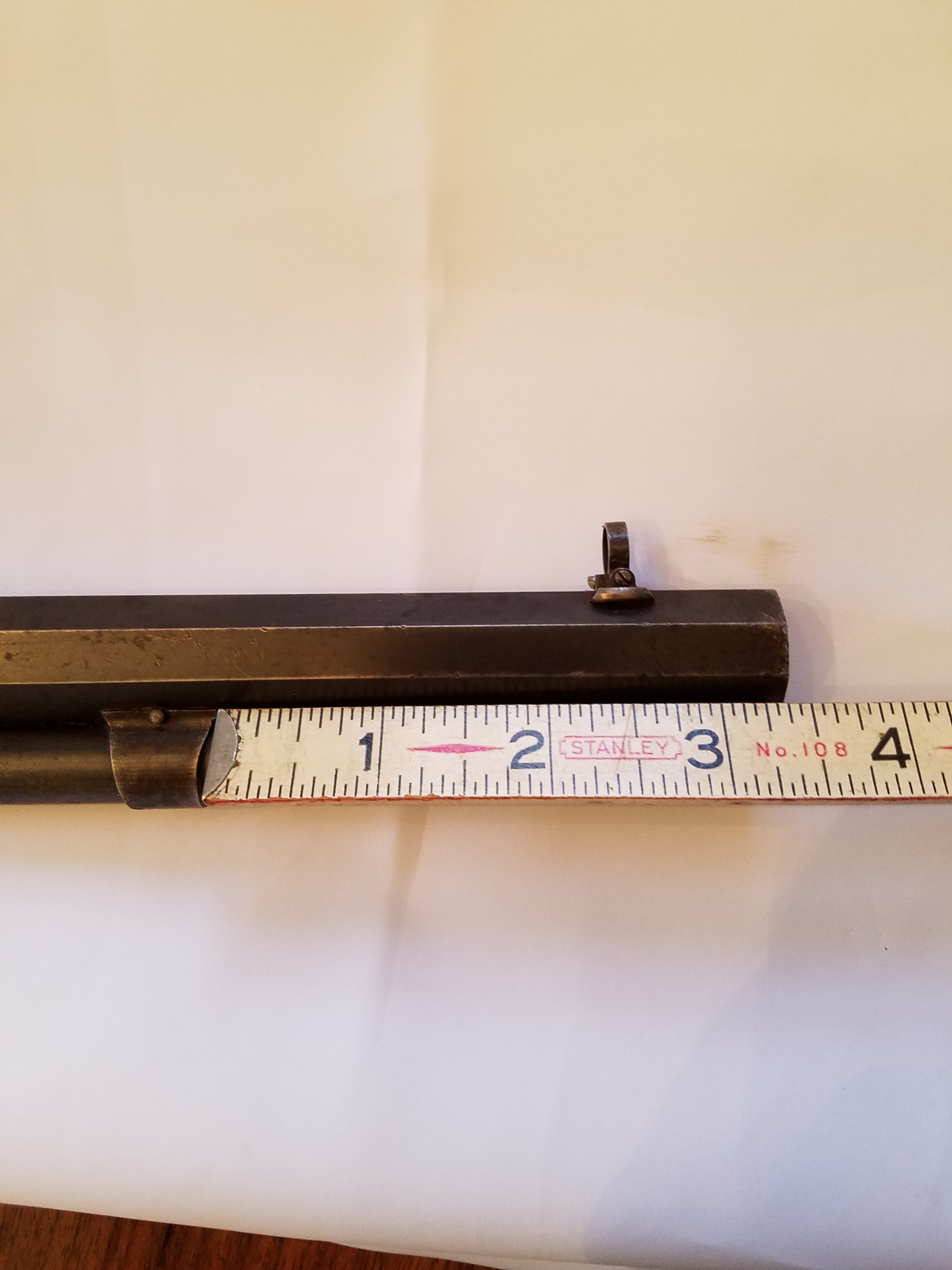

Magazine tube ring and front sight location measured per attached photos. Correct?

Height of butt measures as a carbine per Pirkle table 2-11, page 59 but is clearly a crescent type rifle buttplate (?).

Any thoughts on this rifle are appreciated.

Thanks.

Mac

20190319_100218.jpgImage Enlarger

20190319_100228.jpgImage Enlarger
20190319_100238.jpgImage Enlarger
20190319_100250-Copy.jpgImage Enlarger
20190319_100347.jpgImage Enlarger
20190319_100401.jpgImage Enlarger
20190319_101055.jpgImage Enlarger
20190319_101127.jpgImage Enlarger
20190319_101154.jpgImage Enlarger
20190319_102328.jpgImage Enlarger
20190319_102859.jpgImage Enlarger
20190319_102912.jpgImage Enlarger
20190319_102945.jpgImage Enlarger
20190319_102956.jpgImage Enlarger
20190319_103119.jpgImage Enlarger

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
2
March 19, 2019 - 6:37 pm
sp_Permalink sp_Print sp_EditHistory

Mac,

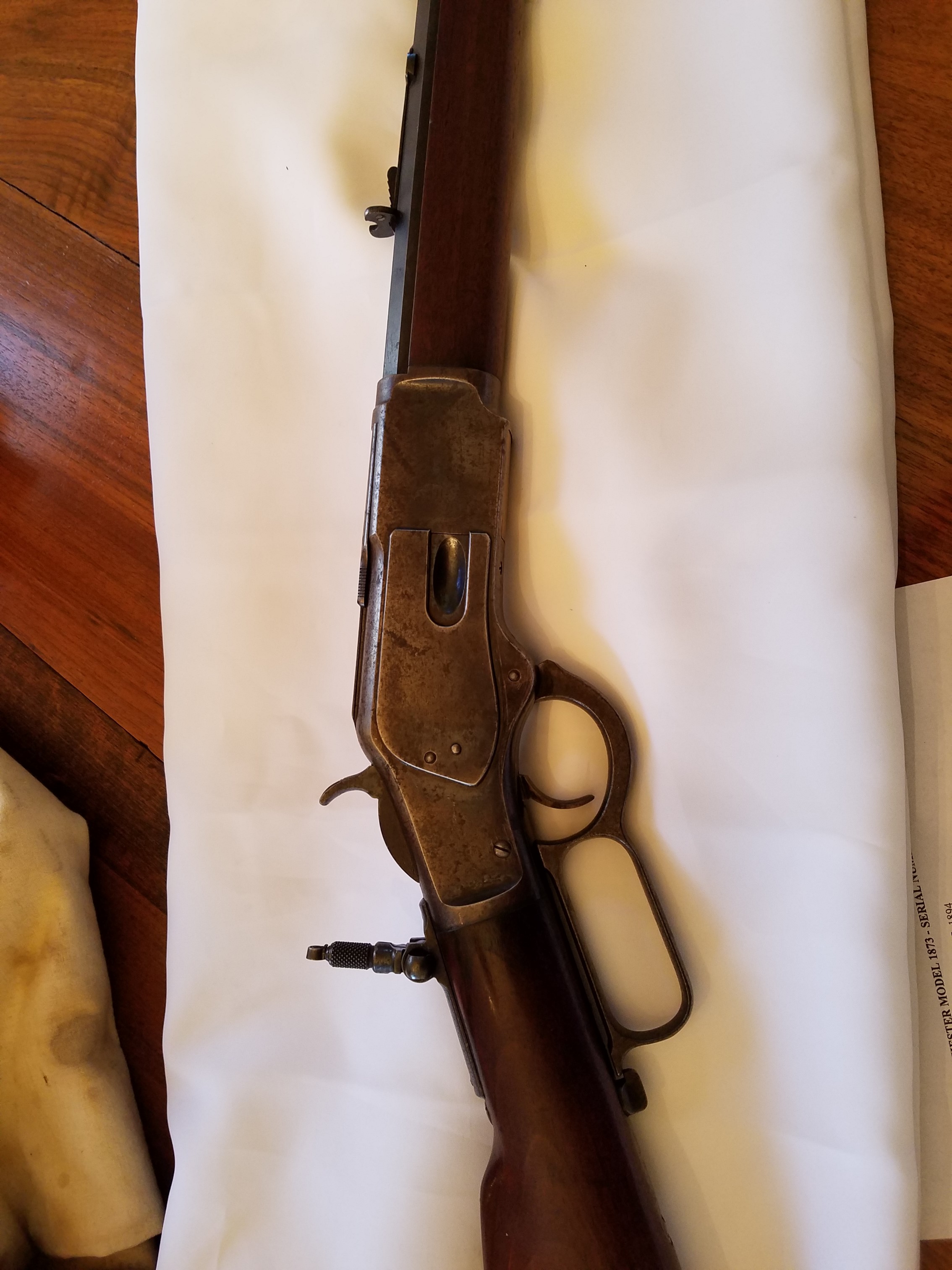

The gun looks right. If the gun was a 26″ and the barrel was shortened there would be a magazine band cut under the barrel in front of the one there now and I don’t see that in the pictures. If there is no extra slot, then the barrel could of been changed or a error in  the records. Either way you have a gun that does not letter clean  which does affect the value. It has the correct butt plate for a 32 caliber. From the pictures the receiver does not have any finish left and the barrel might have a little blue left in protected spots but the pictures are not good for seeing the blue.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Chuck
Member
WACA Member
Forum Posts: 5873
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
3
March 19, 2019 - 10:41 pm
sp_Permalink sp_Print

Recheck the Cody info for the barrel length.  I believe that 24″ is the standard barrel length?  Like Bob said, this gun looks good for it’s condition.

Avatar
Big Mac
Virginia
Member
WACA Member
Forum Posts: 171
Member Since:
September 7, 2017
sp_UserOfflineSmall Offline
4
March 22, 2019 - 8:49 pm
sp_Permalink sp_Print

Thanks Bob and Chuck for your responses.  Yes the receiver finish is pretty well worn.  Regarding the barrel length, I understand 24″ is the standard.  With the Cody records check showing 26″ the records are either in error or the barrel was replaced at some point.  I was hoping to get some sense of current value range.  Any thoughts are welcome.

Mac

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
5
March 22, 2019 - 8:52 pm
sp_Permalink sp_Print

Mac,

What is the blue condition of the barrel and tube?

Boib

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Big Mac
Virginia
Member
WACA Member
Forum Posts: 171
Member Since:
September 7, 2017
sp_UserOfflineSmall Offline
6
March 22, 2019 - 10:13 pm
sp_Permalink sp_Print

Bob,

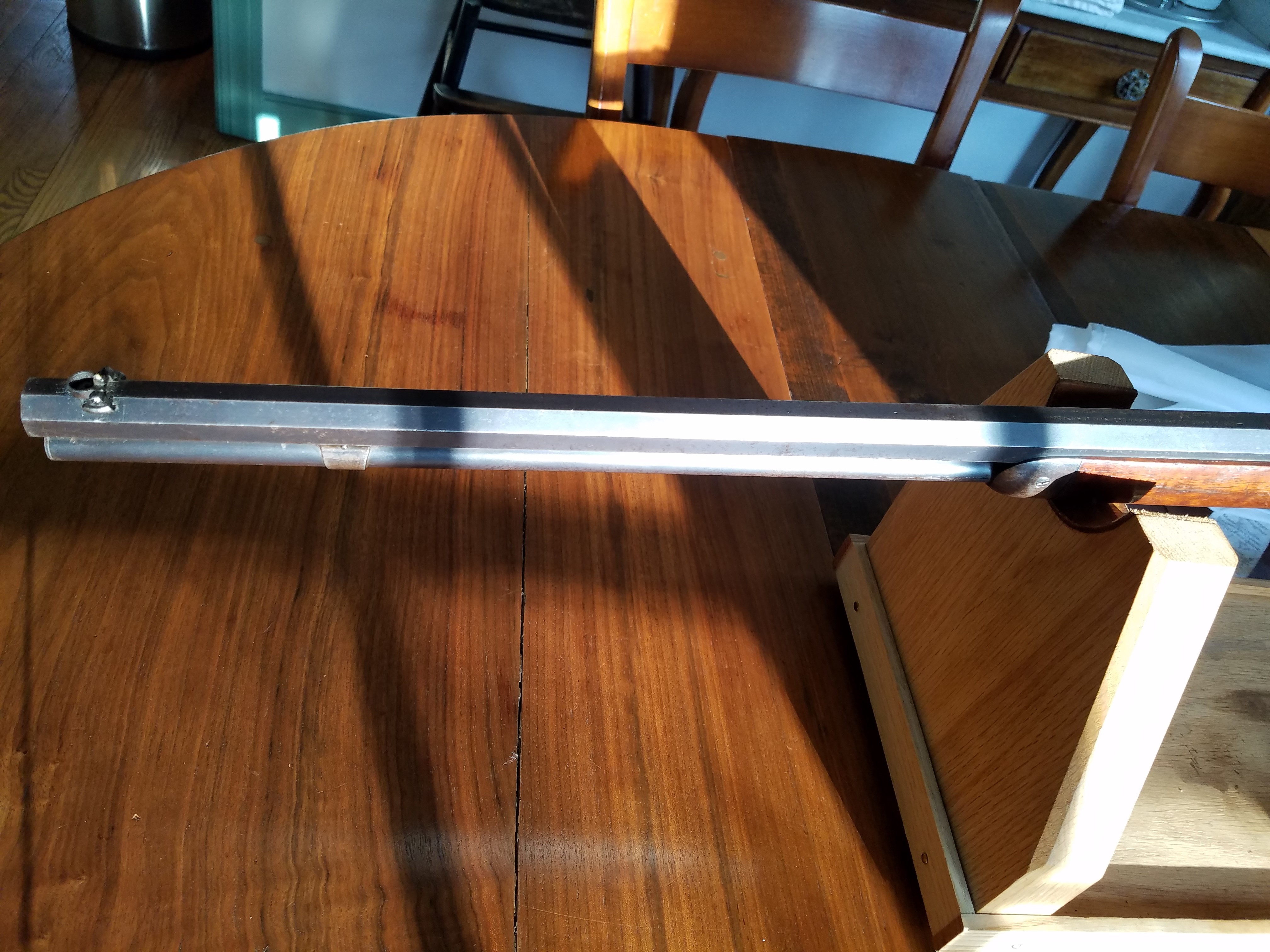

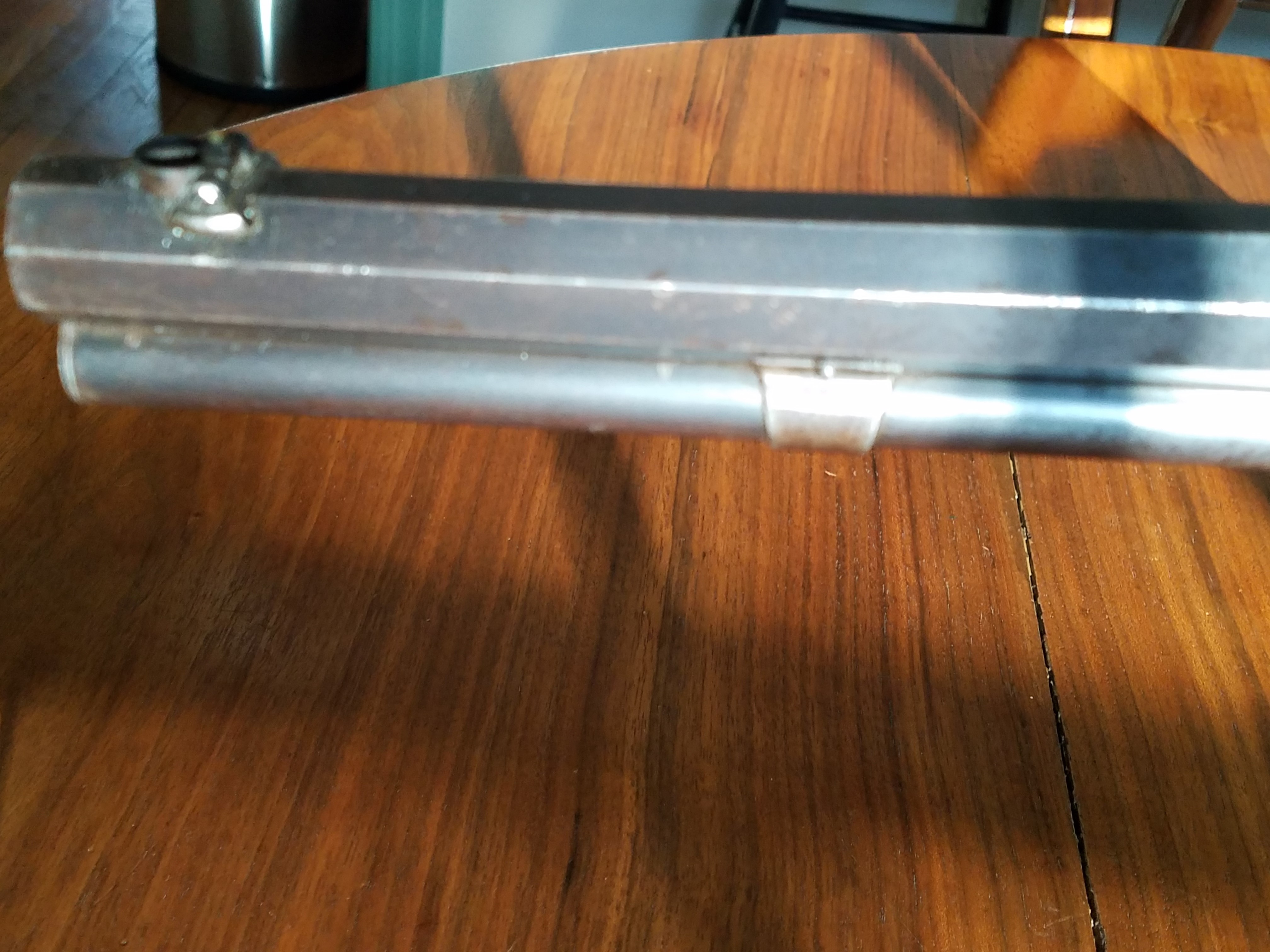

Hmmm, I’d say appropriate and consistent with what I’d expect of a 120+ year old rifle.  I am not comfortable/knowledgeable assessing % condition. They both have plenty of remaining blue although dull, showing ware, speckles of very light rust when examined closely with a bright light, some worn area on underside of tube similar to receiver.  The entire rifle metal looks to me as if aged together from the get-go.  Here are some more pics I just took.  Appreciate the follow up.

Mac

20190322_175520.jpgImage Enlarger

20190322_175538.jpgImage Enlarger
20190322_175703.jpgImage Enlarger
20190322_175714.jpgImage Enlarger

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
7
March 22, 2019 - 11:39 pm
sp_Permalink sp_Print

Mac,

The barrel and tube are better than the receiver. The 26″ on the letter and the receiver drag it down some. Its a $1300 – $1400 gun.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Big Mac
Virginia
Member
WACA Member
Forum Posts: 171
Member Since:
September 7, 2017
sp_UserOfflineSmall Offline
8
March 23, 2019 - 12:55 am
sp_Permalink sp_Print

Bob,

Thanks for the valuation.

Mac

Avatar
steve004
Member
WACA Member
Forum Posts: 5210
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
9
March 23, 2019 - 2:14 pm
sp_Permalink sp_Print

I find it a pleasing old rifle.  Thanks for posting.
