Front sight ramps
sp_NewTopic Add Topic
Avatar
RickC
Guest
WACA Guest
1
May 1, 2020 - 3:19 am
sp_Permalink sp_Print sp_QuotePost

Looking for the introduction year of front sight ramps on the 94 & which configuration they were designed for.

AG

Avatar
Kingston, WA
Admin
Forum Posts: 12566
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
May 1, 2020 - 3:47 am
sp_Permalink sp_Print sp_QuotePost

AG said
Looking for the introduction year of front sight ramps on the 94 & which configuration they were designed for.

AG

Rick,

April/May 1932. The ramp front sight was introduced at the same time Winchester switched from Nickel Steel barrels to Proof Steel barrels, and coincident with discontinuing the Saddle Ring Carbine. The very early ramp front sights did not have a provision for a hood, but Winchester quickly added that feature.  The first serial number I have confirmed this far is 1082562 (April 7, 1932).  The old style Carbines with the post style front sight were made at least as late as November 1932 as Winchester was using up parts on hand.

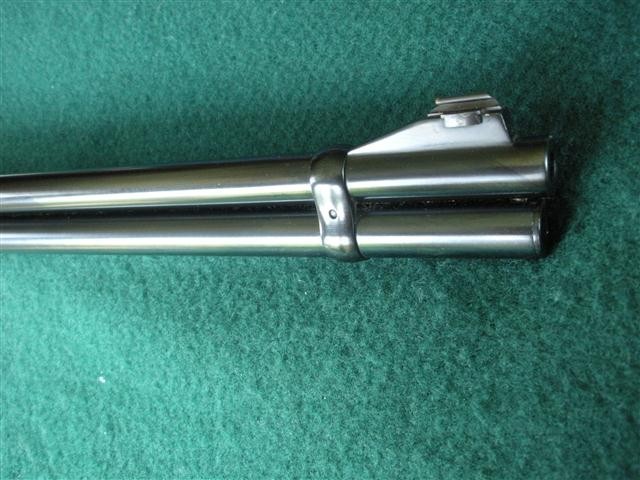

Early ramp sight (S/N 1082935 & 1086508 show in pictures below)

Winchester_Model_94_1082935_001.jpgImage Enlargerpix655231513.jpgImage Enlarger

Bert

WACA Historian & Board of Director Member #6571L

Avatar
RickC
Guest
WACA Guest
3
May 1, 2020 - 8:28 am
sp_Permalink sp_Print sp_QuotePost

Can’t receive a better answer than that. Thank you Bert I appreciate your reply as always.

Avatar
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1285
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
4
May 2, 2020 - 2:59 am
sp_Permalink sp_Print sp_QuotePost

You didn’t specify carbines or rifles, so ….. if you want to talk rifles they go back to at least 1897 on the ELW (round) barrels. That’s the earliest I have in my survey. I’m sure you were referencing carbines, but just a bit more information on the topic. Cheers……

                                                                               ~Gary~


Avatar
Mark
Guest
WACA Guest
5
August 5, 2023 - 11:30 pm
sp_Permalink sp_Print sp_QuotePost

I’m looking for some help on a 1957 Winchester model 94 30-30 carbine, it had a soldered on front site ramp that is no longer in place, The rifle belongs to my brother in law and all I know is his nephew some how lost it, I can make a replacement to sweat back on but need complete measurements to make one, I have tried to find one and even looked for replacement barrel but had no luck, noticed the old solder was kind of flaky so is this a issue from age, please let me know if you can help…

Avatar
Kingston, WA
Admin
Forum Posts: 12566
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
6
August 6, 2023 - 12:58 am
sp_Permalink sp_Print sp_QuotePost

Mark,

The front ramps were silver soldered to the barrel. If the ramp got knocked off, it was hit extremely hard. If the ramp came loosed from a heat source, it was subjected to a lot of heat. To the best of my knowledge, the sight ramps were not sold as a separate item. I would be incline to find a new (replacement) barrel.

Bert

WACA Historian & Board of Director Member #6571L
