Second life
Avatar
Erin Grivicich
Member
WACA Member
Forum Posts: 945
Member Since:
September 28, 2016
sp_UserOfflineSmall Offline
1
June 18, 2018 - 12:37 am
sp_Permalink sp_Print

I’m sure a few of you can remember this project from previous posts. I know the purists won’t appreciate it but there are a few who will.

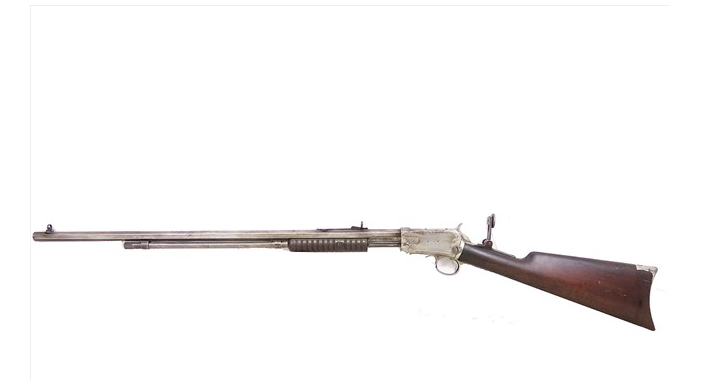

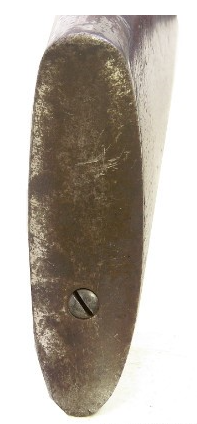

The rifle as purchased:

1890-Nickel.PNGImage Enlarger

Nickel-2.PNGImage Enlarger

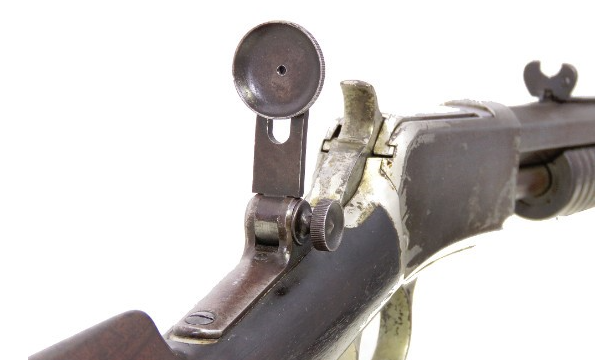

nickel-6.PNGImage Enlarger

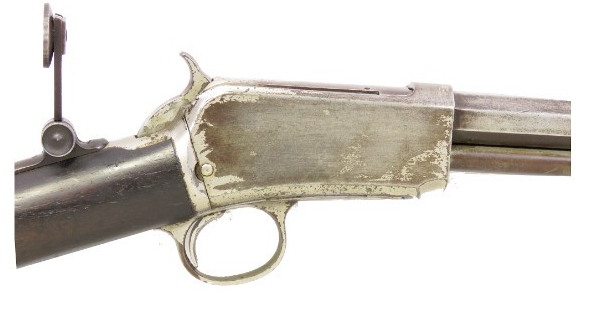

Nickel-5.PNGImage Enlarger
nickel-7.PNGImage Enlarger

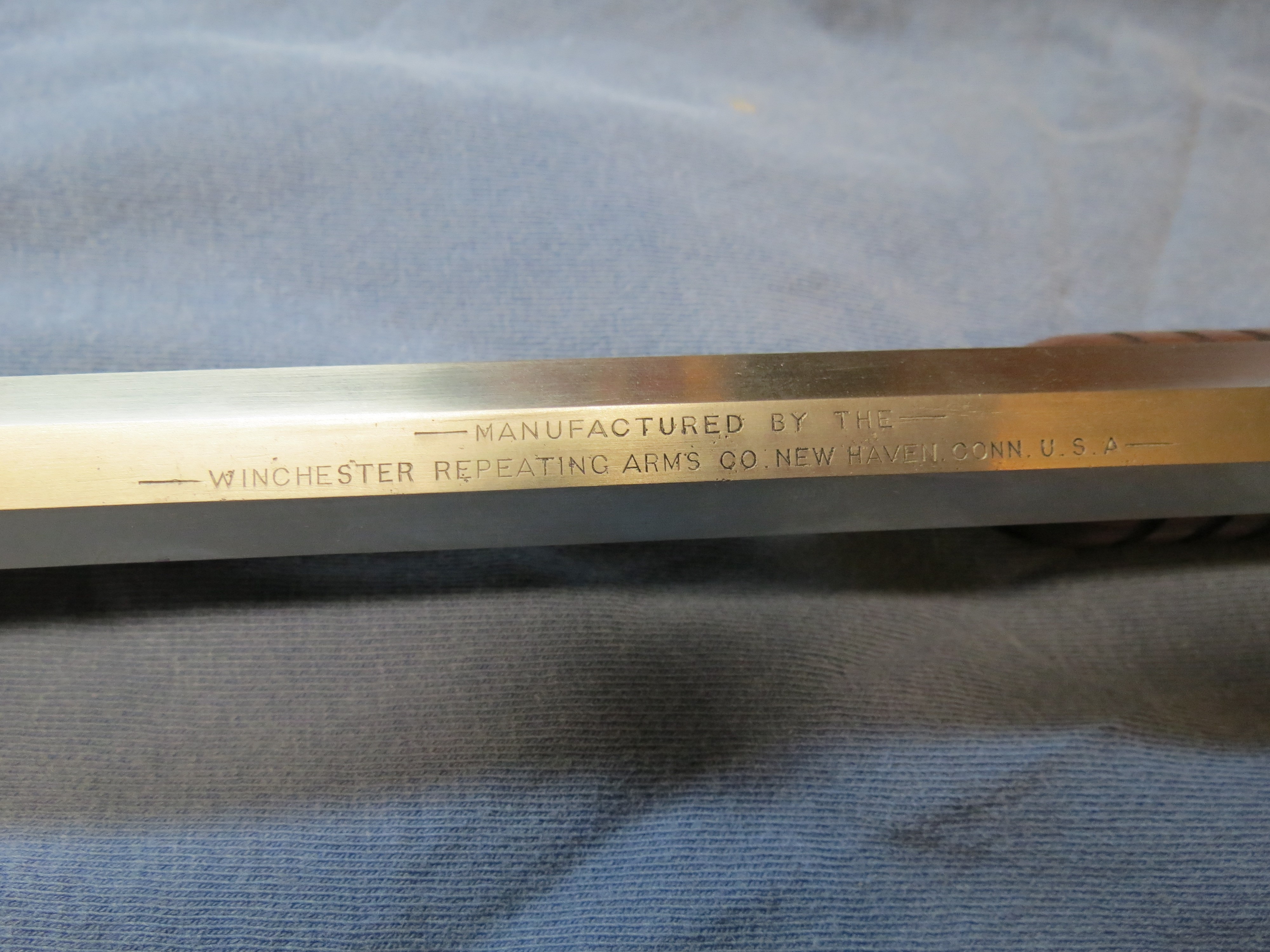

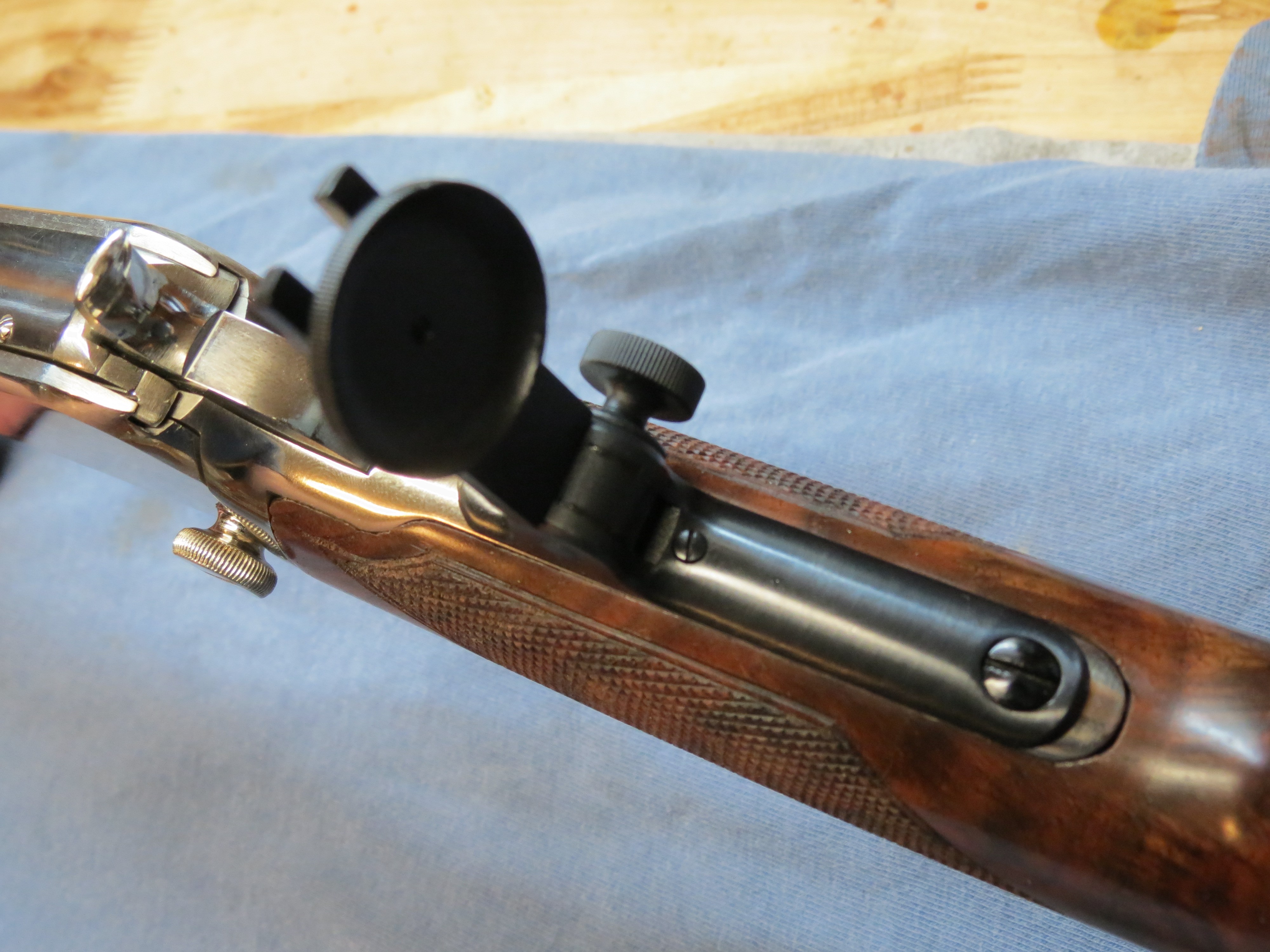

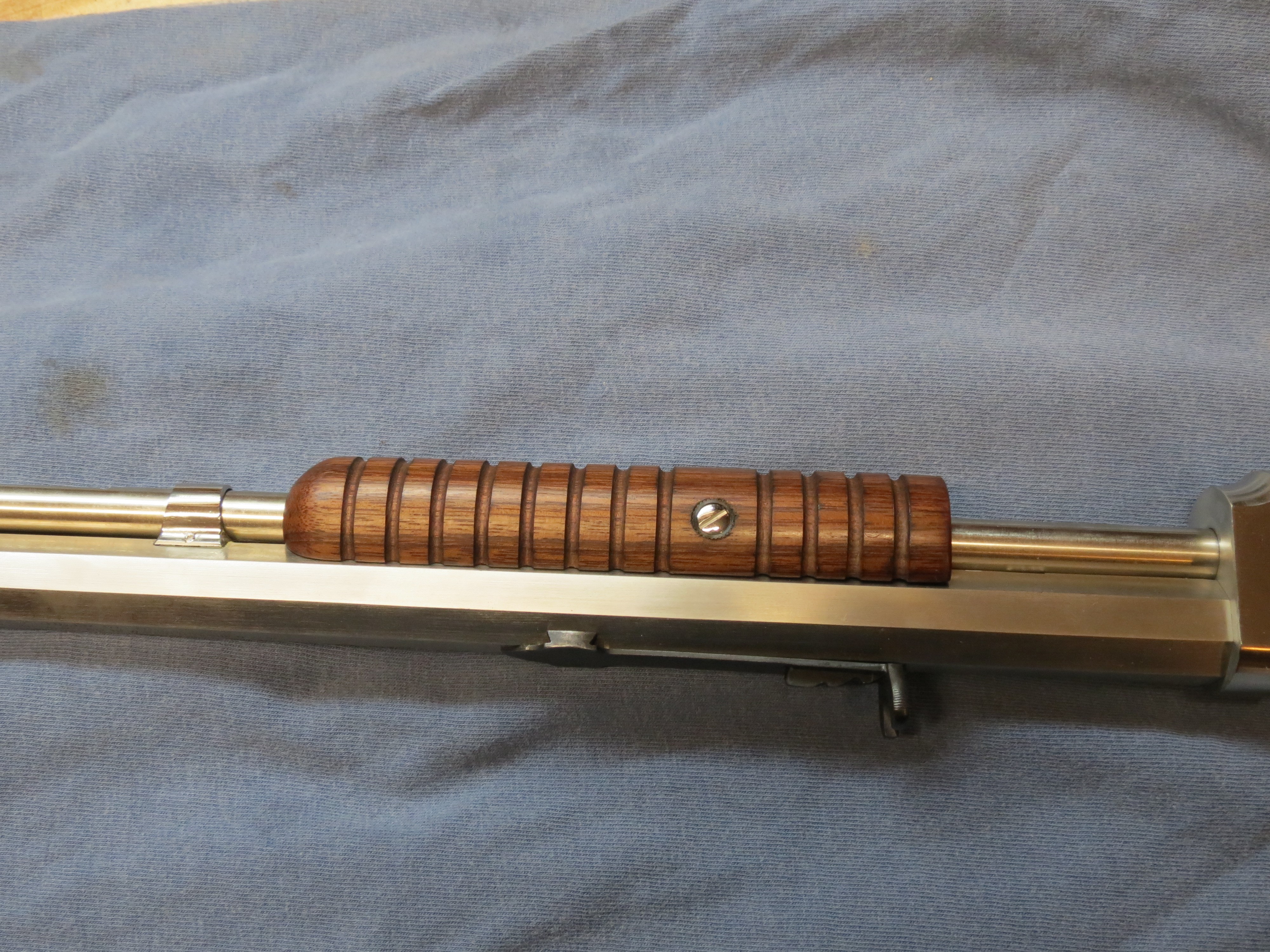

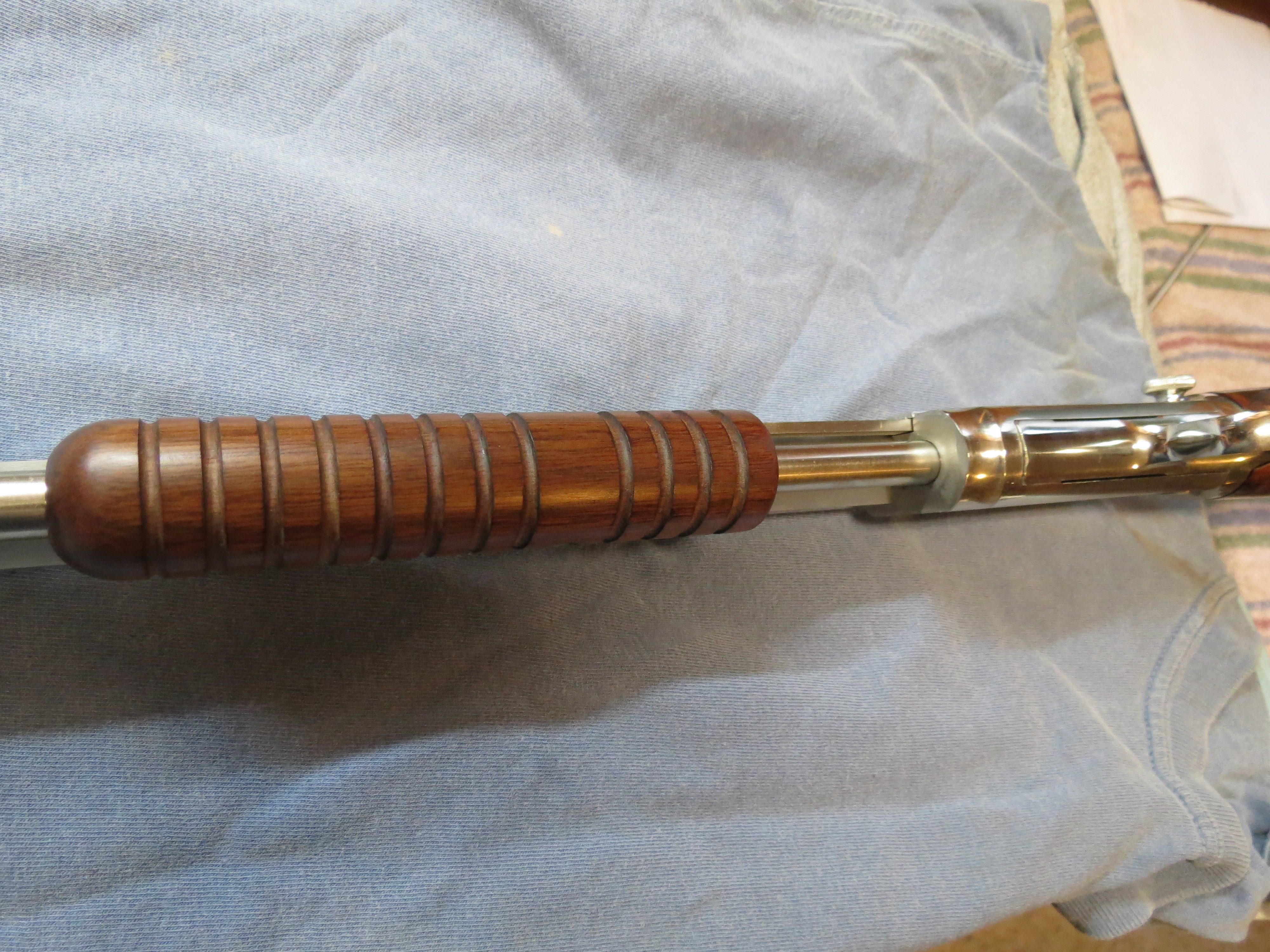

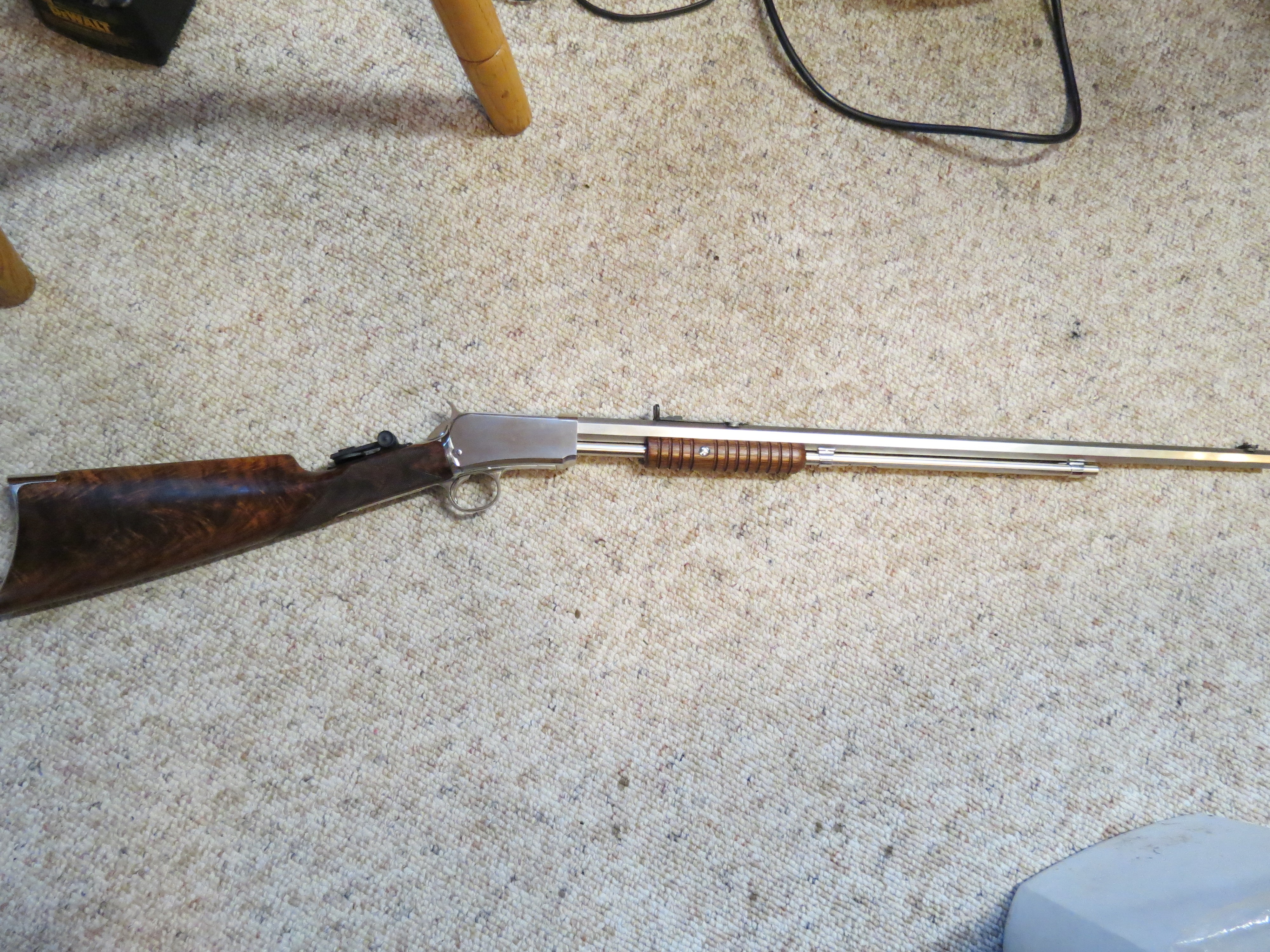

After a few minutes of polishing and whittling.Wink

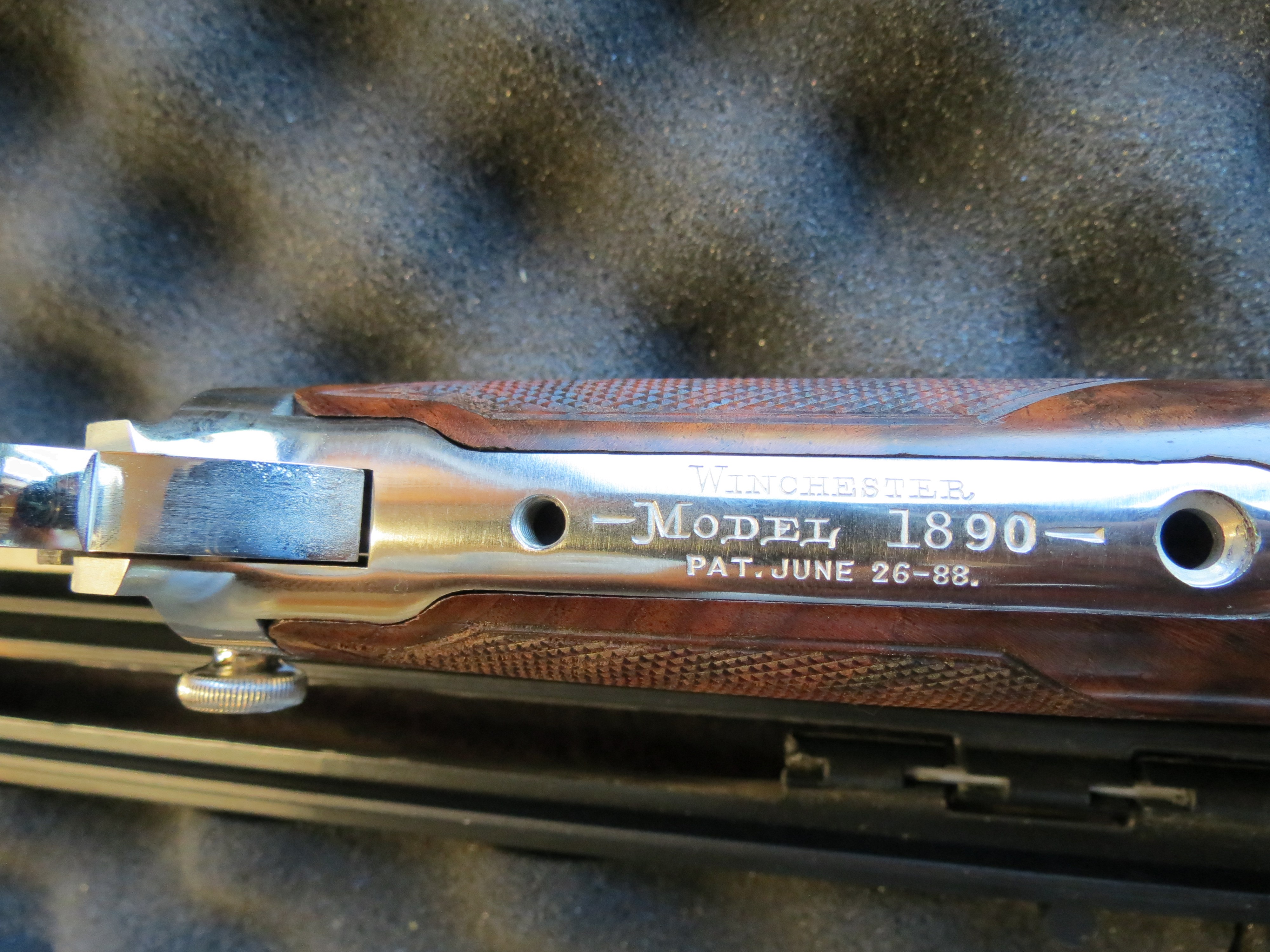

IMG_2883.JPGImage Enlarger

IMG_2884.JPGImage Enlarger

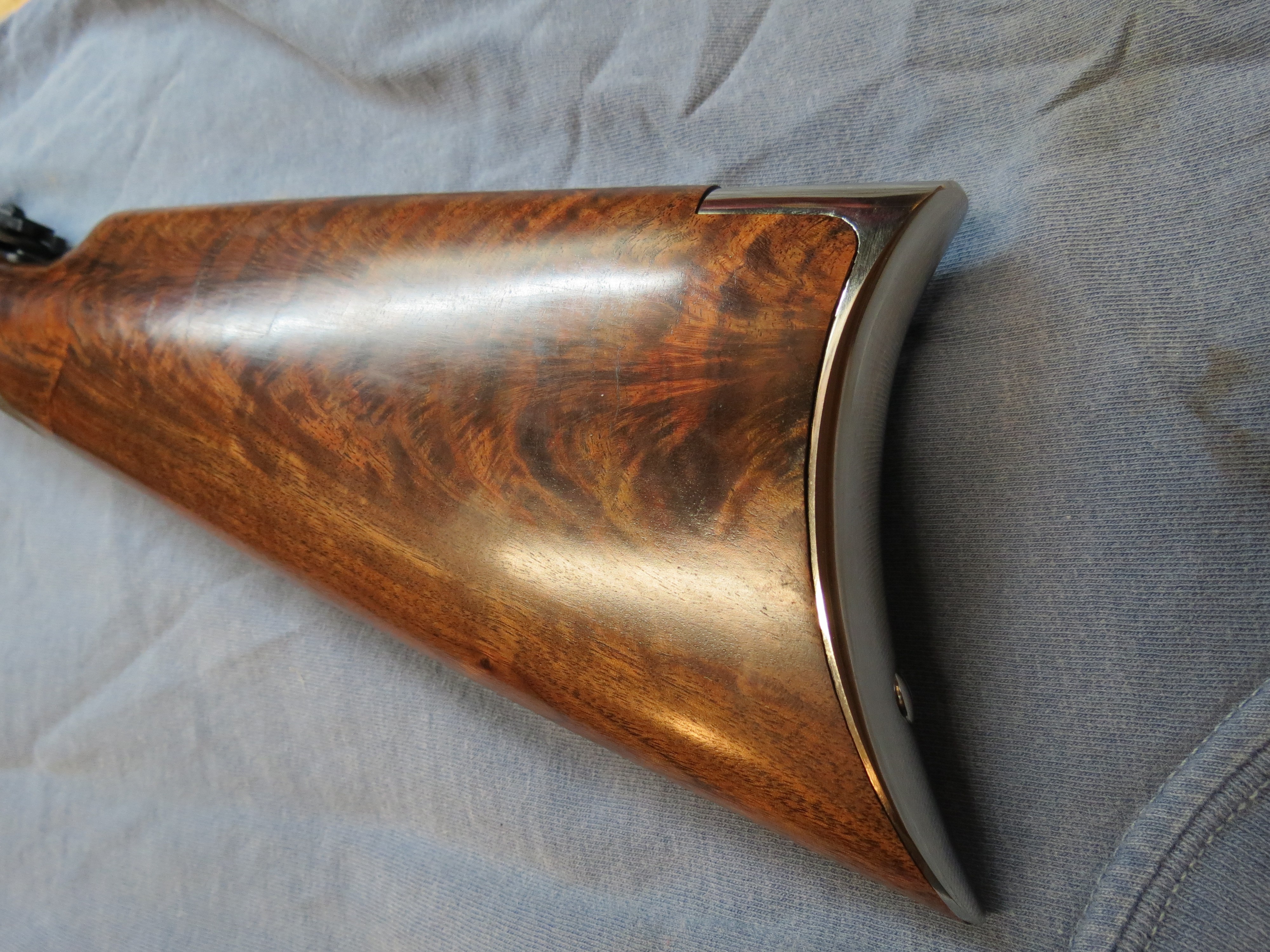

IMG_2885.JPGImage Enlarger
IMG_2886.JPGImage Enlarger
IMG_2887.JPGImage Enlarger

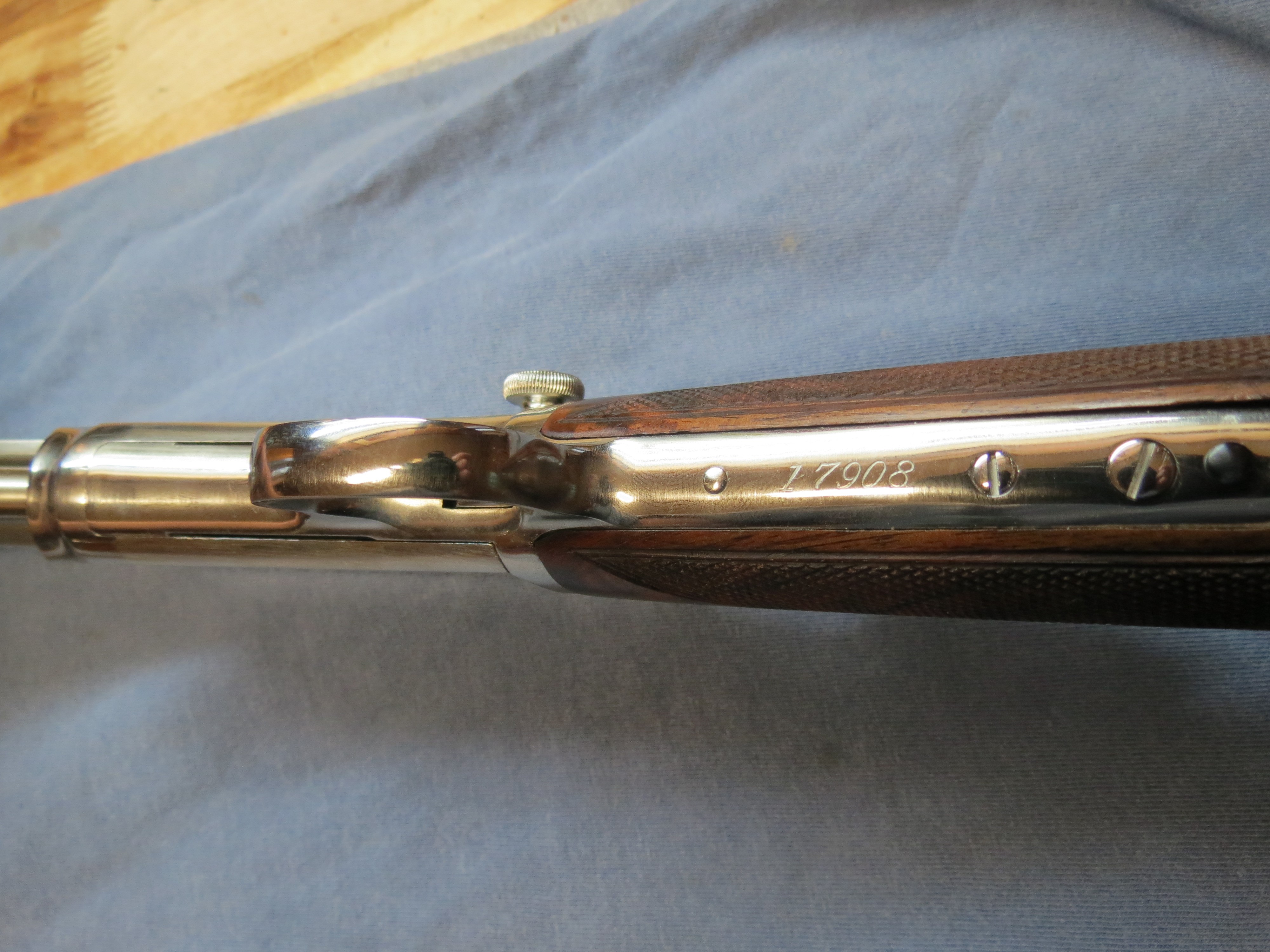

IMG_2889.JPGImage Enlarger
IMG_2891.JPGImage Enlarger
IMG_2892.JPGImage Enlarger

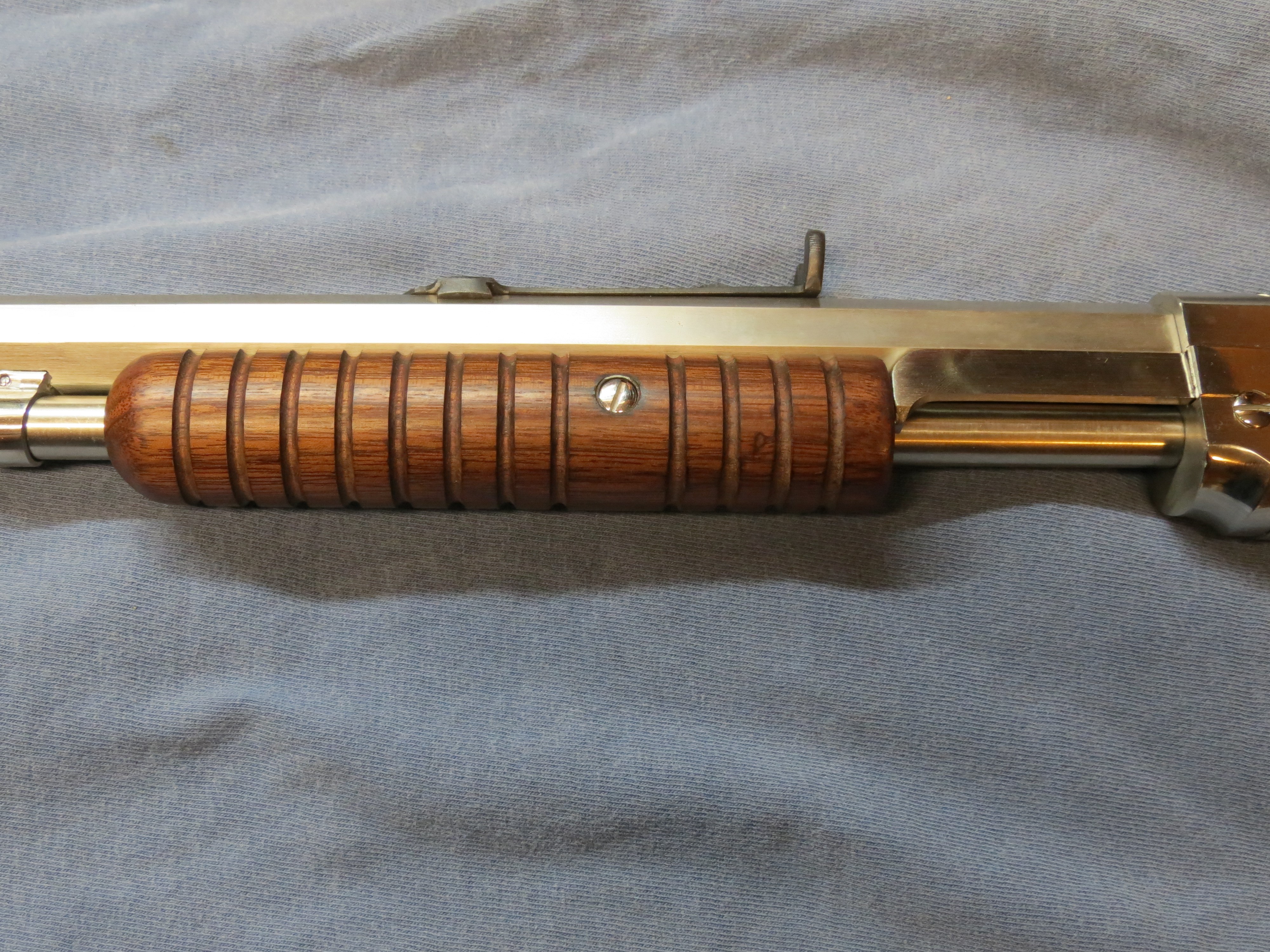

IMG_2893.JPGImage Enlarger
IMG_2894.JPGImage Enlarger
IMG_2895.JPGImage Enlarger

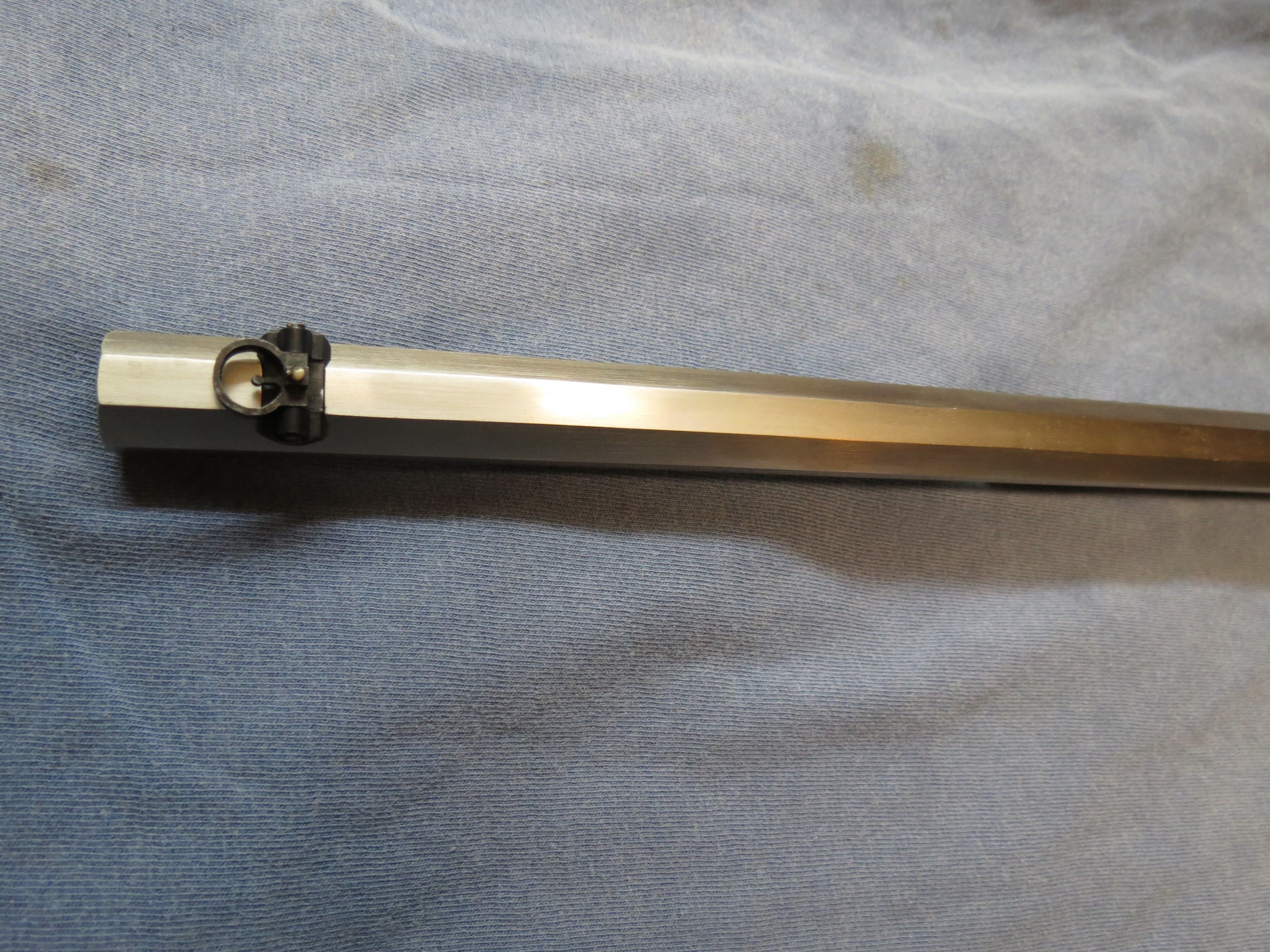

IMG_2896.JPGImage Enlarger
IMG_2897.JPGImage Enlarger
IMG_2898.JPGImage Enlarger
IMG_2899.JPGImage Enlarger
IMG_2900.JPGImage Enlarger

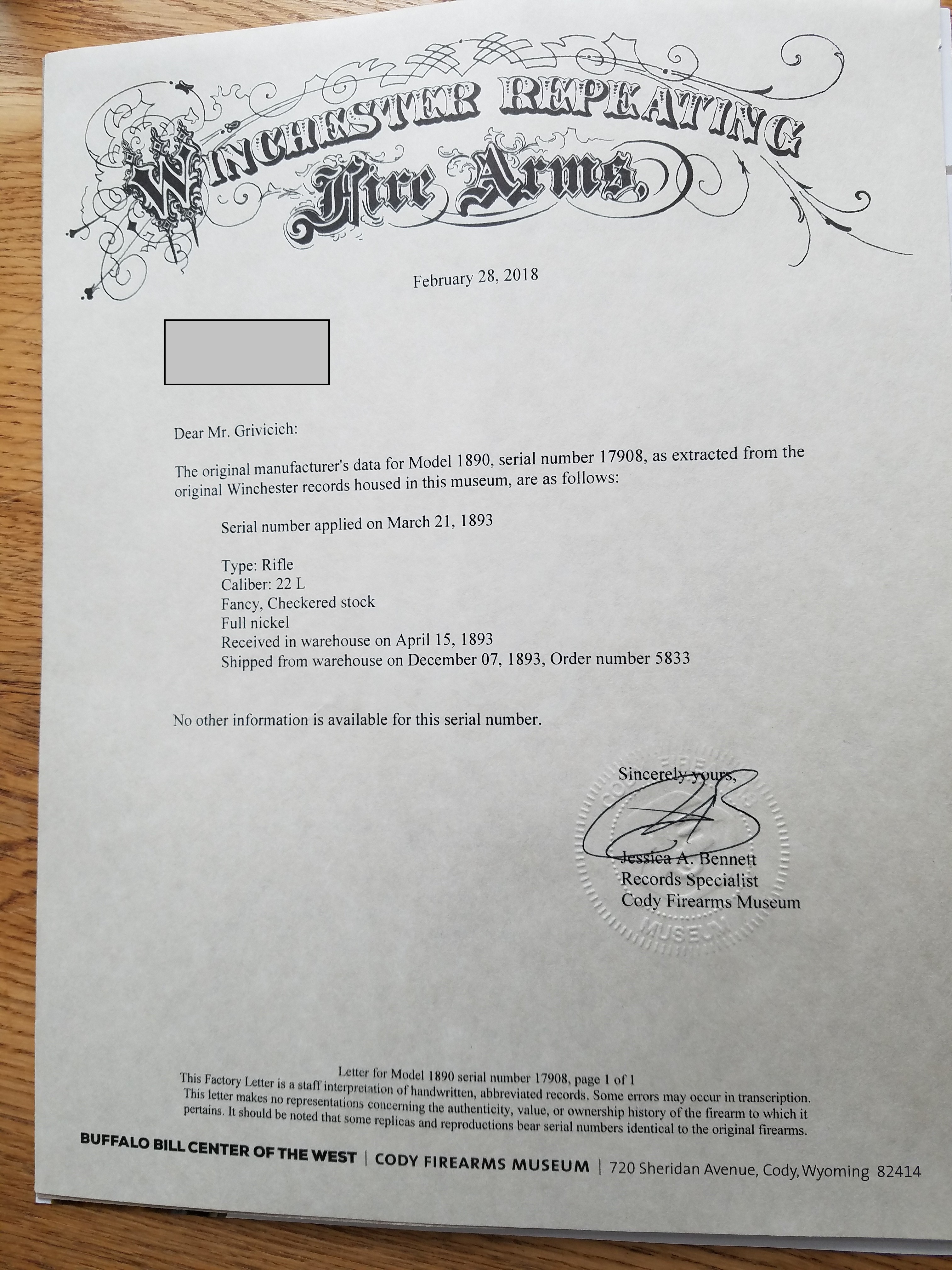

Now it matches the letter. The letter does not mention the sights, I feel pretty confident they are original. When removing the tang sight the Nickel was as shiny as the day it left the factor. If not, they were still a nice upgrade.Cody-letter.jpgImage Enlarger

Erin

sp_PlupAttachments Attachments
Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
2
June 18, 2018 - 1:34 am
sp_Permalink sp_Print

A “few” minutes?  DAYS is more like it, I strongly suspect.

Beautiful job.

Avatar
tionesta1
Member
WACA Member
Forum Posts: 1531
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline
3
June 18, 2018 - 1:45 am
sp_Permalink sp_Print

Beautiful job. Thanks for sharing the pictures.

Al

Avatar
TXGunNut
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 6486
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
4
June 18, 2018 - 3:32 am
sp_Permalink sp_Print

Very nice, Erin! No idea where you found that wood but that butt stock is pretty spectacular.



Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Board Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
jsgwoodsman
Member
WACA Member
Forum Posts: 310
Member Since:
September 21, 2016
sp_UserOfflineSmall Offline
5
June 18, 2018 - 11:30 am
sp_Permalink sp_Print

Amazing work!

Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
6
June 18, 2018 - 11:41 am
sp_Permalink sp_Print

Tang sight may be original, but the “open top” looks like the result of the original staff having been shortened by someone who thought it was unnecessarily tall for a .22; the original length may have caused it to hit the point of the comb when folded down, as they often do.

Avatar
Cliff
Ft.Worth, Texas
Member
WACA Guest
Forum Posts: 142
Member Since:
March 16, 2018
sp_UserOfflineSmall Offline
7
June 18, 2018 - 2:35 pm
sp_Permalink sp_Print

I liked it better before but it is indeed beautiful. You did a fantastic job of restoring it!

Avatar
Erin Grivicich
Member
WACA Member
Forum Posts: 945
Member Since:
September 28, 2016
sp_UserOfflineSmall Offline
8
June 19, 2018 - 12:03 am
sp_Permalink sp_Print

Thanks for all the kind words and compliments guys.



Clarence:  I tend to keep track of time, This project was exceptionally long due to the degree of work. It came in at 135 hrs. +/- a bit. That does include the out sourced work. Checkering, plating, welding. This one required a new butt stock, intensive metal work, barrel liner, the barrel shank had to be built up and threads chased with a new extractor cut along with all the regular “stuff”. If a long gun only requires polishing and wood refinishing it’s generally a 35-40 hr. job.  I believe you are correct with the shortened sight, made to clear on a 1890.



Mike, That piece of wood came out of a barn in lower Michigan. I picked it up from the grandson of a deceased fellow. The wood had been stored in the top of a barn since 1954. I bought about 700 board feet that all came out of the same tree. (as the story goes) It was mostly 4 quarter but there were a few very nice pieces of 12 quarter which is ideal for gunstocks.



Best,

Erin

Avatar
Randal McEvers
Bull Mtn, Oregon
Member
WACA Guest
Forum Posts: 77
Member Since:
April 11, 2015
sp_UserOfflineSmall Offline
9
June 19, 2018 - 12:46 pm
sp_Permalink sp_Print

Great job Erin. Very talented!
