I just picked up a Winchester model 52, #38343.
Would anyone know when it was mfg?
Thanks
December 9, 2002
Offline
Ed,
October of 1935. Just for a reference in the future, if you go to the top of the page, and click on Resources, and scroll down, you’ll see, “When was you’re Winchester made”, and click on one of the listed model’s and then you’re serial number, and it will tell you, as in this case, 1935! I found October in Herbert Houze, model 52 Book!
Does it have a letter at the end of the serial number?
Pictures would be great, as many of us would like to see it!
A couple of the model 52 Experts, IMO, are in Cody, Wyoming for the WACA, 50 year Celebration, and Gun Show. I’m sure they will chime in and add whatever you would like to know. Their shared knowledge, and experience, is First Rate! Besides that, it might not be in the current Survey being conducted, and we all appreciate the hard work, and time and dedication these gentlemen spend on this, for all our benefit!
Anthony
June 1, 2023
Offline
Winchester 52 serial #38343 will be an unmarked A rifle, made in the last half of October, 1935. An “un-marked A” rifle is a Winchester Model 52 rifle that was made after the changes of the A model were incorporated, but before Winchester had made the decision to mark all such rifles with the letter “A” .
BRP
December 9, 2002
Offline
Thanks for adding that BRP, as I wasn’t sure if the, “A”, was on there or not yet, in all honesty!
Anthony
May 5, 2022
Offline
Thank you guys for the info.
The serial number does not have a letter with it.
December 9, 2002
Offline
Thanks for that Ed!
Verifying what BRP, posted.

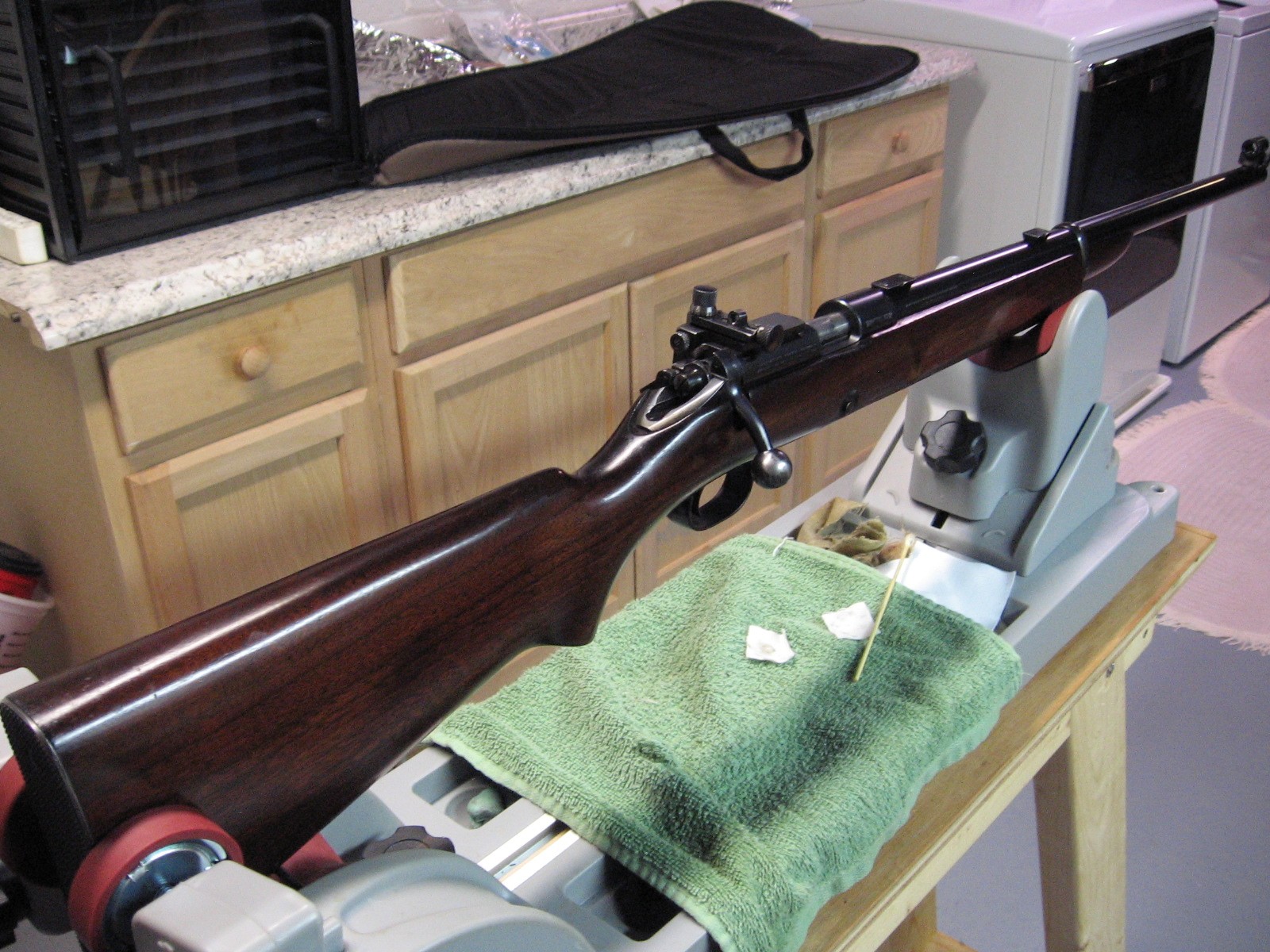

Nice looking rifle from what the pictures show!
Thanks for sharing!
Anthony
May 5, 2022
Offline

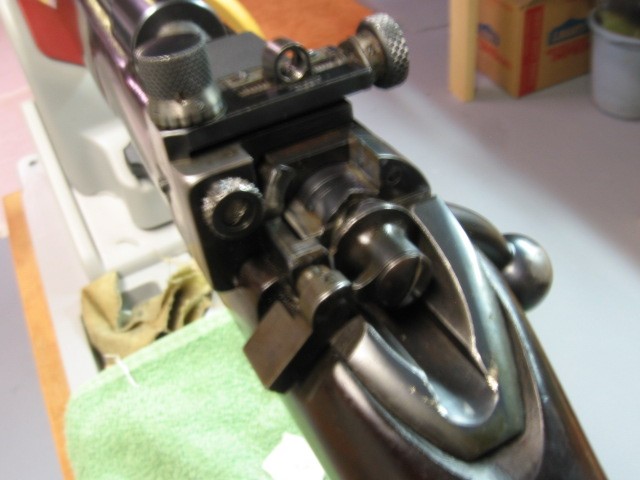

Looked the rifle over a little better last night. I could not find any mfg. markings on the front or rear sights. The rear sight has a running deer with a circle and post on the left side, which I guess represents the front sight. Also a patent date of July 11, 1911.
Anyone wish to venture a guess as to who made them?
Thanks
November 7, 2015
Offline
Edward Kitner said
Looked the rifle over a little better last night. I could not find any mfg. markings on the front or rear sights. The rear sight has a running deer with a circle and post on the left side, which I guess represents the front sight. Also a patent date of July 11, 1911.Anyone wish to venture a guess as to who made them?
Thanks
Sounds like the Lyman gun sight symbol.
Mike
December 9, 2002
Offline
Ed,

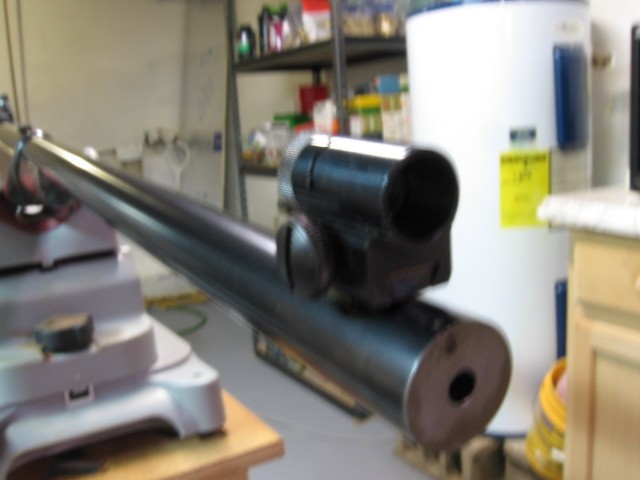

I’m in agreement with Mike, on the Lyman Logo. The Lyman logo, would be the pony inside a circle on the mounting block, of, what looks like a rear, Lyman #48 receiver sight. Maybe a second variation, as the early first didn’t have the pony logo. Patent date, should say July, 11, 1911. The front looks like a Lyman #77 target sight.
Anthony
August 14, 2021
Offline
I believe it is a running deer, not a pony per se.
May 5, 2022
Offline
Thanks for all the reply’s. I need an aperture for the rear sight and inserts for the front sight.
The front sight inserts are on ebay. Anyone know where to look for rear sight aperture.
July 21, 2010
Offline
Edward Kitner said
Thanks for all the reply’s. I need an aperture for the rear sight and inserts for the front sight.The front sight inserts are on ebay. Anyone know where to look for rear sight aperture.
ebay may be your best bet; search “lyman 48 aperture” for variety ….and/or look for seller “aperturesnmore”
December 31, 2012
Offline
Apertures and More your best bet. He does great work and you cannot tell originals from his. I ordered a 1″ disk from him for my Lyman 48 and I was impressed. Big Larry
June 1, 2023
Offline
The rear sight, without any doubt, is a Lyman 48-J. It’s one of the finest sights available back when your rifle was made. Without better pictures it’s hard to be certain, but the front sight looks to be one of the Redfield 60 series sights.
BRP
December 9, 2002
Offline
Steven Gabrielli said
I believe it is a running deer, not a pony per se.
You are Correct, Steven, that is a deer, of the old school design by all accounts!
My mind must have been on the Colt in my Lap! LOL!
Anthony
May 5, 2022
Offline
I checked Lee Shavers site and he only had the front sight inserts. Mine has the two tabs above center and .550″ dia., so it is a Redfield. Lyman’s are on center.
I have two apertures coming from apertures&more.
All parts are ordered.
Thanks all for the help and support!
November 7, 2015
Offline
Big Larry said
Apertures and More your best bet. He does great work and you cannot tell originals from his. I ordered a 1″ disk from him for my Lyman 48 and I was impressed. Big Larry
Big Larry-
Does he do inserts for aperture front signts?
Mike
July 3, 2020
Offline
Mike… do you need Witek-Vaver front inserts? Ben
March 31, 2009
Offline
Ben, what front sight do these go into?
November 7, 2015
Offline
Ben said
Mike… do you need Witek-Vaver front inserts? Ben
Not at this time, just planning ahead.
Mike
