i think this is a spruce rifle?
Avatar
Samurai1
Member
WACA Guest
Forum Posts: 14
Member Since:
February 14, 2019
sp_UserOfflineSmall Offline
1
February 14, 2019 - 5:16 pm
sp_Permalink sp_Print

Hi.

New here I bought this rifle at a lGS first Winchester in my collection but after doing some research looks like I got a spruce rifle? no markings on barrel collar other then Winchester proof mark.  Any help id rifle will be welcome.



Thank you.





topImage Enlarger





sideImage Enlarger

under Image Enlarger
sideImage Enlarger
Image Enlarger

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12979
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
February 14, 2019 - 6:00 pm
sp_Permalink sp_Print

As a non WACA member, you are unable to directly post pictures in a forum post.  You can post a link (URL) to a sight where you have stored pictures.

What is the serial number on your Winchester?  What caliber is it?

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Samurai1
Member
WACA Guest
Forum Posts: 14
Member Since:
February 14, 2019
sp_UserOfflineSmall Offline
3
February 14, 2019 - 6:48 pm
sp_Permalink sp_Print

Cal 30 Wcf serial number 839478 saddle ring carbine.

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12979
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
4
February 14, 2019 - 8:07 pm
sp_Permalink sp_Print sp_EditHistory

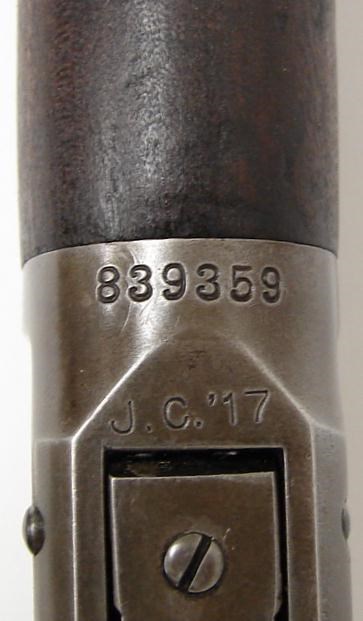

OK, it is certainly in the correct serial number range for the known Spruce Guns. Does it have “J.C. ’17” marked on the flat area below the serial number?

Bert



839359-JC-17-marked.jpgImage Enlarger

sp_PlupAttachments Attachments

WACA Historian & Board of Director Member #6571L

Avatar
Samurai1
Member
WACA Guest
Forum Posts: 14
Member Since:
February 14, 2019
sp_UserOfflineSmall Offline
5
February 14, 2019 - 8:38 pm
sp_Permalink sp_Print

Yes sir j.c. ’17    Under serial number.

Avatar
Chuck
Member
WACA Member
Forum Posts: 5866
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
6
February 14, 2019 - 9:42 pm
sp_Permalink sp_Print sp_EditHistory

Bert H. said
OK, it is certainly in the correct serial number range for the known Spruce Guns. Does it have “J.C. ’17” marked on the flat area below the serial number?

Bert



839359-JC-17-marked.jpgImage Enlarger



Bert, there are pictures on his original post.  Did he post them or someone else?

Avatar
Samurai1
Member
WACA Guest
Forum Posts: 14
Member Since:
February 14, 2019
sp_UserOfflineSmall Offline
7
February 16, 2019 - 4:26 pm
sp_Permalink sp_Print sp_EditHistory

Hi,



I sent Bert photos of my rifle and here is his reply as follows:



I am convinced that it is an original Spruce Gun. It is one of (15) found thus far with the “J.C. ’17” marking, and of that number (11) of them do not have the “U S” and ordnance bomb stamped on the frame ring. The serial number was applied to your Spruce Gun on March 15, 1916.

Regards,
Bert



Thank you Bert for taking the time to review my photos and Comfirming my thoughts on my rifle.



Best regards,

Hooked on Winchester

Avatar
supergimp
Los Angeles
Member
WACA Member
Forum Posts: 379
Member Since:
January 19, 2006
sp_UserOfflineSmall Offline
8
February 16, 2019 - 7:36 pm
sp_Permalink sp_Print

Just curious, I guess I assumed all Spruce Guns would have the “US” and ordnance markings. Are there any other runs of 1894’s (or other Winchester lever guns) that would bear the US ordnance mark besides the Spruce Guns?



Steve

WACA Member. CFM Member. NRA Lifer.

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12979
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
9
February 16, 2019 - 8:00 pm
sp_Permalink sp_Print sp_EditHistory

supergimp said
Just curious, I guess I assumed all Spruce Guns would have the “US” and ordnance markings. Are there any other runs of 1894’s (or other Winchester lever guns) that would bear the US ordnance mark besides the Spruce Guns?



Steve

Steve,

Not all of the Spruce Guns were “U S” marked.  Of the (226) Spruce Guns that have been surveyed thus far, there are (11) of them with the “J.C. ’17” marking only. There are no other “confirmed” US ordnance marked Model 1894s outside of the Spruce Guns.

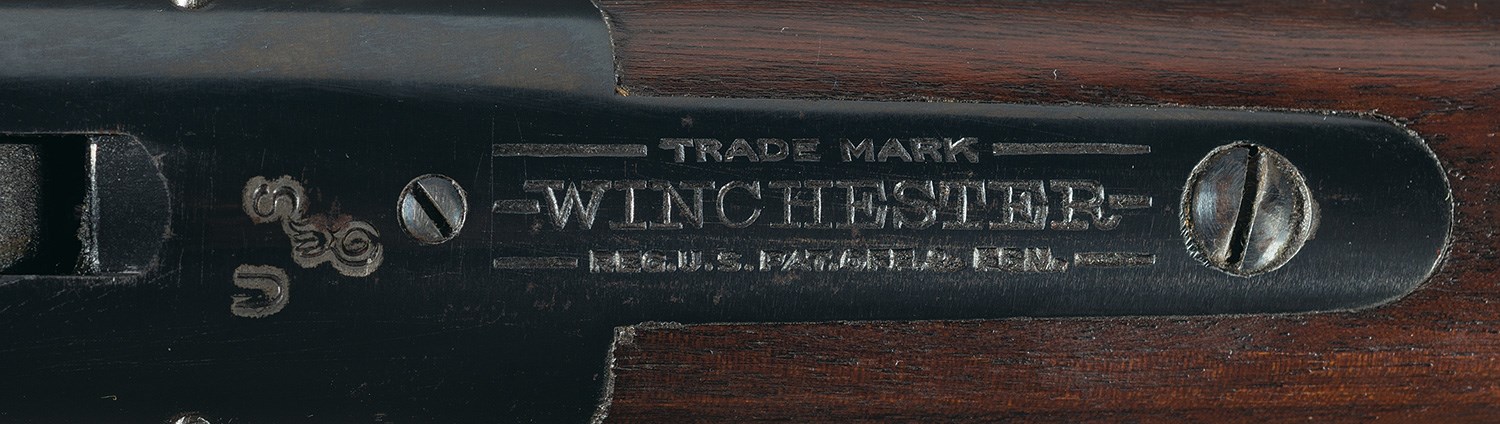

In regards to other ordnance marked Models, there were 11,419 Winder Muskets that have the exact same markings on them as the Spruce Guns.  The Winder Muskets were4 marked just behind the hammer on just forward of the upper tang.  Interestingly, the contracts for the Winder Muskets and Spruce Guns were signed by the U.S. Government just days apart (in December 1917).  It was apparently the exact same government inspector who inspected and stamped all of them.  Additionally, an unknown quantity of the WW I Trench Guns were ordnance marked (right-hand side of the receiver, just forward of the ejection port).

Bert

Winder Muskets;

Ordnance-stamp-124658.jpgImage Enlarger

Ordnance-stamp-126760.jpgImage Enlarger

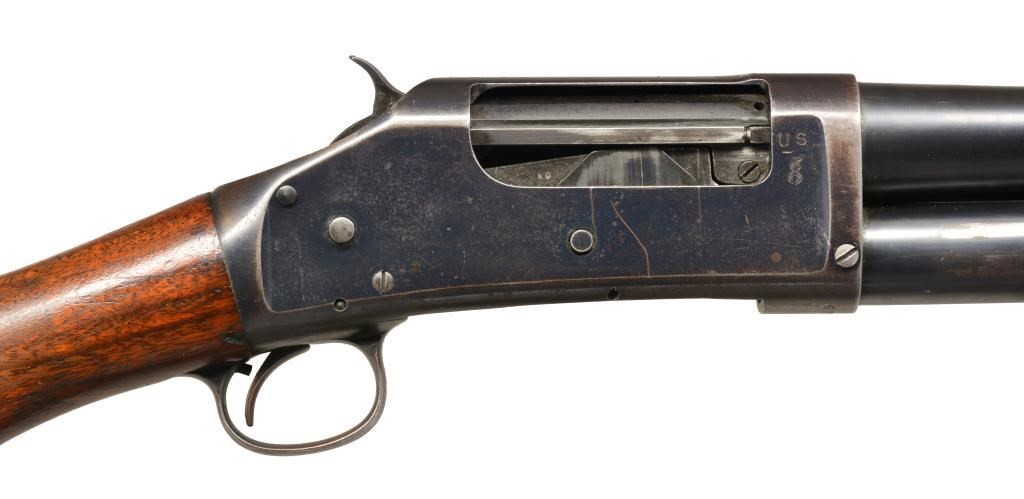

Model 1897 Trench Guns;

WW-I-Ordnance-mark-669225-Trench-Gun.jpgImage Enlarger

WW-I-Ordnance-mark-672558-Trench-Gun.jpgImage Enlarger

WACA Historian & Board of Director Member #6571L

Avatar
supergimp
Los Angeles
Member
WACA Member
Forum Posts: 379
Member Since:
January 19, 2006
sp_UserOfflineSmall Offline
10
February 16, 2019 - 8:55 pm
sp_Permalink sp_Print

Thanks Bert.

Another data point to file away for future reference.

Steve

WACA Member. CFM Member. NRA Lifer.
