Winchester model 1994 rust removal
Avatar
james alfano
Member
WACA Guest
Forum Posts: 23
Member Since:
October 17, 2022
sp_UserOfflineSmall Offline
1
November 5, 2022 - 5:27 pm
sp_Permalink sp_Print

Hello

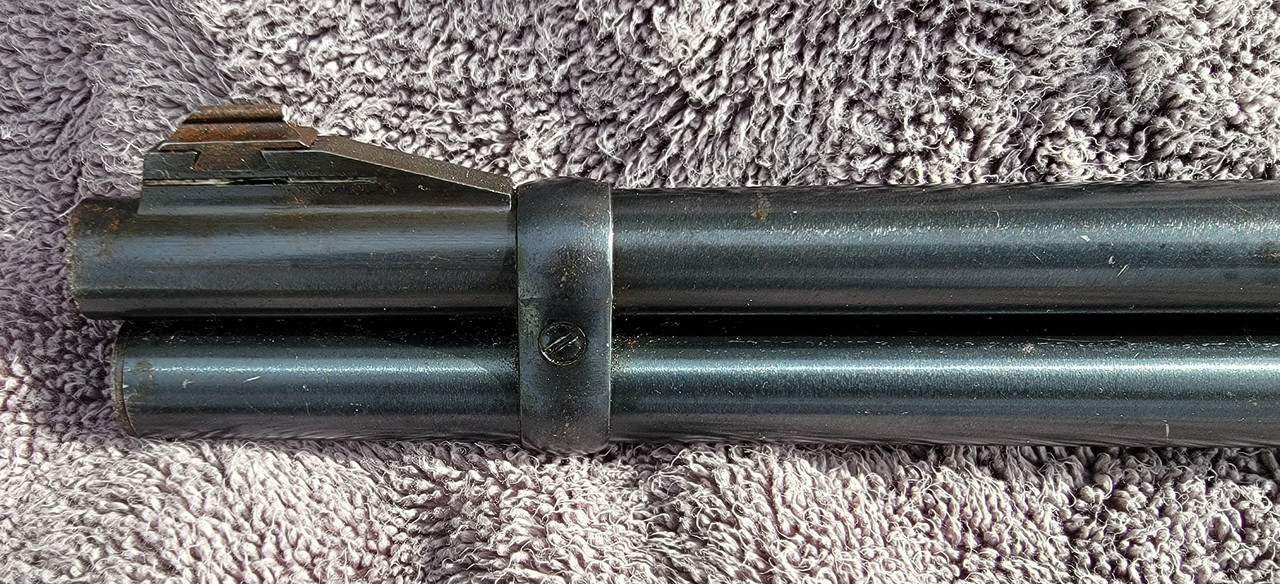

what is the best way to remove rust on this front sight and the front of the barrel

Avatar
james alfano
Member
WACA Guest
Forum Posts: 23
Member Since:
October 17, 2022
sp_UserOfflineSmall Offline
2
November 5, 2022 - 5:29 pm
sp_Permalink sp_Print

Excuse the typo 1994

Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
3
November 5, 2022 - 5:44 pm
sp_Permalink sp_Print

I would just use 4-0 steel wool, or bronze wool is you already have it, with oil; doesn’t look like a major problem to me.

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4700
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
4
November 5, 2022 - 5:55 pm
sp_Permalink sp_Print

The most of it is on the sight so I would remove the sight and do it separately. You also have the option of replacing the sight but that will cost you a little. If you remove the sight, tap it out to the right side using a brass or aluminum drift and put it back in from the right side.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12880
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
5
November 5, 2022 - 7:25 pm
sp_Permalink sp_Print

I would remove the front sight, soak it in Kroil, then use copper wool to gently scrub it clean.  Apply Kroil to the rust spots on the barrel, let it soak overnight, then gently scrub it clean with copper wool.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Patrick Colahan
Member
WACA Guest
Forum Posts: 15
Member Since:
October 30, 2022
sp_UserOfflineSmall Offline
6
November 5, 2022 - 9:59 pm
sp_Permalink sp_Print

I would not use any type abrasive. Would be better to use steam to convert the rust and then use a Carding Wheel with a 0.0025″ or 0.005 wire. They are available from Brownells. They don’t remove metal or finish, instead polish the converted rust and it will look like the blueing. If you are interested in learning more, you can check out Mark Novak on YouTube where he demonstrates this in great detail. You will be surprised at how easy this is and the results. Much better than just removing the blueing with the rust with abrasives.

Avatar
Chuck
Member
WACA Member
Forum Posts: 5812
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
7
November 5, 2022 - 10:09 pm
sp_Permalink sp_Print

Take it off and soak it in Kroil, Breakfree or WD 40 for a few days.  Then use 0000 steel wool or bronze wool with a lot of oil.  Don’t scrub hard.  Surface rust will come off easily.  Blisters of rust come off but the surface will not be perfect anymore.

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4700
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
8
November 6, 2022 - 12:14 am
sp_Permalink sp_Print

I’ve used 0000 steel wool and oil on gun that had good blue to remove some scattered rust and it doesn’t hurt the blue as long as you are careful. If you use the copper wool you can’t hurt any blue.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
james alfano
Member
WACA Guest
Forum Posts: 23
Member Since:
October 17, 2022
sp_UserOfflineSmall Offline
9
November 6, 2022 - 11:10 pm
sp_Permalink sp_Print

Hello Everyone

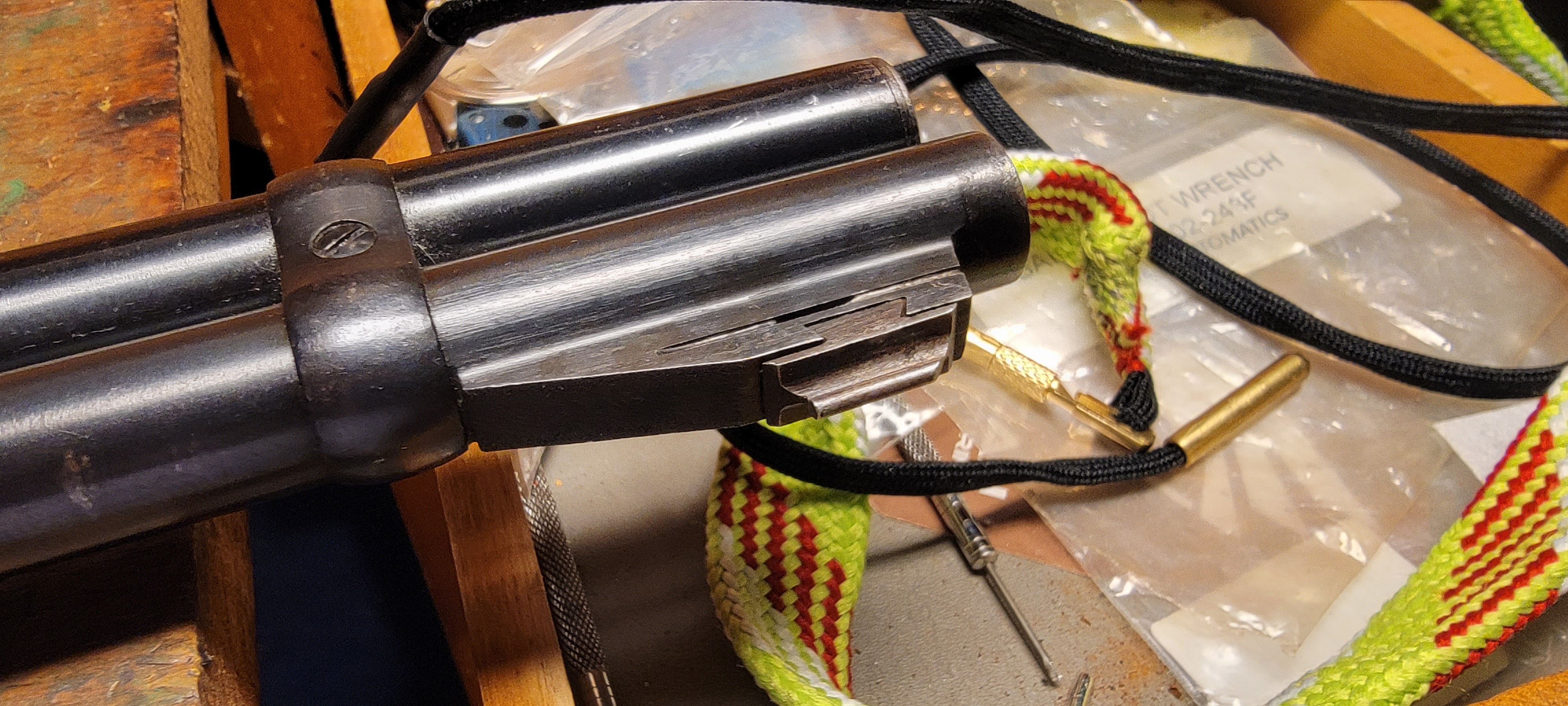

I went with Bert’s method I used kroil and did not remove the front sight. I will remove the sight at a later date. The sight cleaned up very good for now.wfs.jpg

sp_PlupAttachments Attachments
Avatar
james alfano
Member
WACA Guest
Forum Posts: 23
Member Since:
October 17, 2022
sp_UserOfflineSmall Offline
10
November 6, 2022 - 11:14 pm
sp_Permalink sp_Print sp_EditHistory

Patrick

I checked out Mark Novak on you tube great stuff. Before I try any of his methods, I will experiment on a beater firearm.

Thanks Everyone

Jim

Avatar
Patrick Colahan
Member
WACA Guest
Forum Posts: 15
Member Since:
October 30, 2022
sp_UserOfflineSmall Offline
11
November 6, 2022 - 11:25 pm
sp_Permalink sp_Print

james alfano said
Patrick

I checked out Mark Novak on you tube great stuff. Before I try any of his methods, I will experiment on a beater firearm.

Thanks Everyone

Jim



I used this method on a friends old shotgun. It had sat in a cabin up in the island for many years. Besides the disassembly which was a bit of a challenge, the steaming and then use of the carding wheel was extremely simple and to my amazement brought back almost all of the blued finish.

I love watching Mark Novak do his conservation, a real artisan in his trade. Bob from Rustblue.com, who has been on several of Mark’s videos is another great source, which includes instructional information and videos. Of course our Own Mark from Cinnabar is another excellent source for information.
