Hi Guys,

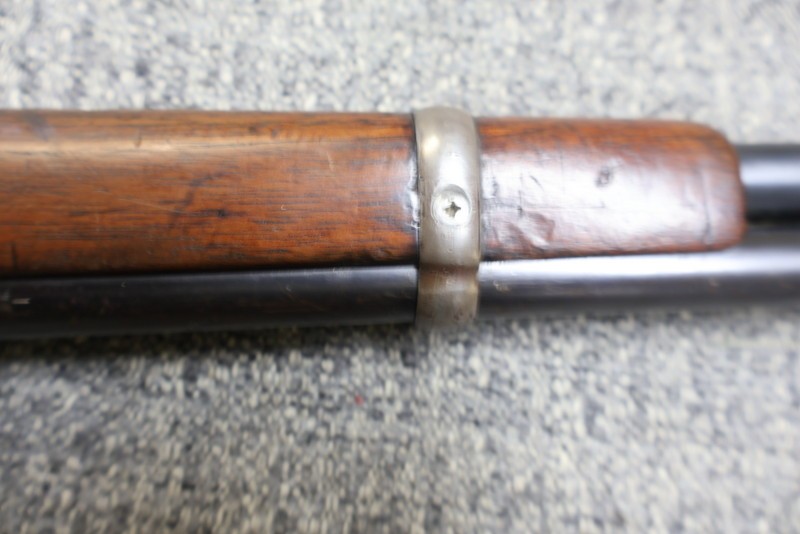

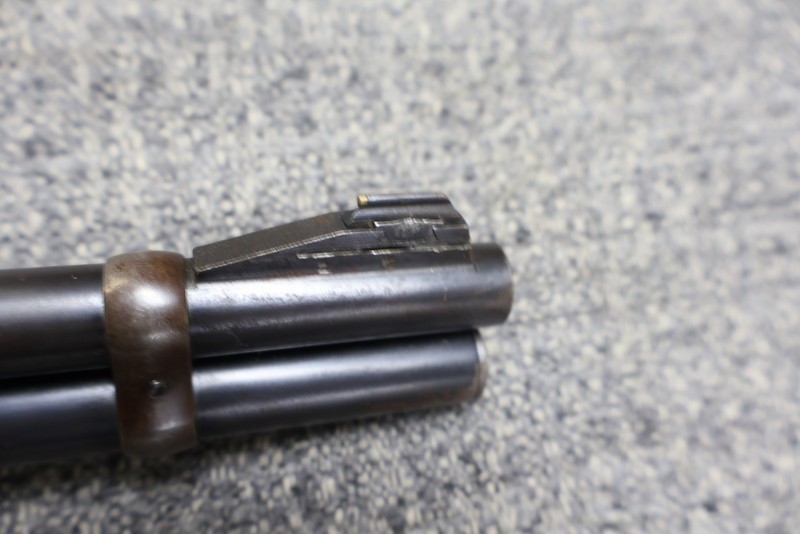

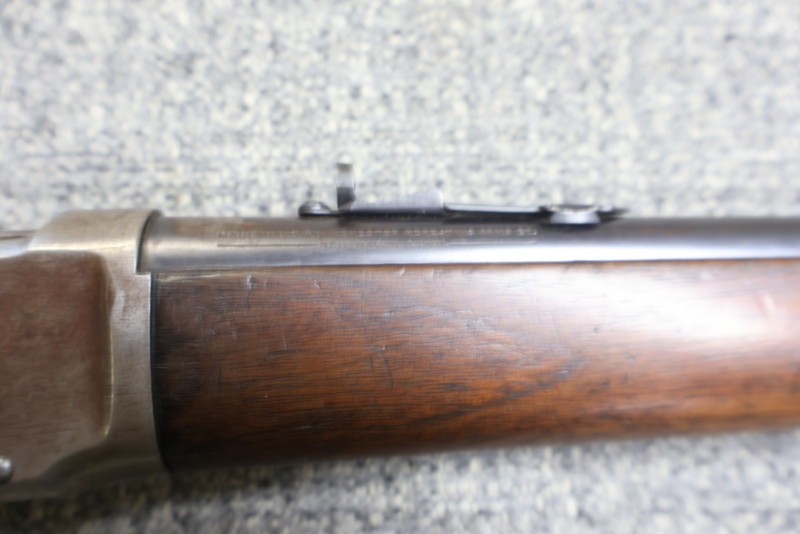

I recently purchased a Winchester 1894 SRC manufactured in 1896 I got it for a good price but it had some issues. First, the fore stock band has a replacement screw (phillips!). The second and third issues concerns the sights the barrel sight is a modern replacement and the front sight is a ramp type sight both similar to what you might see on a modern Marlin.
So I thought I might correct these issues but I am finding it difficult to find parts. Also the front sight is dovetailed so I don’t know how easy it would be to duplicate the silver soldered post and pinned blade. So I am at a loss of what to do, I have a few 92 & 94 saddle ring carbines and when I put them all together on a table this one sticks out like a sore thumb. So I am looking for suggestions a thought I had was to just sell it as is and be done with it but I would like to hear of other possibilities before I take the easy route. I will post some pictures of it shortly I actually had some but I got tired of looking at them and deleted them before I thought to pose the questions to the forum.
Thanks,
Rob
PS: One of the pluses of this carbine is the bore is great probably 8+
September 22, 2011
Offline
The bore is great because, as you said, it’s replaced.
Check on eBay for parts, but probably best to cut your losses.
June 15, 2024
Offline
Since it is an antique, I would get the Cody letter, try to find a period appropriate barrel and swap it out. If you’re patient, one will come up for sale at some point. Easy enough to find a proper barrel band screw and if need be a band. Homestead Parts, Olde Arms of Idaho, Poppers, eBay, plus many other sites are there with a host of parts.
Looking forward to seeing some pictures.
March 8, 2023
Offline
Guys,

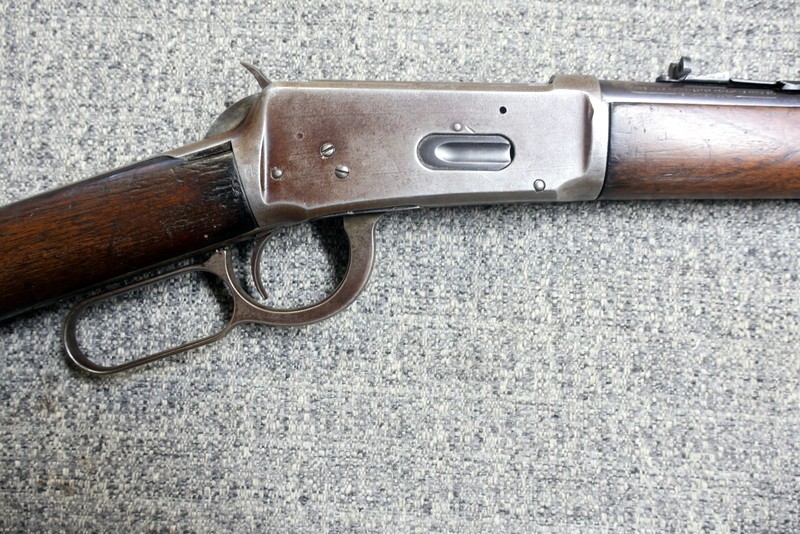

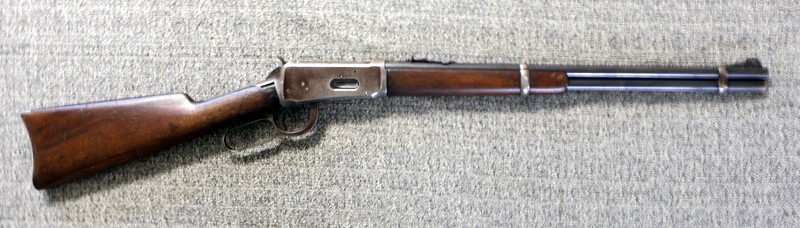

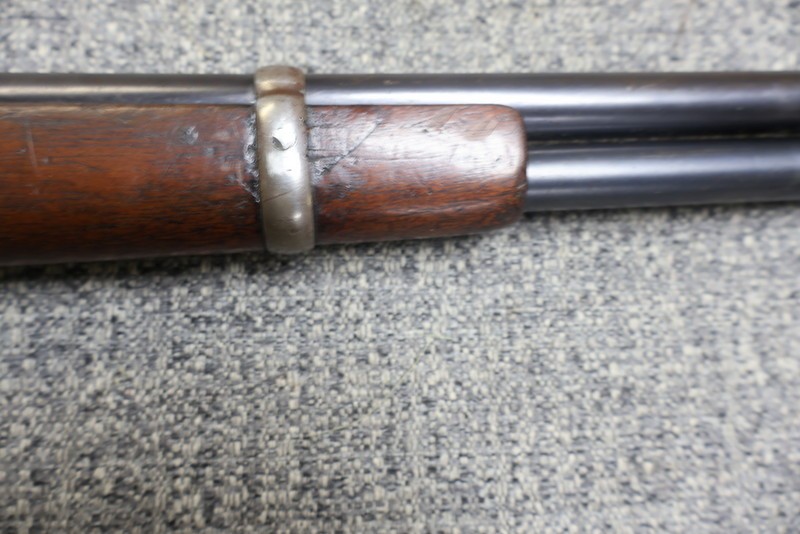

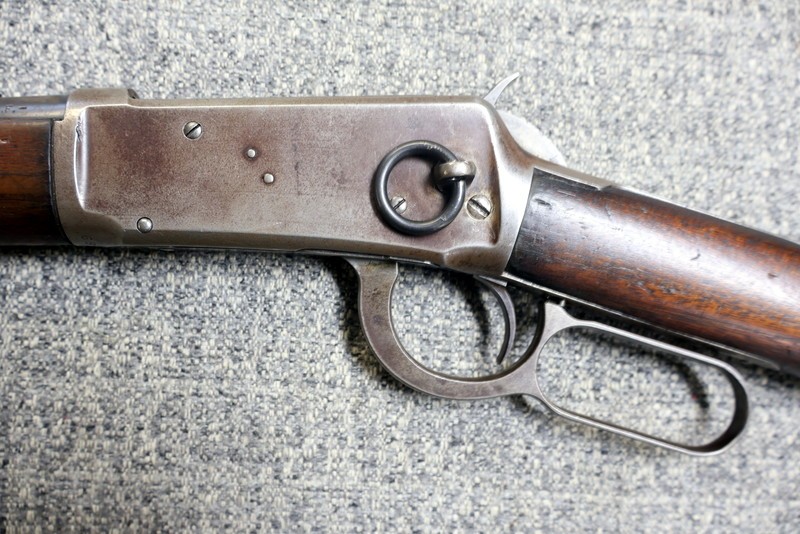

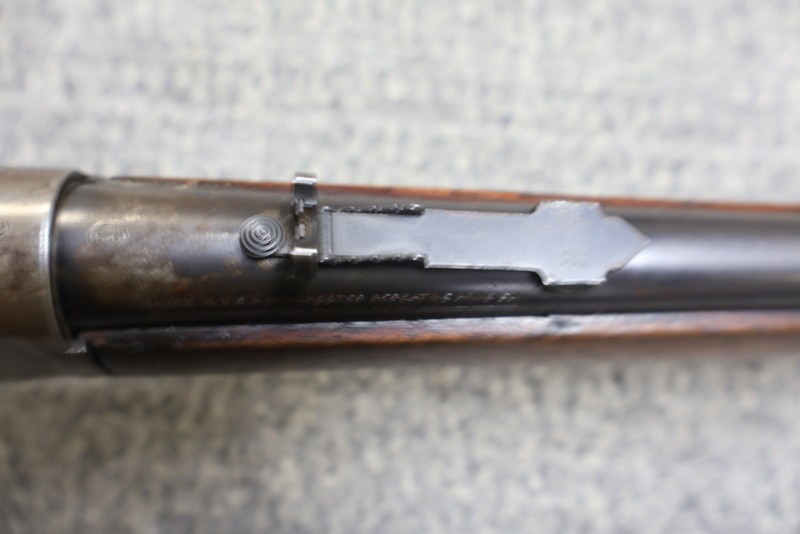

Here are some photo’s of the carbine.
Rob
Hi
June 15, 2024
Offline
Robert,
That doesn’t look too bad, excluding the barrel and sights, which are definitely not appropriate for a carbine from 1896. The wood looks a little dented and maybe chipped by the upper tang, but if it’s original wood that’s 129 years old, a few imperfections are good in my book.
What’s the serial number?

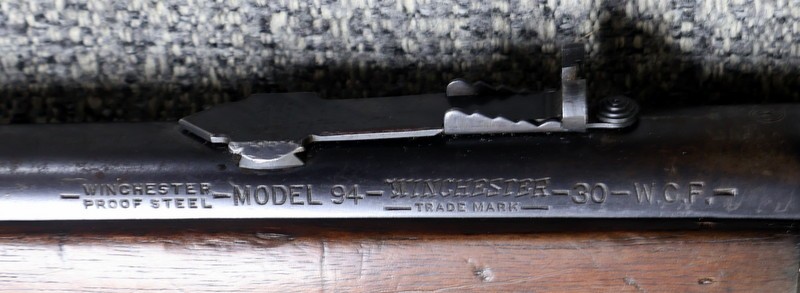

Depending on what the Cody letter (https://centerofthewest.org/explore/firearms/firearms-records/winchester/) says, you’re probably looking for a 20″ Type 1A or Type 1B round barrel in 30 WCF. The markings for these types of barrels should read similar to:
MANUFACTURED BY THE
——WINCHESTER REPEATING ARMS CO NEW HAVEN CONN U.S.A.——
or
——MANUFACTURED BY THE——
——WINCHESTER REPEATING ARMS CO NEW HAVEN CONN U.S.A.——
The lettering on these should be 3/64″ tall, and there are some other periods “.” in there that I didn’t type. If you go this path, forum members can provide actual pictures of the lettering/markings so you can be sure what you’re looking for.
Depending on serial number and caliber, there might be a “Nickel Steel” marking on the left side of the barrel near the rear sight.
Having sourced two barrels for other projects I have worked on, you’re probably looking at $300 for the barrel and $200-$300 to have it attached. There are of course potential issues with timing and headspace when attaching a barrel so you could end up with an antique wall hanger vice a shooter. It really all depends on what you’re trying to do with this gun.
March 8, 2023
Offline
The serial number is 65567 which shows 1899 when checking on WACA dates. I’d like to keep it a shooter rather than a wall hanger. I have worked on other Winchesters in the past, although not a gunsmith, I have disassembled a number of 92’s, 86’s and 94’s over the years. I also have a full machine shop available. What attracted me to this one was the action. I have a few Winchester 1894 src and one from 1905 which is in very good shape. I have been comparing this one with the 1905 one. As you mentioned, the butt stock is checked and has some wood missing at the tang but I wouldn’t do anything with it.
Rob
