Model 9410 disassembly
Avatar
Sam56
Member
WACA Guest
Forum Posts: 80
Member Since:
November 27, 2021
sp_UserOfflineSmall Offline
1
September 4, 2023 - 7:42 am
sp_Permalink sp_Print

Hi again everybody.

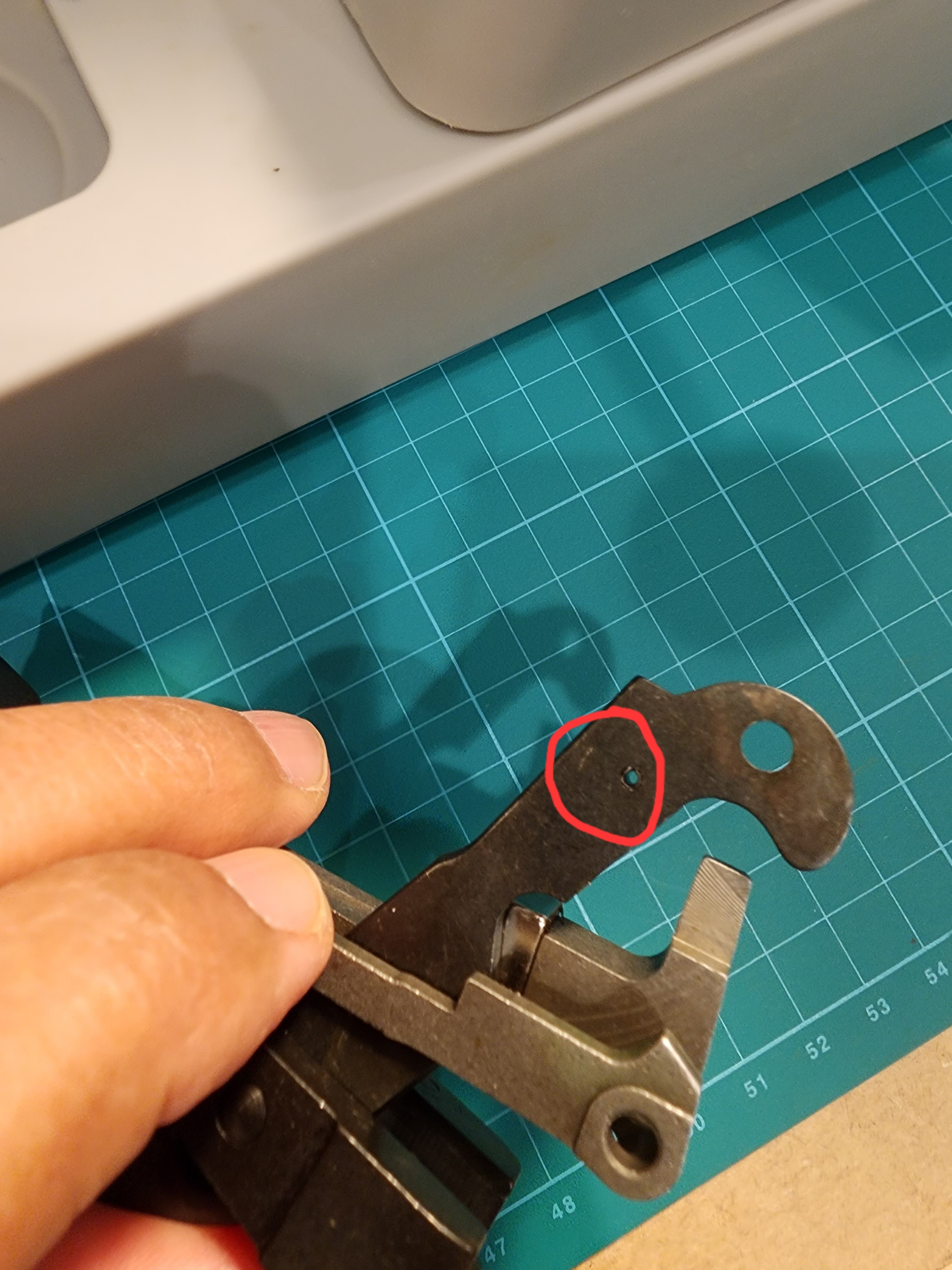

I just purchased new 9410 shut gun and while disassembling for getting to familiarise myself with it and cleaning lt. I found that the hand lever will not come out of the carrier, so I removed them both and found that there is some kind of a pin sticking out of the lever. My guess is that it is a factory machining residue. I will post some photos and appreciate your feedback.

Thanks 20230904_095712.jpgImage Enlarger

20230904_095638.jpgImage Enlarger
20230904_095632.jpgImage Enlarger
20230904_095622.jpgImage Enlarger

Avatar
Chuck
Member
WACA Member
Forum Posts: 5890
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
2
September 4, 2023 - 4:44 pm
sp_Permalink sp_Print

I have no experience with this model but the pin looks like a normal roll pin. There is really no reason to take the gun this far apart for cleaning.  But since you have, very lightly lubricate the moving parts and reassemble it.

Avatar
Sam56
Member
WACA Guest
Forum Posts: 80
Member Since:
November 27, 2021
sp_UserOfflineSmall Offline
3
September 5, 2023 - 6:50 am
sp_Permalink sp_Print

Chuck said
I have no experience with this model but the pin looks like a normal roll pin. There is really no reason to take the gun this far apart for cleaning.  But since you have, very lightly lubricate the moving parts and reassemble it.



Thanks Chuck. Appreciate your help.
