MDL 1895 30 Govt with Lyman Sight
sp_NewTopic Add Topic
Avatar
Member
WACA Member
Forum Posts: 33
Member Since:
August 22, 2005
sp_UserOfflineSmall Offline
1
March 21, 2017 - 4:30 pm
sp_Permalink sp_Print sp_QuotePost

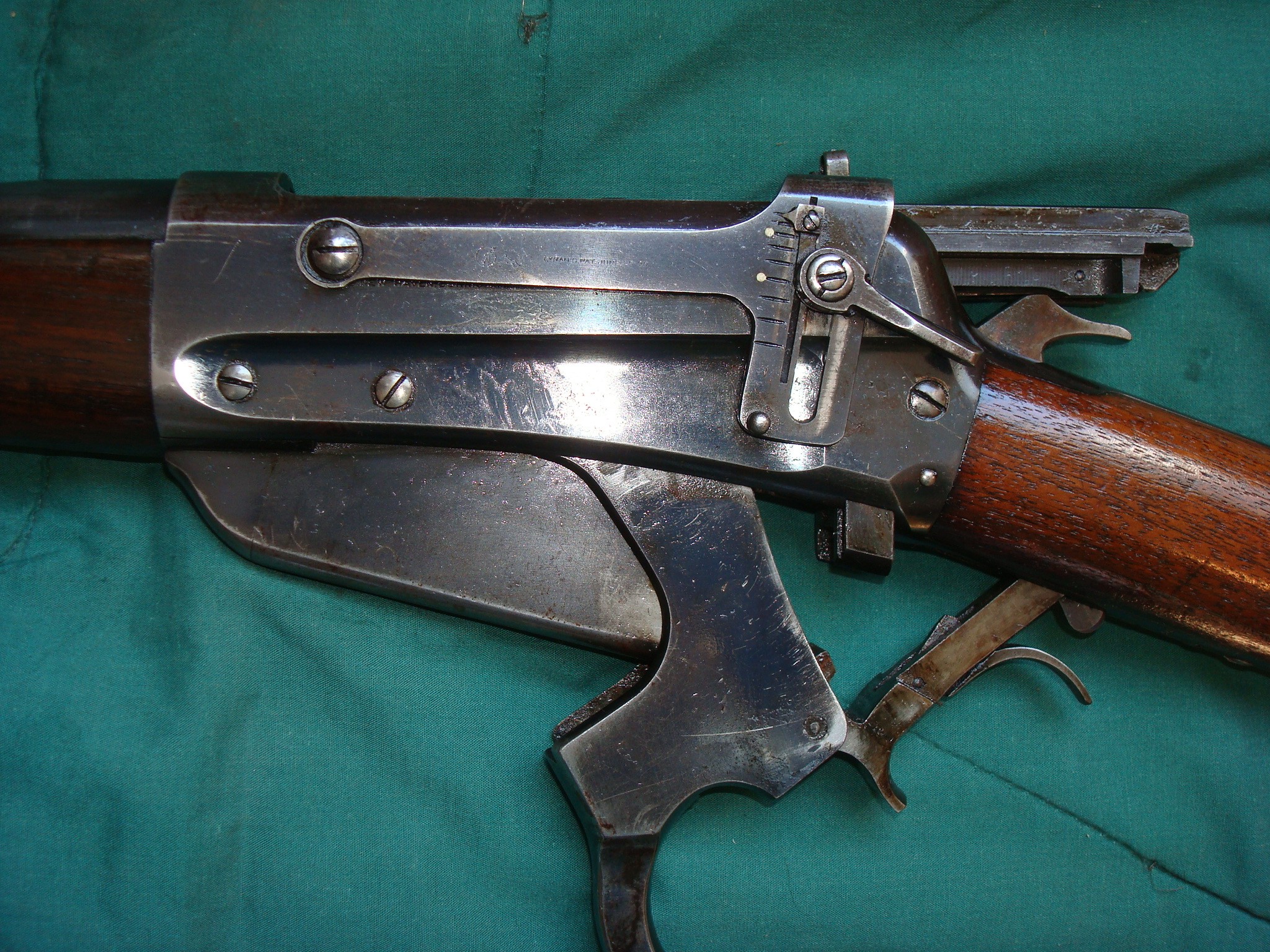

I know it is not the kind of lever that everyone gets excited about but I have been tracking it for years and finally was able to purchase it. I’m not sure if the sight is original to the rifle.  It appears to be, but the barrel does not have a dovetail sight blank which I would think it would have if it left the factory that way.  However, it does not look like a rear sight was ever on the rifle.  The rifle is in the early 28K range  which this site indicates to be a 1900 manufacturing date. Lots of good finish on the rifle.  Believe it or not the owner used to store it in an old WWII BAR leather case.

Regards,

CC

DSC00081.JPGImage EnlargerDSC00082.JPGImage EnlargerDSC00085.JPGImage EnlargerIMG_8500.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
NY
Member
WACA Member
Forum Posts: 6280
Member Since:
November 1, 2013
sp_UserOnlineSmall Online
2
March 21, 2017 - 5:08 pm
sp_Permalink sp_Print sp_QuotePost

The slot-blank could have been lost, so if there’s no “ghost” mark on the barrel where the rear sight elevator would have rested, I’d bet it never had one.  That BAR case did its work well!

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 4969
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
3
March 21, 2017 - 5:51 pm
sp_Permalink sp_Print sp_QuotePost

Nice!

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
Great Basin
Member
WACA Member
Forum Posts: 490
Member Since:
November 27, 2013
sp_UserOfflineSmall Offline
4
March 21, 2017 - 7:01 pm
sp_Permalink sp_Print sp_QuotePost

CPC said
I know it is not the kind of lever that everyone gets excited about but I have been tracking it for years and finally was able to purchase it. I’m not sure if the sight is original to the rifle.  It appears to be, but the barrel does not have a dovetail sight blank which I would think it would have if it left the factory that way.  However, it does not look like a rear sight was ever on the rifle.  The rifle is in the early 28K range  which this site indicates to be a 1900 manufacturing date. Lots of good finish on the rifle.  Believe it or not the owner used to store it in an old WWII BAR leather case.

Regards,

CC

That IS the kind of lever that some of us get excited about.  That is an excellent find of a very nice, original Winchester in a scarce configuration.

Fortunately, the gun is in the letterable range for 1895’s, so Cody would have the records available that should tell you whether the Lyman receiver sight was original.  As long as it still has its original barrel, the lack of a rear sight dovetail is a strong indicator that the receiver sight is original.  By the finish, I’d bet it is the original barrel (proof marks on the barrel of a 1900 manufactured barrel would indicate it’s a replacement).

I’m sure Brad Dunbar would like to have the information on this rifle for his 1895 survey.  BTW, he is particularly fond of this configuration, having at least one like it in his collection.

Avatar
NY
Member
WACA Member
Forum Posts: 6280
Member Since:
November 1, 2013
sp_UserOnlineSmall Online
5
March 21, 2017 - 7:23 pm
sp_Permalink sp_Print sp_QuotePost

Mark Douglas said

 As long as it still has its original barrel, the lack of a rear sight dovetail is a strong indicator that the receiver sight is original….

If it had no slot, it would have to mean than that, but I believe he said no slot blank or filler.  Would seem logical for the barrel to be left un-slotted if a tang or rcvr. sight was ordered, except that, ordinarily, omitting the slot was an extra cost option.

Avatar
Great Basin
Member
WACA Member
Forum Posts: 490
Member Since:
November 27, 2013
sp_UserOfflineSmall Offline
6
March 21, 2017 - 7:33 pm
sp_Permalink sp_Print sp_QuotePost

It looks pretty clear to me in the pictures that there is no rear sight dovetail.

Avatar
NY
Member
WACA Member
Forum Posts: 6280
Member Since:
November 1, 2013
sp_UserOnlineSmall Online
7
March 21, 2017 - 7:40 pm
sp_Permalink sp_Print sp_QuotePost

Mark Douglas said
It looks pretty clear to me in the pictures that there is no rear sight dovetail.

Believe you’ll see it if you enlarge the photo.

Avatar
Troutdale, OR
Member
WACA Member
Forum Posts: 1898
Member Since:
June 26, 2013
sp_UserOfflineSmall Offline
8
March 21, 2017 - 7:48 pm
sp_Permalink sp_Print sp_QuotePost

I see the rear sight dovetail as well.  I used to own an 1895 exactly like this one with a blank in the rear sight dovetail along with the Lyman 21 receiver sight. It lettered with that sight configuration.

Don

Avatar
Great Basin
Member
WACA Member
Forum Posts: 490
Member Since:
November 27, 2013
sp_UserOfflineSmall Offline
9
March 21, 2017 - 9:30 pm
sp_Permalink sp_Print sp_QuotePost

My eyes aren’t what they used to be.  I enlarged it the first time and didn’t see it, but when I enlarged it AND put on my glasses – there it is.  Factory records should clear up the mystery.

Avatar
Location: 32000' +
Moderator
Moderator
Forum Posts: 2110
Member Since:
July 17, 2012
sp_UserOfflineSmall Offline
10
March 21, 2017 - 9:41 pm
sp_Permalink sp_Print sp_QuotePost

Beautiful 1895!  Love it, thanks for posting the pictures!

WACA Life Member #6284 - Specializing in Pre-64 Winchester .22 Rimfire

http://rimfirepublications.com/

Avatar
Moderator
Moderator
Forum Posts: 956
Member Since:
December 30, 2011
sp_UserOfflineSmall Offline
11
March 21, 2017 - 10:07 pm
sp_Permalink sp_Print sp_QuotePost

Hey that’s a pretty nice rifle!  It looks like it could have a lot of case color on the hammer and link yet too.  I thought for a second it didn’t have a rear barrel dovetail also until I looked really close.  Really straining, but it looks like it has a bead front sight also.  If you want, email me some info about it and the full s/n and I’ll have it searched for you if you aren’t a CFM member.  95 collectors have to stick together….

[email protected]

Thanks for posting the pictures.

Regards

Brad Dunbar

http://1895book.com/

Avatar
Member
WACA Member
Forum Posts: 33
Member Since:
August 22, 2005
sp_UserOfflineSmall Offline
12
March 21, 2017 - 10:50 pm
sp_Permalink sp_Print sp_QuotePost

Thank you all for the generous comments.  I am very sorry about the confusion regarding the dove tail for the sight, it has one.  There is no proof mark on the barrel.  I’ve posted a few more pictures that will hopefully answer any more questions that you have. Thank you Brad for the offer, email to follow.

Regards,

CC

DSC00087.JPGImage EnlargerDSC00090.JPGImage EnlargerDSC00098.JPGImage EnlargerDSC00102.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Member
WACA Guest
Forum Posts: 1118
Member Since:
May 24, 2012
sp_UserOfflineSmall Offline
13
March 21, 2017 - 10:55 pm
sp_Permalink sp_Print sp_QuotePost

Brad Dunbar said
Hey that’s a pretty nice rifle!  It looks like it could have a lot of case color on the hammer and link yet too.  I thought for a second it didn’t have a rear barrel dovetail also until I looked really close.  Really straining, but it looks like it has a bead front sight also.  If you want, email me some info about it and the full s/n and I’ll have it searched for you if you aren’t a CFM member.  95 collectors have to stick together….

[email protected]

Thanks for posting the pictures.

WTG, Brad!

James

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 4969
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
14
March 21, 2017 - 11:21 pm
sp_Permalink sp_Print sp_QuotePost

Cody records should be interesting. I once thought the 1895 was poorly balanced and odd-looking but no longer feel that way. I like my 95’s but the rear sight is too small for me to use, hope to find a nice one like yours some day. Can’t wait to get home so I can see it on my real ‘puter.

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
NY
Member
WACA Member
Forum Posts: 6280
Member Since:
November 1, 2013
sp_UserOnlineSmall Online
15
March 21, 2017 - 11:41 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

TXGunNut said
I like my 95’s but the rear sight is too small for me to use, hope to find a nice one like yours some day.

Don’t risk permanent eye damage by straining to use that sight, and don’t wait for “some day”!  Here you go:  http://www.ebay.com/itm/LYMAN-NO-38-RECEIVER-SIGHT-WINCHESTER-MODEL-1895-EXCELLENT-COMPLETE-/182465645647?hash=item2a7bcccc4f:g:6tQAAOSwSlBYr2G1

OK, a little high, but instant gratification ain’t cheap.

Avatar
Member
WACA Guest
Forum Posts: 216
Member Since:
March 19, 2014
sp_UserOfflineSmall Offline
16
March 23, 2017 - 1:52 am
sp_Permalink sp_Print sp_QuotePost

A factory letter would seem called for. Many Winchester rifles mounted with tang or receiver peeps were also ordered with barrel sights. A friend of mine has a beauty 1886 in .33 Win. with Lyman 21 as well a Lyman no.6 folding leaf rear sight.

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 4969
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
17
March 23, 2017 - 2:31 am
sp_Permalink sp_Print sp_QuotePost

clarence said

TXGunNut said
I like my 95’s but the rear sight is too small for me to use, hope to find a nice one like yours some day.

Don’t risk permanent eye damage by straining to use that sight, and don’t wait for “some day”!  Here you go:  http://www.ebay.com/itm/LYMAN-NO-38-RECEIVER-SIGHT-WINCHESTER-MODEL-1895-EXCELLENT-COMPLETE-/182465645647?hash=item2a7bcccc4f:g:6tQAAOSwSlBYr2G1

OK, a little high, but instant gratification ain’t cheap.

A “little” high? Had no idea. I don’t think the receiver on my 95 is D&T’d for the Lyman sight…unless I’m missing something.

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
NY
Member
WACA Member
Forum Posts: 6280
Member Since:
November 1, 2013
sp_UserOnlineSmall Online
18
March 23, 2017 - 2:44 am
sp_Permalink sp_Print sp_QuotePost

mike webb said
A factory letter would seem called for. Many Winchester rifles mounted with tang or receiver peeps were also ordered with barrel sights. A friend of mine has a beauty 1886 in .33 Win. with Lyman 21 as well a Lyman no.6 folding leaf rear sight.

The prevailing principle then was that “the customer is always right”…even when he asks for something stupid.

Avatar
NY
Member
WACA Member
Forum Posts: 6280
Member Since:
November 1, 2013
sp_UserOnlineSmall Online
19
March 23, 2017 - 2:59 am
sp_Permalink sp_Print sp_QuotePost


TXGunNut said

I don’t think the receiver on my 95 is D&T’d for the Lyman sight…unless I’m missing something.

Only one extra hole was required–the one for the screw that controlled the elevation adjustment.

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 4969
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
20
March 23, 2017 - 3:14 am
sp_Permalink sp_Print sp_QuotePost

clarence said

Only one extra hole was required–the one for the screw that controlled the elevation adjustment.

Saw that, was wondering if the front hole was somehow different. Wasn’t clear on how it secured at the top rear of the receiver either. I’m thinking my “shooter” 1895 is too nice a gun to alter, hoping someday I’ll stumble over one that’s factory equipped with the Lyman sight. The way my luck is running it won’t be long. Wink

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
